ZRE186H-BHFNP (2012)

Toyota Auris

Production Aug 2012 - Mar 2015
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1208- )ZRE186

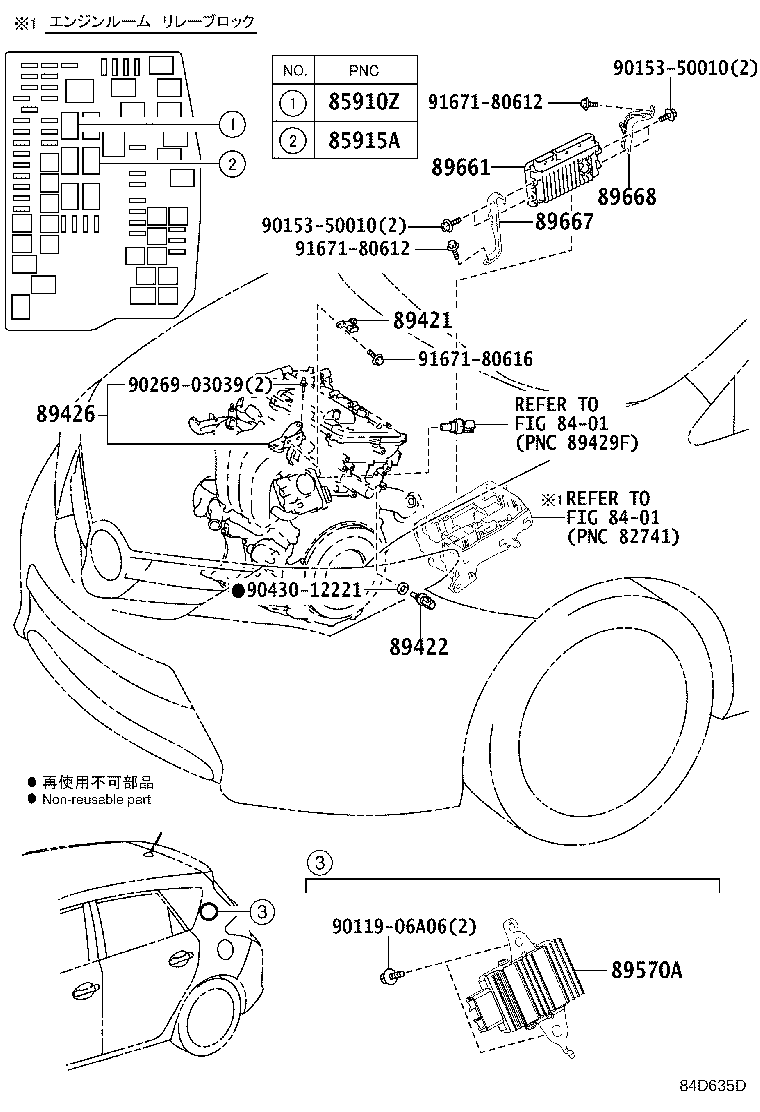

Click highlighted areas on diagram

diagram 8401 8401 85910Z 85915A 89421 89422 89426 89570A 89661 89667 89668 9011906A06 9015350010 9015350010 9026903039 9043012221 9167180612 9167180612 9167180616
Part # Description Qty Price
85910Z - RELAY, INJECTION (FOR EFI)
90987-02027

ZRE186

 1
85915A - RELAY, MAIN
90987-02027

NZE18#,ZRE186

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

NZE181,ZRE186

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NZE18#,ZRE186

 1
89426 - BRACKET, VACUUM SENSOR
89426-13020

ZRE186

 1
89570A - COMPUTER ASSY, FUEL PUMP CONTROL
89570-12370

ZRE186

 1
89661 - COMPUTER, ENGINE CONTROL
89661-12R60

ZRE186..RS

FUJITSU TEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12340

NZE18#,ZRE186

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12270

NZE18#,ZRE186

 1
Common parts
90119-06A06
90153-50010
90269-03039
90430-12221
91671-80612
91671-80616
Linked diagrams
8401
