ZRE186H-BHFNP (2012)
Toyota Auris

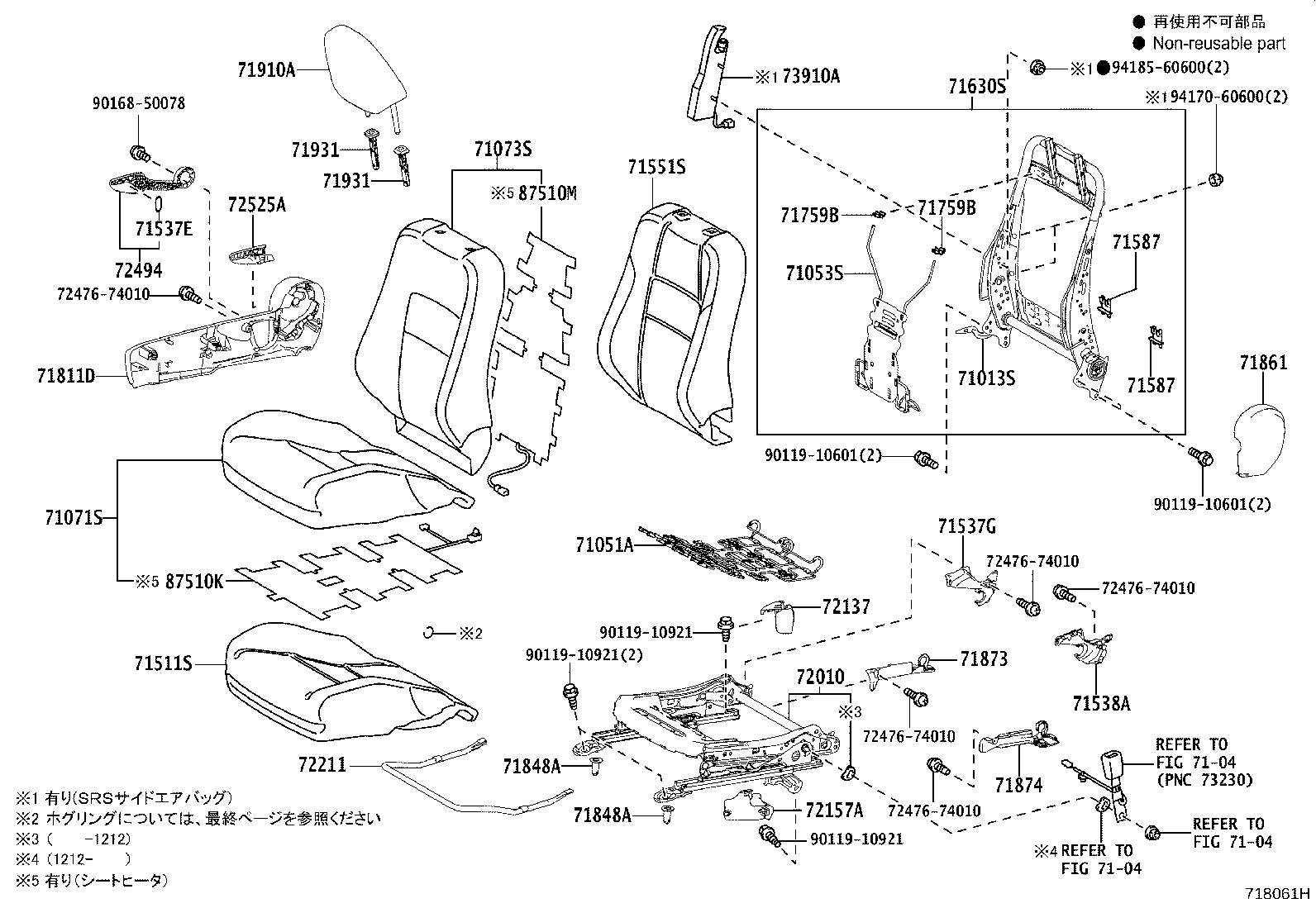

ILLUST NO. 1 OF 2(1208- )
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-12720 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71013-12750 |
ZRE186..RS |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-12090 |
ZRE186..RS |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-52050 |
NZE18#,ZRE186 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-12X60C2 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71071-1AA50C0 |
ZRE186..RS BLACK,TRIM2# |
1 | ||
| 71071-12X60C5 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71071-1AA50C3 |
ZRE186..RS BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-12Y70C3 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71073-12Y60C2 |
ZRE186..RS BLACK,TRIM2# |
1 | ||
| 71073-12Y70C6 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71073-12Y60C5 |
ZRE186..RS BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12C20 |
ZRE186..RS |
1 | ||
| 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 | ||||
| 71537-47040 |
NZE18#,ZRE186 |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-52100C0 |
NZE18#,ZRE186 BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-52050C0 |
NZE18#,ZRE186 BLACK,TRIM2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12D70 |
ZRE186..RS |
1 | ||
| 71551-12D90 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
NZE18#,ZRE186 |
4 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
NZE18#,ZRE186 |
4 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-12850 |
ZRE186..RS |
1 | ||
| 71630-12810 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47010 |
NZE18#,ZRE186 |
4 | ||
| 71759-47011 |
NZE18#,ZRE186 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47010 |
NZE18#,ZRE186 |
4 | ||
| 71759-47011 |
NZE18#,ZRE186 |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12530C0 |
NZE18#,ZRE186 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71811-12560C0 |
NZE18#,ZRE186 BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-12020 |
NZE18#,ZRE186 |
2 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-12020 |
NZE18#,ZRE186 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12350C0 |
NZE18#,ZRE186 BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
NZE18#,ZRE186 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
NZE18#,ZRE186 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12G50C3 |
ZRE186..RS BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020C0 |
NZE18#,ZRE186 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
NZE18#,ZRE186 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020C0 |
NZE18#,ZRE186 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
NZE18#,ZRE186 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-12810 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 72010-12800 |
ZRE186..RS |
1 | ||
| 72010-12811 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 72010-12801 |
ZRE186..RS |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-12120C0 |
NZE18#,ZRE186 BLACK |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12210C0 |
NZE18#,ZRE186 BLACK |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-12320 |
NZE18#,ZRE186 |
2 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-12070C0 |
NZE18#,ZRE186 BLACK,TRIM2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NZE18#,ZRE186 BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-12090 |
NZE18#,ZRE186 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 73910-12091 |
NZE18#,ZRE186 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| Common parts | ||||
| 72476-74010 | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 90168-50078 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

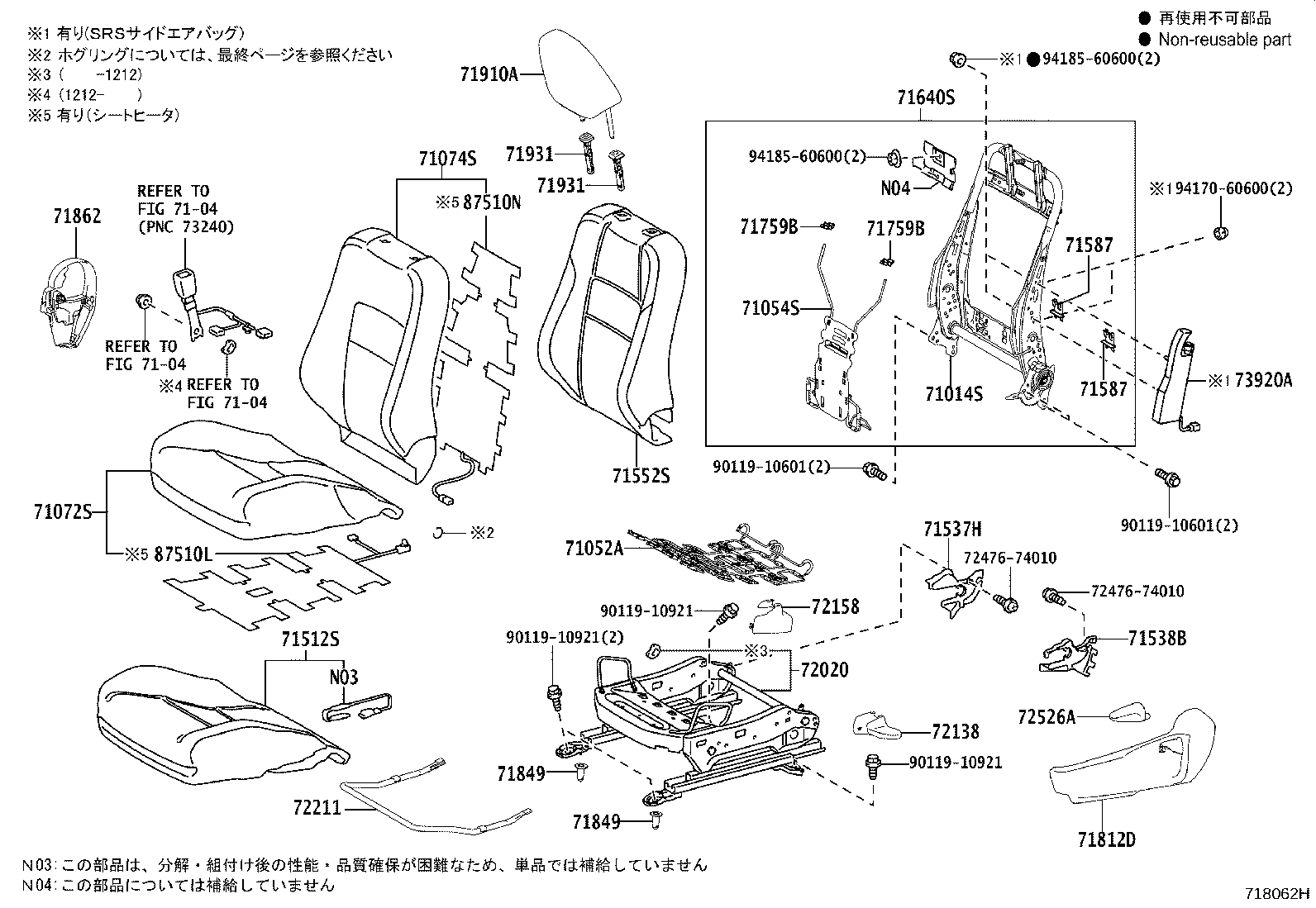

ILLUST NO. 2 OF 2(1208- )
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-12580 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71014-12610 |
ZRE186..RS |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-12090 |
ZRE186..RS |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-52050 |
NZE18#,ZRE186 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-12Y10C0 |
ZRE186..RS BLACK,TRIM2# |
1 | ||
| 71072-12V00C2 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71072-12V00C5 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71072-12Y10C3 |
ZRE186..RS BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-12Y00C3 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71074-12X90C2 |
ZRE186..RS BLACK,TRIM2# |
1 | ||
| 71074-12Y00C6 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71074-12X90C5 |
ZRE186..RS BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-12150 |
ZRE186..RS |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52110C0 |
NZE18#,ZRE186 BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52060C0 |
NZE18#,ZRE186 BLACK,TRIM2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-12670 |
ZRE186..RS |
1 | ||
| 71552-12690 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
NZE18#,ZRE186 |
4 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
NZE18#,ZRE186 |
4 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-12660 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 71640-12700 |
ZRE186..RS |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47010 |
NZE18#,ZRE186 |
4 | ||
| 71759-47011 |
NZE18#,ZRE186 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47010 |
NZE18#,ZRE186 |
4 | ||
| 71759-47011 |
NZE18#,ZRE186 |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12500C0 |
NZE18#,ZRE186 BLACK,TRIM2# |
1 | ||
| 71812-12460C0 |
NZE18#,ZRE186 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),BLACK,TRIM2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-12020 |
NZE18#,ZRE186 |
2 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-12020 |
NZE18#,ZRE186 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12350C0 |
NZE18#,ZRE186 BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12G50C3 |
ZRE186..RS BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020C0 |
NZE18#,ZRE186 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
NZE18#,ZRE186 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020C0 |
NZE18#,ZRE186 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
NZE18#,ZRE186 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-12760 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 72020-12750 |
ZRE186..RS |
1 | ||
| 72020-12751 |
ZRE186..RS |
1 | ||
| 72020-12761 |
ZRE186..RS SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-12190C0 |
NZE18#,ZRE186 BLACK |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12190C0 |
NZE18#,ZRE186 BLACK |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-12320 |
NZE18#,ZRE186 |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-52040C0 |
NZE18#,ZRE186 BLACK,TRIM2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-12080 |
NZE18#,ZRE186 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 73920-12081 |
NZE18#,ZRE186 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| Common parts | ||||
| 72476-74010 | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

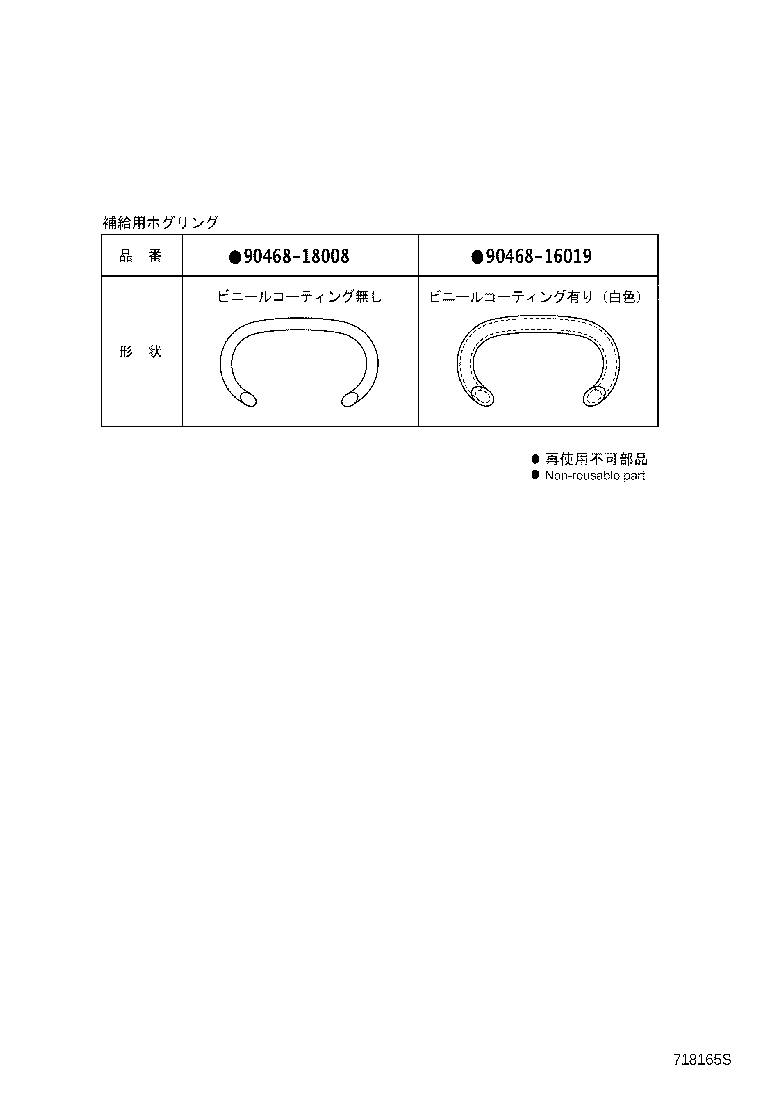

(1208- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
