ZRE186H-BHFNP (2012)

Toyota Auris

Production Aug 2012 - Mar 2015
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1208- )RS

Click highlighted areas on diagram

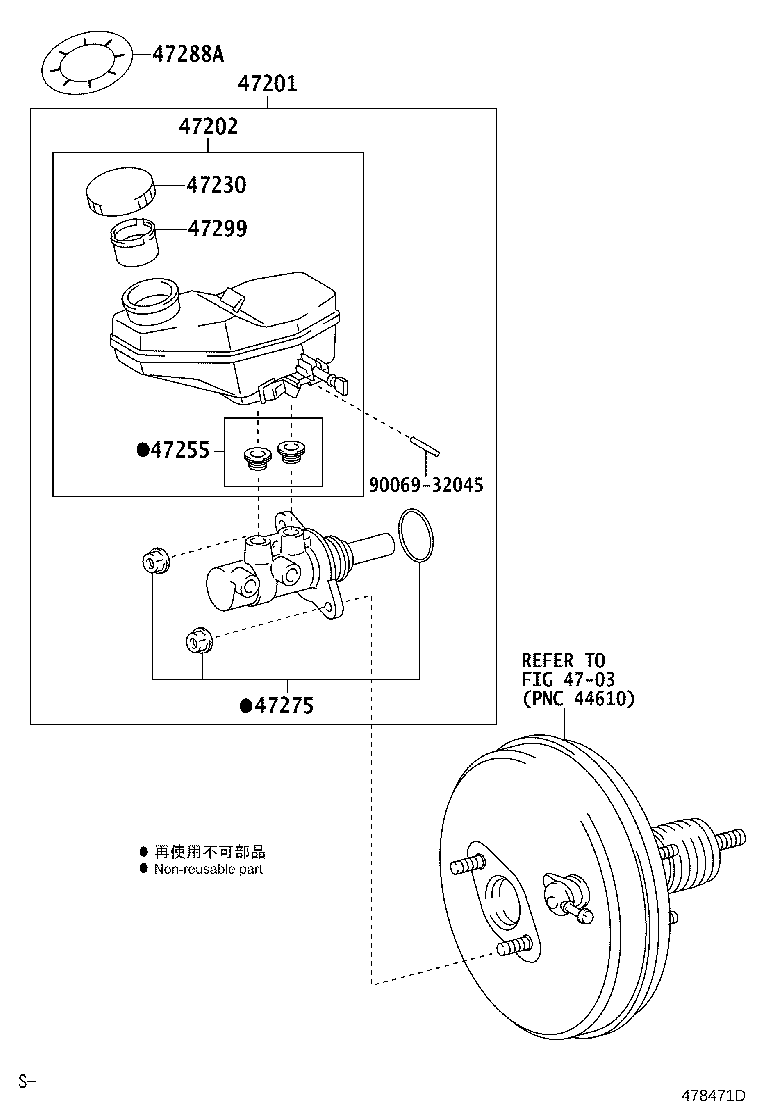

diagram 4703 47201 47202 47230 47255 47275 47288A 47299 9006932045
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-09700

ZRE186..RS

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-09170

ZRE186..RS

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-02220

ZRE186..RS

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-09040

ZRE186..RS

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-09010

ZRE186..RS

 1
47288A - LABEL, BRAKE FLUID NOTICE
47288-12010

ZRE186..RS

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-02160

ZRE186..RS

 1
Common parts
90069-32045
Linked diagrams
4703
