ZRE154H-BHXEP (2009)
Toyota Auris
Production
Oct 2009
-
Aug 2012
Engine
2ZRFAE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0910- )ZRE15#

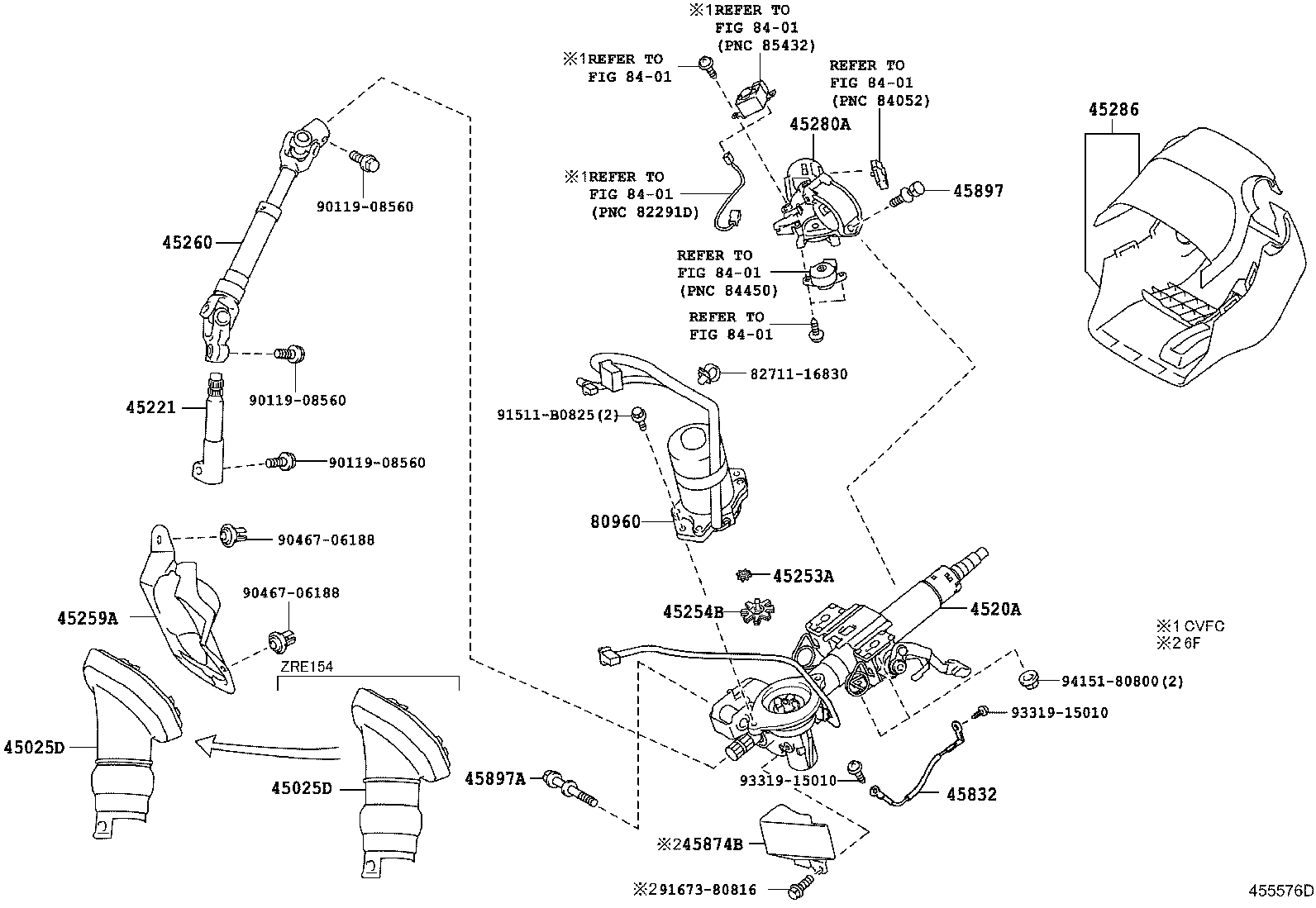

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12290 |
NZE154,ZRE154 |
1 | ||
| 45025-12290 |
NZE154,ZRE154 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12290 |
NZE154,ZRE154 |
1 | ||
| 45025-12290 |
NZE154,ZRE154 |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-12010 |
ZRE15# |
1 | ||
| 4520A-12010 |
ZRE15# |
1 | ||
| 4520A-12010 |
ZRE15# 始動方式−ﾌﾟｯｼｭﾎﾞﾀﾝ式(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 4520A-12020 |
ZRE15# |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-12340 |
NZE154,ZRE154 |
1 | ||
| 45221-12340 |
NZE154,ZRE154 |
1 | ||
| 45253A - SPACER, ELECTRIC POWER STEERING MOTOR SHAFT | ||||
| 45253-28130 |
ZRE15# |
1 | ||
| 45253-28130 |
ZRE15# |
1 | ||
| 45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT | ||||
| 45254-28040 |
ZRE15# |
1 | ||
| 45254-28040 |
ZRE15# |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-12130 |
NZE154,ZRE154 |
1 | ||
| 45259-12060 |
NZE154,ZRE154 |
1 | ||
| 45259-12060 |
NZE154,ZRE154 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12540 |
NZE154,ZRE154 |
1 | ||
| 45260-12540 |
NZE154,ZRE154 |
1 | ||
| 45260-12720 |
NZE154,ZRE154 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-42130 |
ZRE15#..CVFC |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-12974B0 |
ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-12976B0 |
ZRE15#..CVFC DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-12974B0 |
ZRE15#..CVFC 始動方式−ﾌﾟｯｼｭﾎﾞﾀﾝ式(ｽﾏｰﾄｴﾝﾄﾘ),DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-12974B0 |
ZRE15#..CVFC DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-12983B0 |
ZRE15#..CVFC DK.GRAY,TRIM1#,4# |
1 | ||
| 45832 - CABLE, TILT STEERING SUPPORT BOND | ||||
| 45832-21010 |
ZRE15# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NZE15#,ZRE15# |
1 | ||
| 45897-12020 |
NZE15#,ZRE15# |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
NZE15#,ZRE15# |
1 | ||
| 45897-42010 |
NZE15#,ZRE15# |
1 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-12100 |
ZRE15# |
1 | ||
| 80960-12150 |
ZRE15# |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 90119-08560 | ||||
| 90467-06188 | ||||
| 91511-B0825 | ||||
| 91673-80816 | ||||
| 93319-15010 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
