ZRE154H-BHXEK (2006)

Toyota Auris

Production Oct 2006 - Dec 2008
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

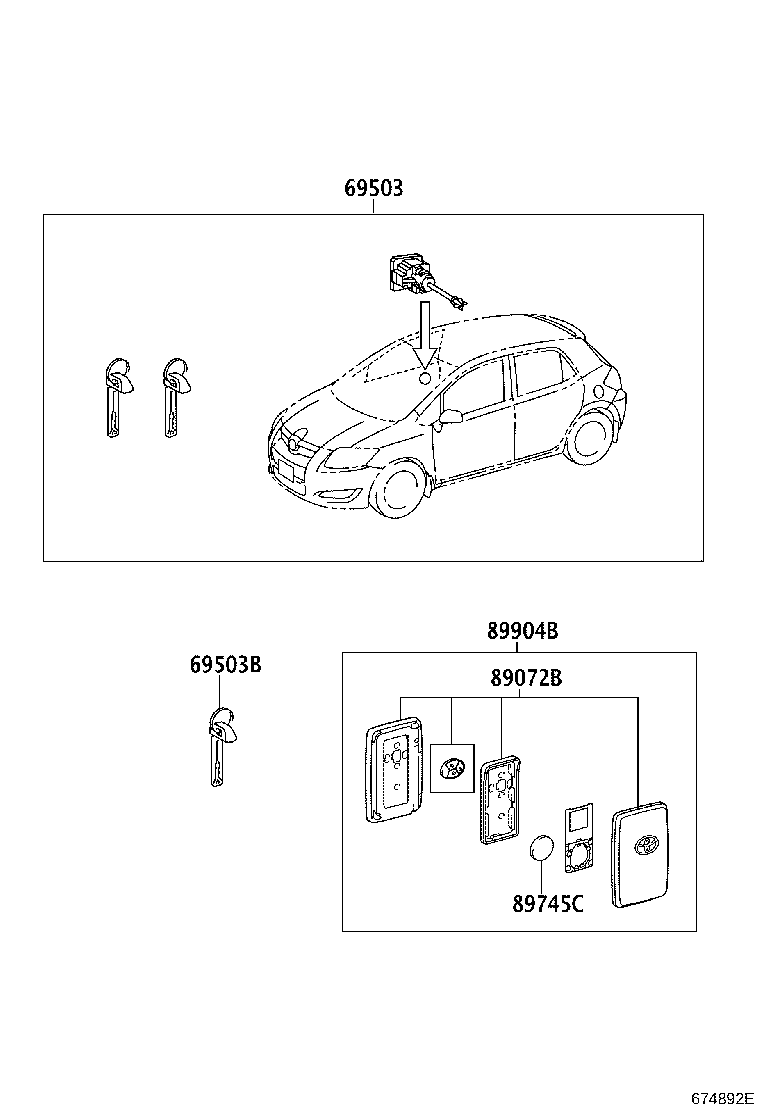

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 69503 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-5C160

ZRE15#

 1
69503B - KEY, CUT
69515-52110

ZRE15#

ﾏｽﾀｰｷｰ,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-12450

ZRE15#

 1
89745C - BATTERY, TRANSMITTER
89745-52020

ZRE15#

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-12080

ZRE15#

 1

(0610- )

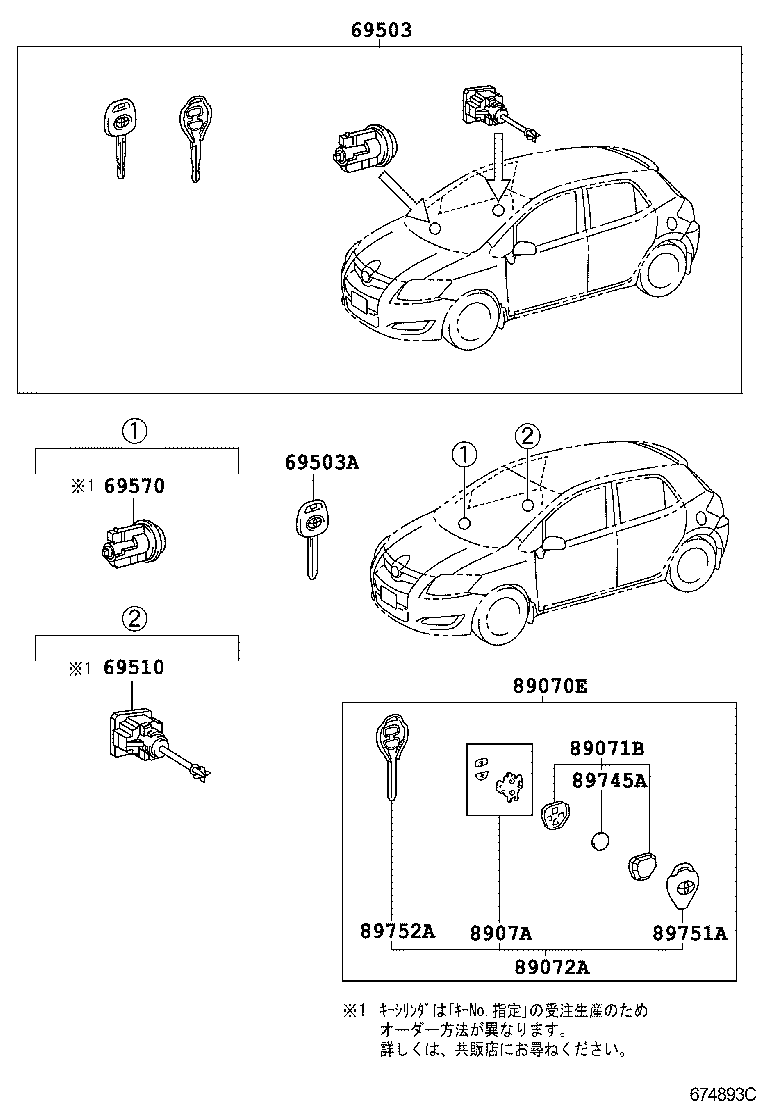

Click highlighted areas on diagram

ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 69503 69503A 69510 69570 89070E 89071B 89072A 8907A 89745A 89751A 89752A
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-5C160

ZRE15#

 1
