ZRE154H-BHXEK (2006)

Toyota Auris

Production Oct 2006 - Dec 2008
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

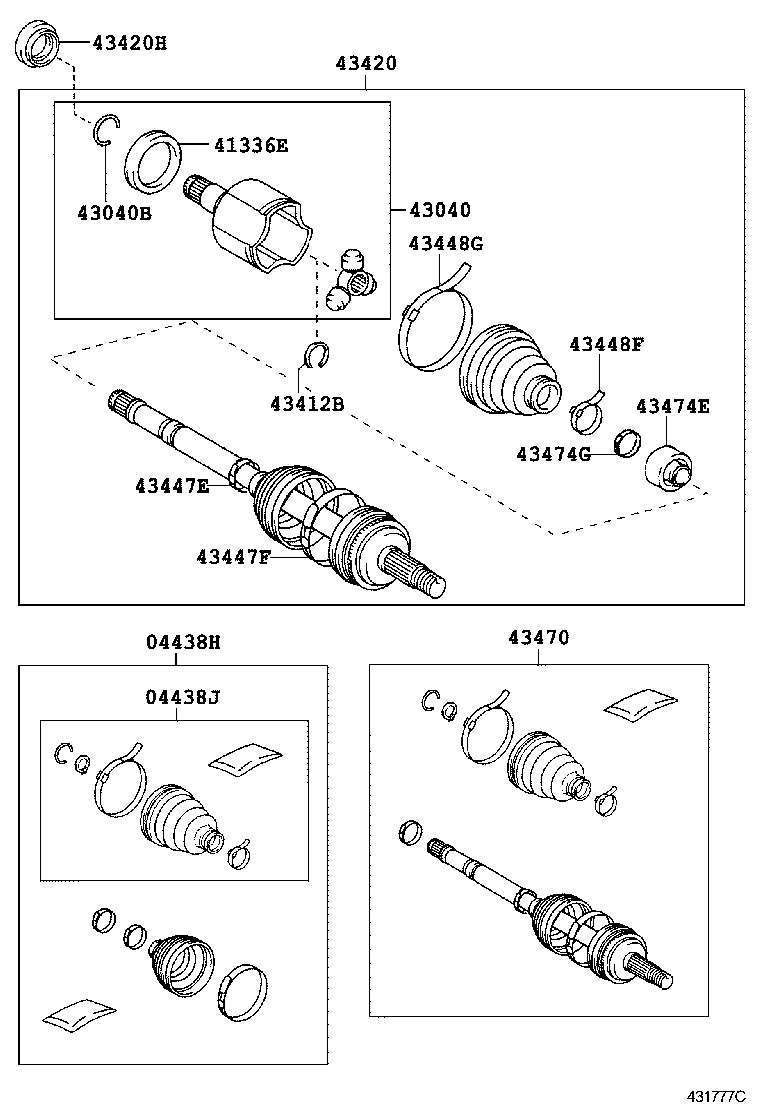

ILLUST NO. 2 OF 3(0610- )

Click highlighted areas on diagram

ﾚﾌﾄ

diagram 04438H 04438J 41336E 43040 43040B 43412B 43420 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04427-12540

ZRE15#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-12310

NZE154,ZRE15#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12060

NZE154,ZRE15#

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-12120

NZE154,ZRE15#

 1
43040B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH)
90521-27005

NZE154,ZRE15#

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-12070

NZE154,ZRE15#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-12700

ZRE15#

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35054

NZE154,ZRE15#

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12230

ZRE15#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12240

ZRE15#

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12230

NZE154,ZRE15#

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12180

NZE154,ZRE15#

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-80134

ZRE15#

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-12170

NZE15#,ZRE15#

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

NZE15#,ZRE15#

 1

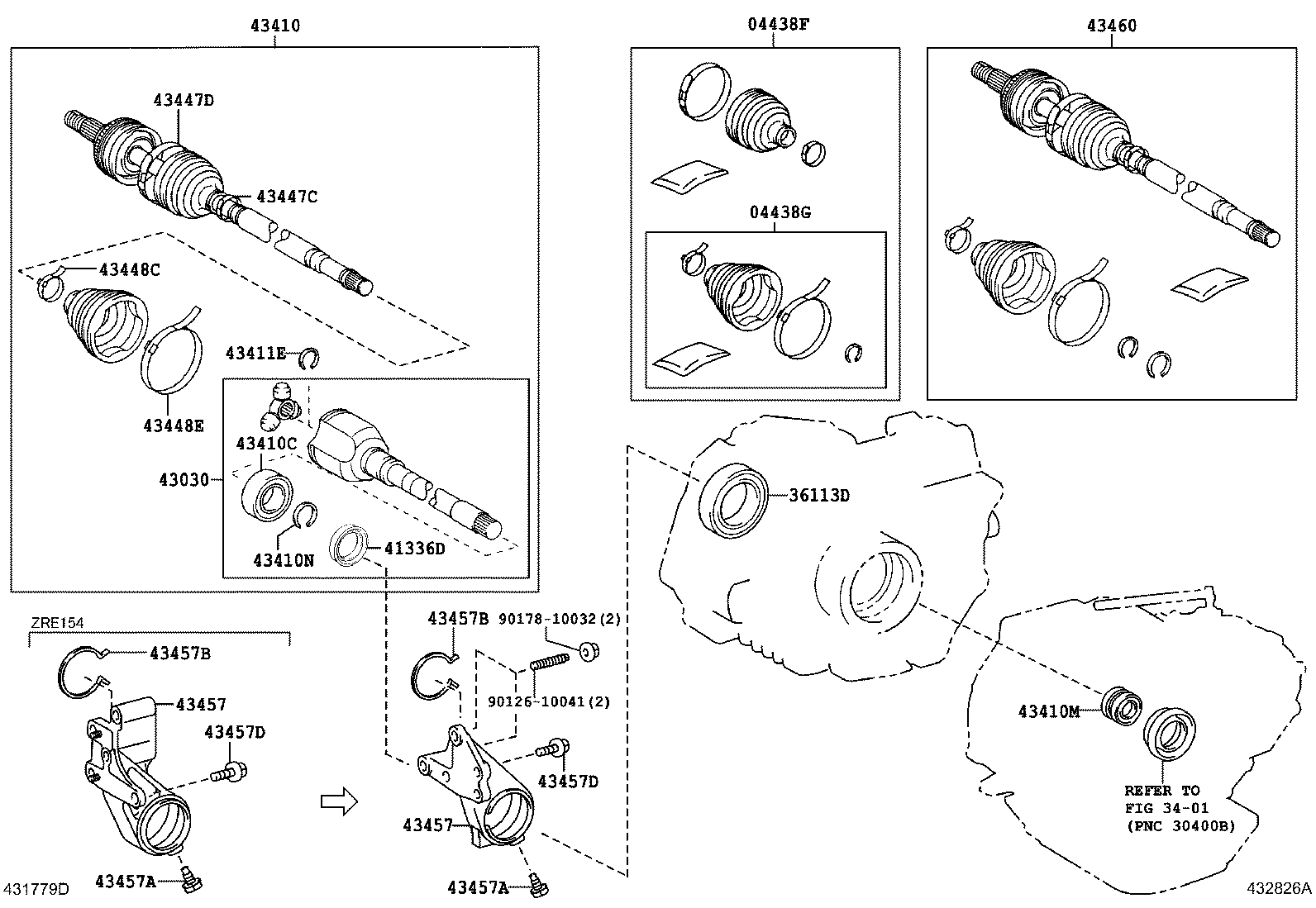

ILLUST NO. 1 OF 3(0610- )NZE154,ZRE154

Click highlighted areas on diagram

ﾗｲﾄ

diagram 04438F 04438G 3401 36113D 41336D 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457 43457A 43457A 43457B 43457B 43457D 43457D 43460 9012610041 9017810032
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-12540

ZRE154

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-12310

NZE154,ZRE15#

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-35056

NZE154,ZRE154

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-52020

NZE154,ZRE154

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-12130

NZE154,ZRE154

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-12780

ZRE154

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

NZE154,ZRE154

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-28003

NZE154,ZRE154

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

NZE154,ZRE154

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-12070

NZE154,ZRE15#

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12230

ZRE15#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12240

ZRE15#

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12230

NZE154,ZRE15#

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12180

NZE154,ZRE15#

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-12070

ZRE154

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-12070

ZRE154

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

NZE154,ZRE154

*10−1.25PX19.8−8.3

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

NZE154,ZRE154

*10−1.25PX19.8−8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

NZE154,ZRE154

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

NZE154,ZRE154

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

ZRE154

 3
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

ZRE154

 3
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-80134

ZRE154

 1
Common parts
90126-10041
90178-10032
Linked diagrams
3401
