ZRE152H-BHXEP (2009)

Toyota Auris

Production Oct 2009 - Aug 2012
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0910- )

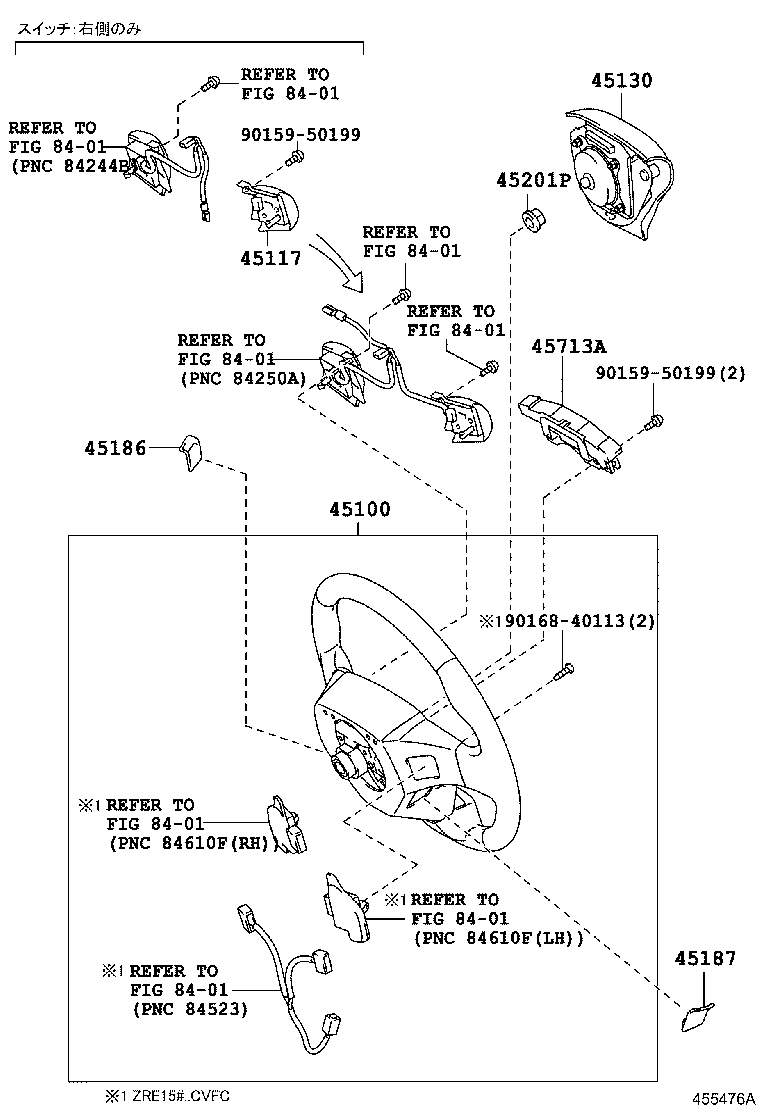

Click highlighted areas on diagram

3-ｽﾎﾟｰｸ

diagram 45100 45117 45130 45186 45187 45201P 45713A 8401 8401 8401 8401 8401 8401 8401 8401 9015950199 9015950199 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-12D50B0

NZE15#,ZRE15#

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#,4#

 1
45100-12D60B0

ZRE15#

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#

 1
45100-12D60B0

NZE15#,ZRE15#

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1#,4#

 1
45100-12D60B0

ZRE15#

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,Sﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#

 1
45100-12F00B0

ZRE15#..CVFC

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−3本ｽﾎﾟｰｸ,革巻,DK.GRAY,TRIM1#,4#

 1
45100-12E80B0

ZRE15#..CVFC

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#,4#

 1
45100-12F00B0

ZRE15#..CVFC

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−3本ｽﾎﾟｰｸ,革巻,有り(ｽﾃｱﾘﾝｸﾞXｲｯﾁ),DK.GRAY,TRIM1#,4#

 1
45117 - ORNAMENT, STEERING WHEEL, NO.2
45117-12020

NZE15#,ZRE15#

 1
45130 - BUTTON ASSY, HORN
45130-12A50B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45130-12C40B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45130-12A60B0

ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-12020B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45186-42030B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-42020B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45187-12020B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

NZE15#,ZRE15#

 1
90179-12071

NZE15#,ZRE15#

 1
45713A - DAMPER, STEERING SHAKE
45713-12110

NZE15#,ZRE15#

 1
45713-12080

NZE15#,ZRE15#

 1
Common parts
90159-50199
90168-40113
Linked diagrams
8401
