ZRE152H-BHXEK (2008)

Toyota Auris

Production Dec 2008 - Oct 2009
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

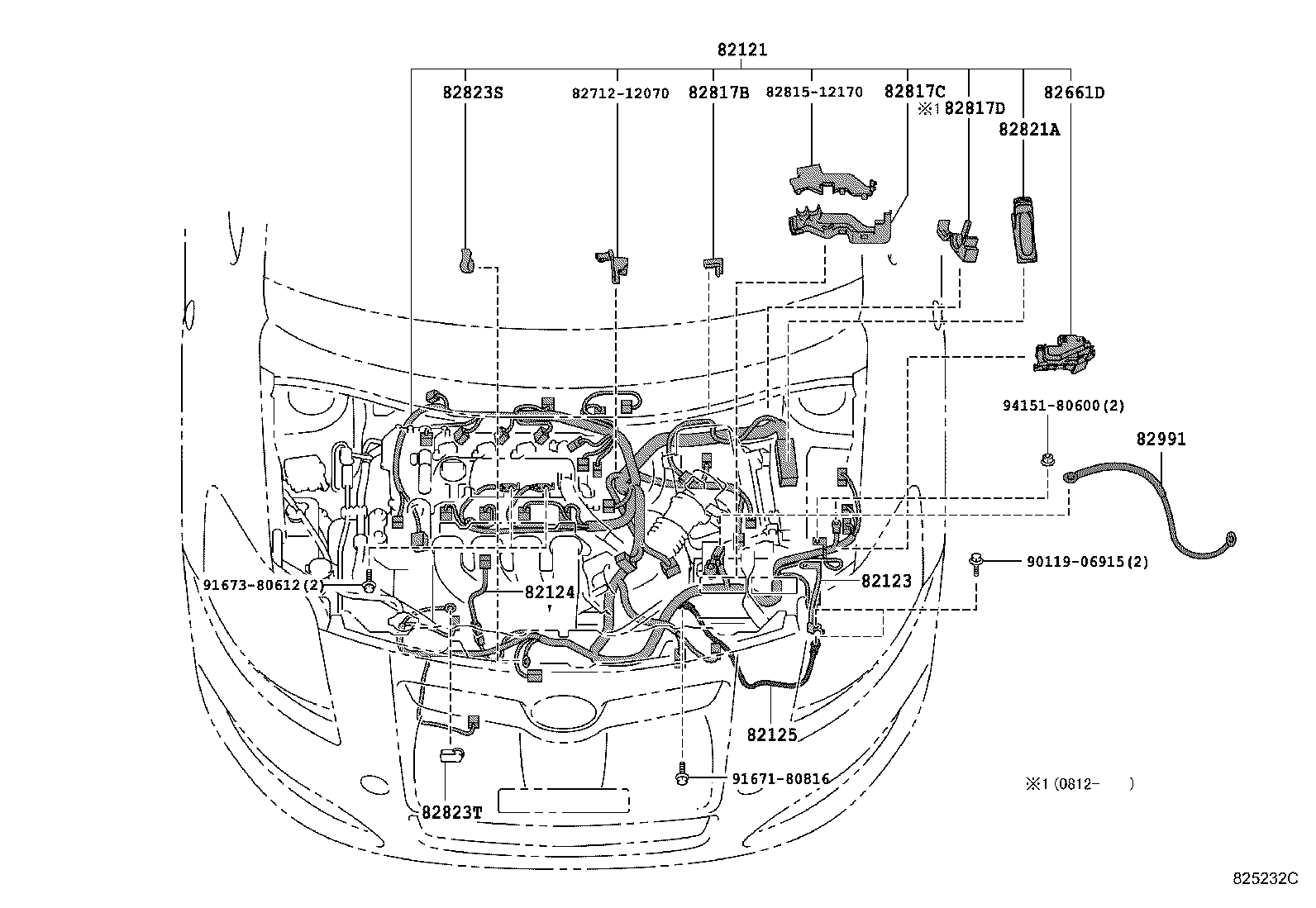

ILLUST NO. 2 OF 8(0610-0910)ZRE15#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

diagram 82121 82123 82124 82125 82661D 8271212070 8281512170 82817B 82817C 82817D 82821A 82823S 82823T 82991 9011906915 9167180816 9167380612 9415180600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-12F40

ZRE152

 1
82121-12F40

ZRE152

 1
82123 - WIRE, ENGINE, NO.3
82123-12420

ZRE15#

 1
82123-12420

ZRE15#

 1
82124 - WIRE, ENGINE, NO.4
82124-02090

ZRE15#

 1
82124-02090

ZRE15#

 1
82125 - WIRE, TRANSMISSION
82125-12450

NZE15#,ZRE15#

 1
82125-12450

NZE15#,ZRE15#

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-12280

NZE15#,ZRE15#

 1
82661-12280

NZE15#,ZRE15#

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-12860

NZE15#,ZRE15#

 1
82817-12860

NZE15#,ZRE15#

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-12B90

NZE15#,ZRE15#

 1
82817-12B90

NZE15#,ZRE15#

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-12J10

ZRE15#

 1
82821A - COVER, CONNECTOR
82821-12560

NZE15#,ZRE15#

 1
82821-12560

NZE15#,ZRE15#

 1
82823S - CAP, STARTER TERMINAL
82823-12090

NZE15#,ZRE15#

 1
82823-12090

NZE15#,ZRE15#

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

NZE15#,ZRE15#

 1
82823-22050

NZE15#,ZRE15#

 1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12110

NZE15#,ZRE15#

 1
82991-12110

NZE15#,ZRE15#

 1
Common parts
82712-12070
82815-12170
90119-06915
91671-80816
91673-80612
94151-80600
