ZRE152H-BHXEK (2008)
Toyota Auris

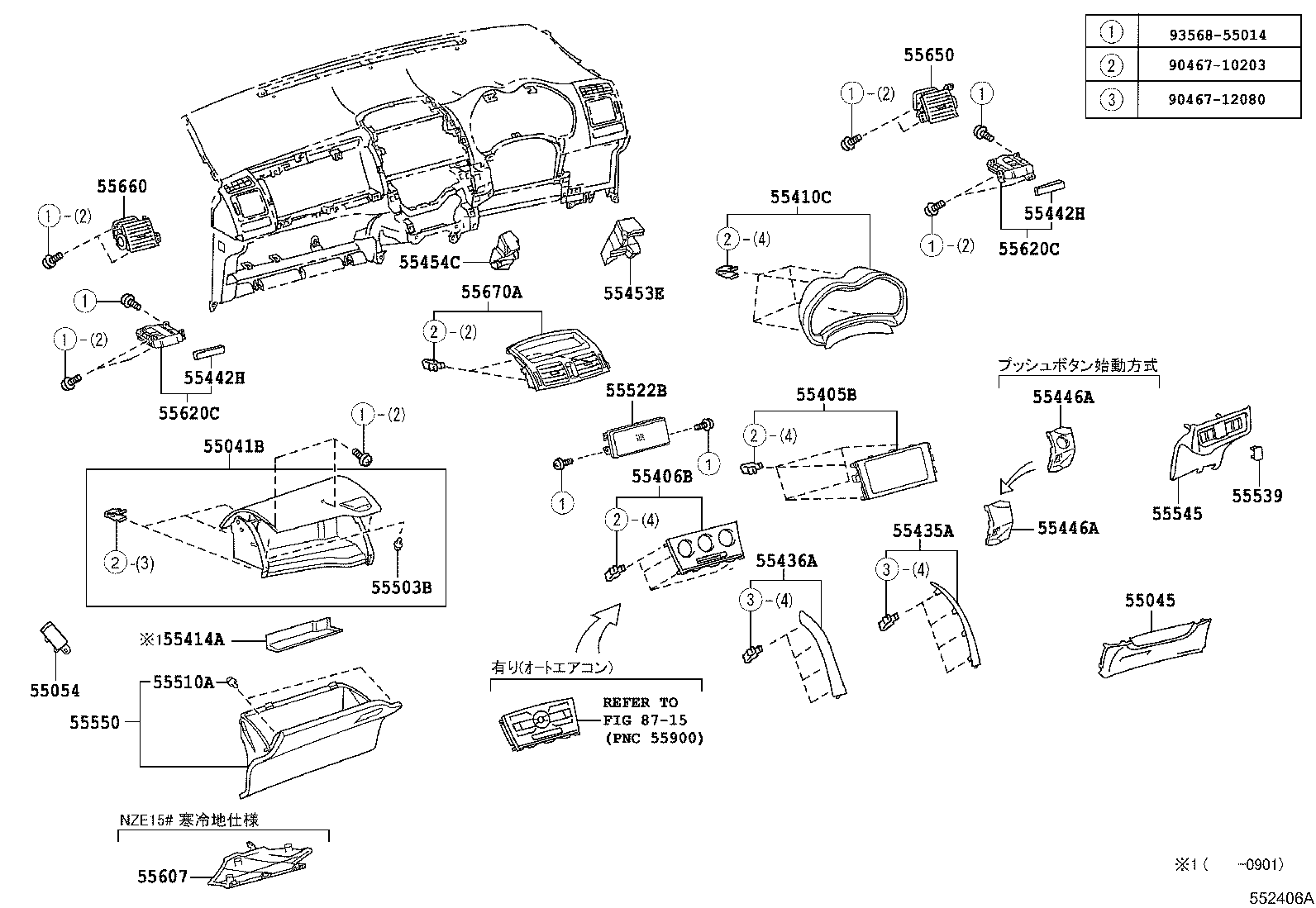

ILLUST NO. 2 OF 2(0610-0910)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-12010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55041-12010E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 55041-12010E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 55041-12010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-12340B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 55045-12360B0 |
NZE15#,ZRE15# ETC−有り,DK.GRAY,TRIM1#,4# |
1 | ||
| 55045-12360B0 |
NZE15#,ZRE15# ETC−有り,DK.GRAY,TRIM1#,4# |
1 | ||
| 55045-12340B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12020 |
NZE15#,ZRE15# |
1 | ||
| 55054-12020 |
NZE15#,ZRE15# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-12A00 |
ZRE15# ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ |
1 | ||
| 55405-12A00 |
ZRE15# ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ |
1 | ||
| 55405-12A00 |
ZRE15# ｵｰﾃﾞｨｵ−DVDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ |
1 | ||
| 55405-12A00 |
ZRE15# ｵｰﾃﾞｨｵ−DVDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12A00E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 55410-12A00B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55410-12A00B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55410-12A00E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-12190 |
NZE15#,ZRE15# |
1 | ||
| 55414-12190 |
NZE15#,ZRE15# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-12070 |
NZE15#,ZRE15# |
1 | ||
| 55435-12070 |
NZE15#,ZRE15# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-12040 |
NZE15#,ZRE15# |
1 | ||
| 55436-12040 |
NZE15#,ZRE15# |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-12230E0 |
NZE15#,ZRE15# GREGE,TRIM4#,右側 |
1 | ||
| 55442-12260B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,左側 |
1 | ||
| 55442-12230E0 |
NZE15#,ZRE15# GREGE,TRIM4#,右側 |
1 | ||
| 55442-12230B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,右側 |
1 | ||
| 55442-12260E0 |
NZE15#,ZRE15# GREGE,TRIM4#,左側 |
1 | ||
| 55442-12260B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,左側 |
1 | ||
| 55442-12260E0 |
NZE15#,ZRE15# GREGE,TRIM4#,左側 |
1 | ||
| 55442-12230B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,右側 |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-12230E0 |
NZE15#,ZRE15# GREGE,TRIM4#,右側 |
1 | ||
| 55442-12260B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,左側 |
1 | ||
| 55442-12230E0 |
NZE15#,ZRE15# GREGE,TRIM4#,右側 |
1 | ||
| 55442-12230B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,右側 |
1 | ||
| 55442-12260E0 |
NZE15#,ZRE15# GREGE,TRIM4#,左側 |
1 | ||
| 55442-12260B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,左側 |
1 | ||
| 55442-12260E0 |
NZE15#,ZRE15# GREGE,TRIM4#,左側 |
1 | ||
| 55442-12230B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,右側 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-12080B0 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55446-12080E0 |
ZRE15# GREGE,TRIM42 |
1 | ||
| 55446-12080E0 |
ZRE15# GREGE,TRIM4# |
1 | ||
| 55446-12080B0 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-12080B0 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55446-12080E0 |
ZRE15# GREGE,TRIM42 |
1 | ||
| 55446-12080E0 |
ZRE15# GREGE,TRIM4# |
1 | ||
| 55446-12080B0 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55453E - PAD, INSTRUMENT, LOWER RH | ||||
| 55453-12020 |
NZE15#,ZRE15# |
1 | ||
| 55453-12020 |
NZE15#,ZRE15# |
1 | ||
| 55454C - PAD, INSTRUMENT, LOWER LH | ||||
| 55454-12020 |
NZE15#,ZRE15# |
1 | ||
| 55454-12020 |
NZE15#,ZRE15# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
NZE15#,ZRE15# |
2 | ||
| 58959-60060 |
NZE15#,ZRE15# |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05026 |
NZE15#,ZRE15# |
2 | ||
| 90541-05026 |
NZE15#,ZRE15# |
2 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
ZRE15# ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ |
1 | ||
| 55522-52020 |
ZRE15# ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B0 |
NZE15#,ZRE15# 寒冷地仕様,DK.GRAY,TRIM1#,42 |
1 | ||
| 55539-52060B0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 55539-52060B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55539-52060B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55539-52060E0 |
NZE15#,ZRE15# 寒冷地仕様,GREGE,TRIM4# |
1 | ||
| 55539-52060E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 55539-52060E0 |
NZE15#,ZRE15# 寒冷地仕様,GREGE,TRIM42 |
1 | ||
| 55539-52060B0 |
NZE15#,ZRE15# 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 55539-52060E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 55539-52060E0 |
NZE15#,ZRE15# ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP,GREGE,TRIM4# |
1 | ||
| 55539-52060E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 55539-52060B0 |
NZE15#,ZRE15# ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP,DK.GRAY,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-12050E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 55545-12050B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55545-12050B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12420B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55550-12420E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 55550-12420B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55550-12420E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-12111E0 |
NZE15#,ZRE15# GREGE,TRIM4#,右側 |
1 | ||
| 55620-12130B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,左側 |
1 | ||
| 55620-12130E0 |
NZE15#,ZRE15# GREGE,TRIM4#,左側 |
1 | ||
| 55620-12111E0 |
NZE15#,ZRE15# GREGE,TRIM4#,右側 |
1 | ||
| 55620-12111B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,右側 |
1 | ||
| 55620-12130E0 |
NZE15#,ZRE15# GREGE,TRIM4#,左側 |
1 | ||
| 55620-12130B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,左側 |
1 | ||
| 55620-12111B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,右側 |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-12111E0 |
NZE15#,ZRE15# GREGE,TRIM4#,右側 |
1 | ||
| 55620-12130B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,左側 |
1 | ||
| 55620-12130E0 |
NZE15#,ZRE15# GREGE,TRIM4#,左側 |
1 | ||
| 55620-12111E0 |
NZE15#,ZRE15# GREGE,TRIM4#,右側 |
1 | ||
| 55620-12111B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,右側 |
1 | ||
| 55620-12130E0 |
NZE15#,ZRE15# GREGE,TRIM4#,左側 |
1 | ||
| 55620-12130B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,左側 |
1 | ||
| 55620-12111B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,右側 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12290B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55650-12290E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 55650-12290E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 55650-12290B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12360B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55660-12360B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 55660-12360E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 55660-12360E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-12330 |
ZRE15# |
1 | ||
| 55670-12330 |
ZRE15# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
