ZRE152H-BHXEK (2006)

Toyota Auris

Production Oct 2006 - Dec 2008
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

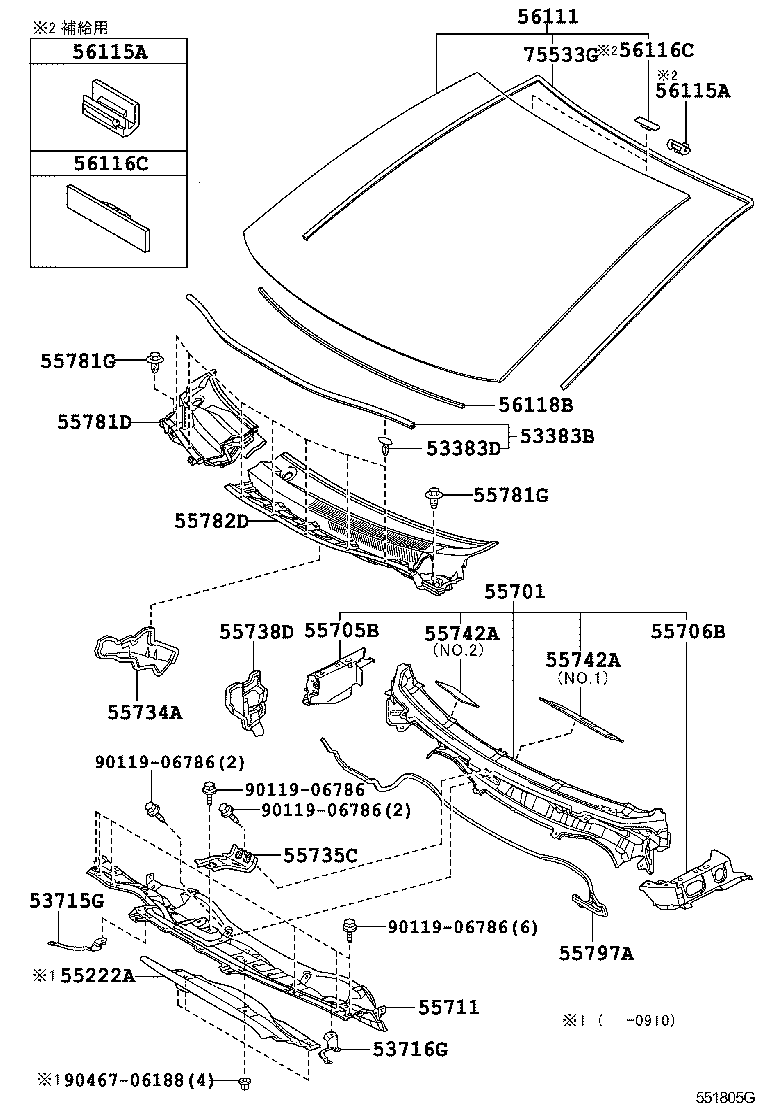

Click highlighted areas on diagram

diagram 53383B 53383D 53715G 53716G 55222A 55701 55705B 55706B 55711 55734A 55735C 55738D 55742A 55742A 55781D 55781G 55781G 55782D 55797A 56111 56115A 56115A 56116C 56116C 56118B 75533G 9011906786 9011906786 9011906786 9011906786 9046706188
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-12150

NZE15#,ZRE15#

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
67867-12150

NZE15#,ZRE15#

 7
53715G - EXTENSION, FRONT FENDER APRON, REAR RH
53715-12060

NZE15#,ZRE15#

 1
53715-12061

NZE15#,ZRE15#

 1
53716G - EXTENSION, FRONT FENDER APRON, REAR LH
53716-12070

NZE15#,ZRE15#

 1
53716-12071

NZE15#,ZRE15#

 1
55222A - INSULATOR, DASH PANEL, OUTER CENTER
55224-12010

NZE15#,ZRE15#

 1
55701 - PANEL SUB-ASSY, COWL
55700-12A60

NZE15#,ZRE15#

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-12070

NZE15#,ZRE15#

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-12080

NZE15#,ZRE15#

 1
55711 - PANEL, COWL TOP, OUTER
55701-12A10

NZE15#,ZRE15#

 1
55734A - PLATE, WATER GUARD, RH
55734-12110

NZE15#,ZRE15#

 1
55735C - REINFORCEMENT, COWL BODY MOUNTING, RH
55735-12070

NZE15#,ZRE15#

 1
55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55738-12120

NZE15#,ZRE15#

 1
55742A - SHEET, COWL TOP INSULATOR
55743-12040

NZE15#,ZRE15#

NO.2

 1
55742-12130

NZE15#,ZRE15#

NO.1

 1
55742A - SHEET, COWL TOP INSULATOR
55743-12040

NZE15#,ZRE15#

NO.2

 1
55742-12130

NZE15#,ZRE15#

NO.1

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55708-12310

NZE15#,ZRE15#

 1
55708-12311

NZE15#,ZRE15#

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-07076C0

NZE15#,ZRE15#

BLACK

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-07076C0

NZE15#,ZRE15#

BLACK

 2
55782D - LOUVER, COWL TOP VENTILATOR, LH
55709-12091

NZE15#,ZRE15#

 1
55709-12101

NZE15#,ZRE15#

寒冷地仕様

 1
55709-12100

NZE15#,ZRE15#

寒冷地仕様

 1
55709-12090

NZE15#,ZRE15#

 1
55797A - SEAL, COWL WATER EXTRACT
55797-12030

NZE15#,ZRE15#

 1
56111 - GLASS, WINDSHIELD
56101-12180

NZE15#,ZRE15#

*LAM,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様

 1
56101-12140

NZE15#,ZRE15#

*LAM,T=4.76,ｸﾞﾘｰﾝ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30120

NZE15#,ZRE15#

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30120

NZE15#,ZRE15#

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

NZE15#,ZRE15#

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

NZE15#,ZRE15#

 2
56118B - DAM, WINDOW GLASS ADHESIVE, NO.2
56117-12290

NZE15#,ZRE15#

長さ=1089

 1
56117-12290

NZE15#,ZRE15#

長さ=1089,寒冷地仕様

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-12630

NZE15#,ZRE15#

 1
Common parts
90119-06786
90467-06188
