ZRE152H-BHFEP (2009)

Toyota Auris

Production Oct 2009 - Aug 2012
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0910- )

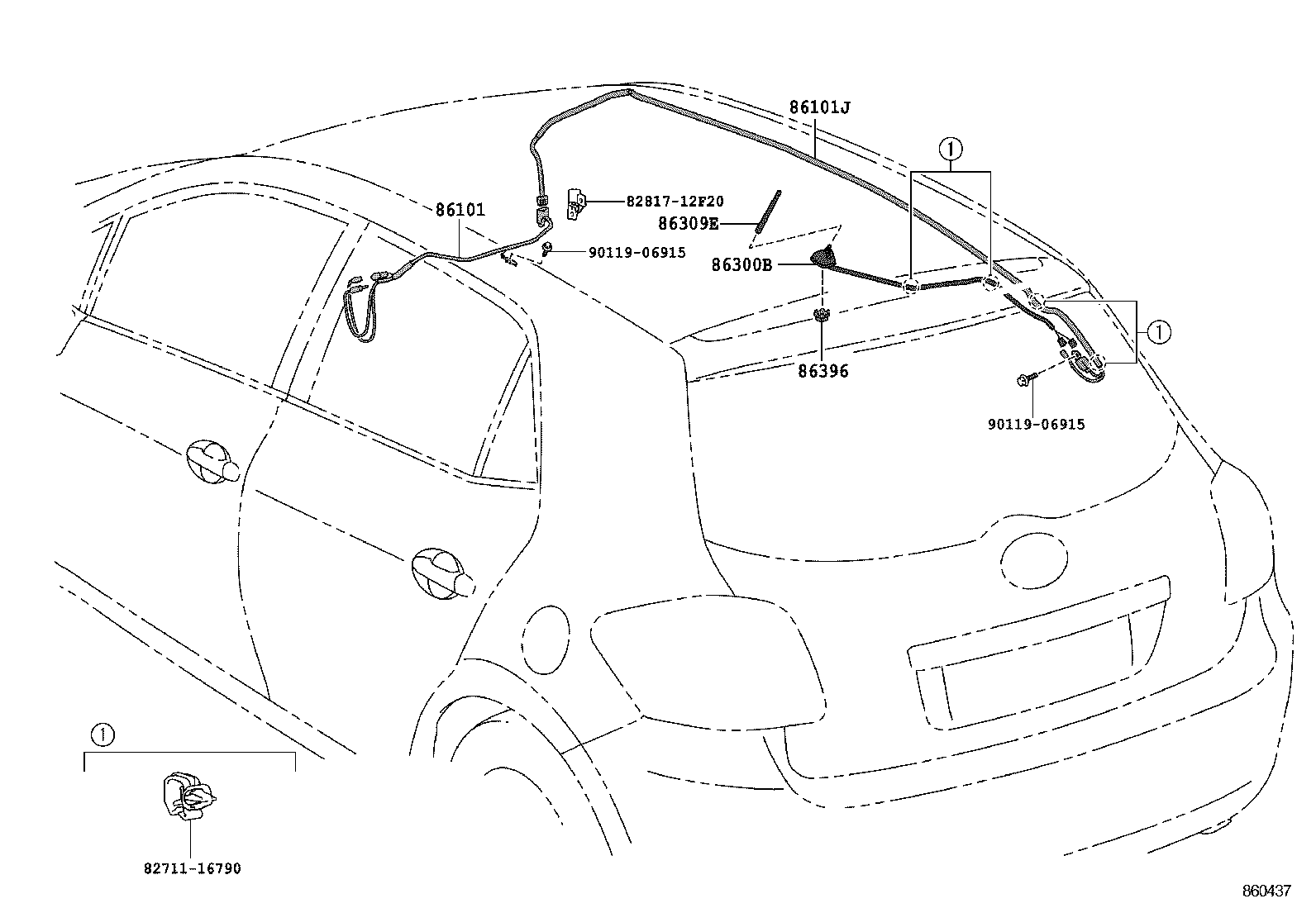

Click highlighted areas on diagram

diagram 8271116790 8281712F20 86101 86101J 86300B 86309E 86396 9011906915 9011906915
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-12490

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−DVDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
86101-12460

NZE15#,ZRE15#

 1
86101-12490

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
86101-12460

NZE15#,ZRE15#

 1
86101-12850

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ&ETC−有り

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-12440

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−DVDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
86101-12440

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
86101-12410

NZE15#,ZRE15#

 1
86101-12410

NZE15#,ZRE15#

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-12850

NZE15#,ZRE15#

 1
86300-12A70

NZE15#,ZRE15#

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-42070

NZE15#,ZRE15#

 1
86309-20310

NZE15#,ZRE15#

 1
86396 - NUT, ANTENNA
86396-20040

NZE15#,ZRE15#

 1
86396-20040

NZE15#,ZRE15#

 1
Common parts
82711-16790
82817-12F20
90119-06915
