ZRE152H-BHFEP (2009)

Toyota Auris

Production Oct 2009 - Aug 2012
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0910- )2ZRFAE..ZRE152..6F

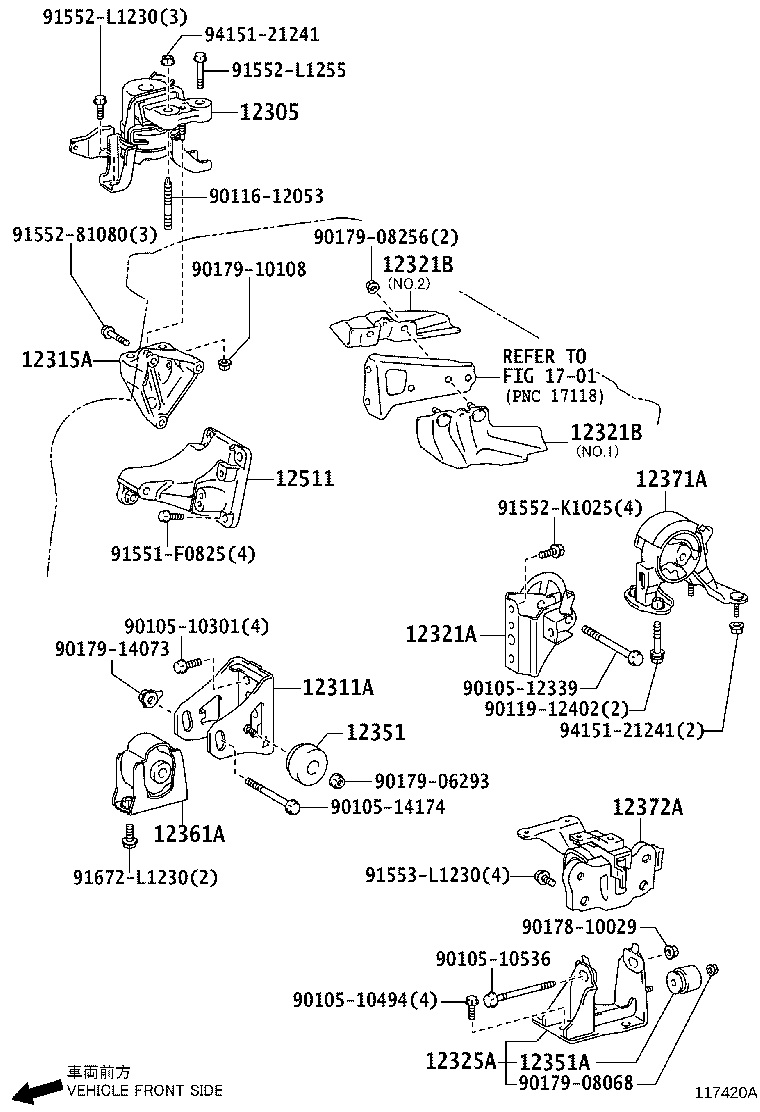

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12321B 12321B 12325A 12351 12351A 12361A 12371A 12372A 12511 1701 9010510301 9010510494 9010510536 9010512339 9010514174 9011612053 9011912402 9017810029 9017906293 9017908068 9017908256 9017910108 9017914073 91551F0825 9155281080 91552K1025 91552L1230 91552L1255 91553L1230 91672L1230 9415121241 9415121241
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-22361

2ZRFAE..ZRE152

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-37120

2ZRFAE..ZRE152..6F

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37030

2ZRFAE..ZRE15#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-37100

2ZRFAE..ZRE152..6F

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-12051

2ZRFAE..ZRE152..6F

NO.2

 1
43409-12060

2ZRFAE..ZRE152..6F

NO.1

 1
43409-20031

2ZRFAE..ZRE152..6F

NO.1

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-12051

2ZRFAE..ZRE152..6F

NO.2

 1
43409-12060

2ZRFAE..ZRE152..6F

NO.1

 1
43409-20031

2ZRFAE..ZRE152..6F

NO.1

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12304-37100

2ZRFAE..ZRE152..6F

 1
12351 - DAMPER, ENGINE MOUNTING
12351-37060

2ZRFAE..ZRE152..6F

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-26010

2ZRFAE..ZRE152..6F

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-28230

2ZRFAE..ZRE152..6F

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-22220

2ZRFAE..ZRE152..6F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-37150

2ZRFAE..ZRE152..6F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-37010

2ZRFAE..ZRE15#

 1
Common parts
90105-10301
90105-10494
90105-10536
90105-12339
90105-14174
90116-12053
90119-12402
90178-10029
90179-06293
90179-08068
90179-08256
90179-10108
90179-14073
91551-F0825
91552-81080
91552-K1025
91552-L1230
91552-L1255
91553-L1230
91672-L1230
94151-21241
Linked diagrams
1701
