NZE154H-BHXNK (2008)
Toyota Auris
Production
Dec 2008
-
Oct 2009
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0610-0910)NZE154,ZRE154

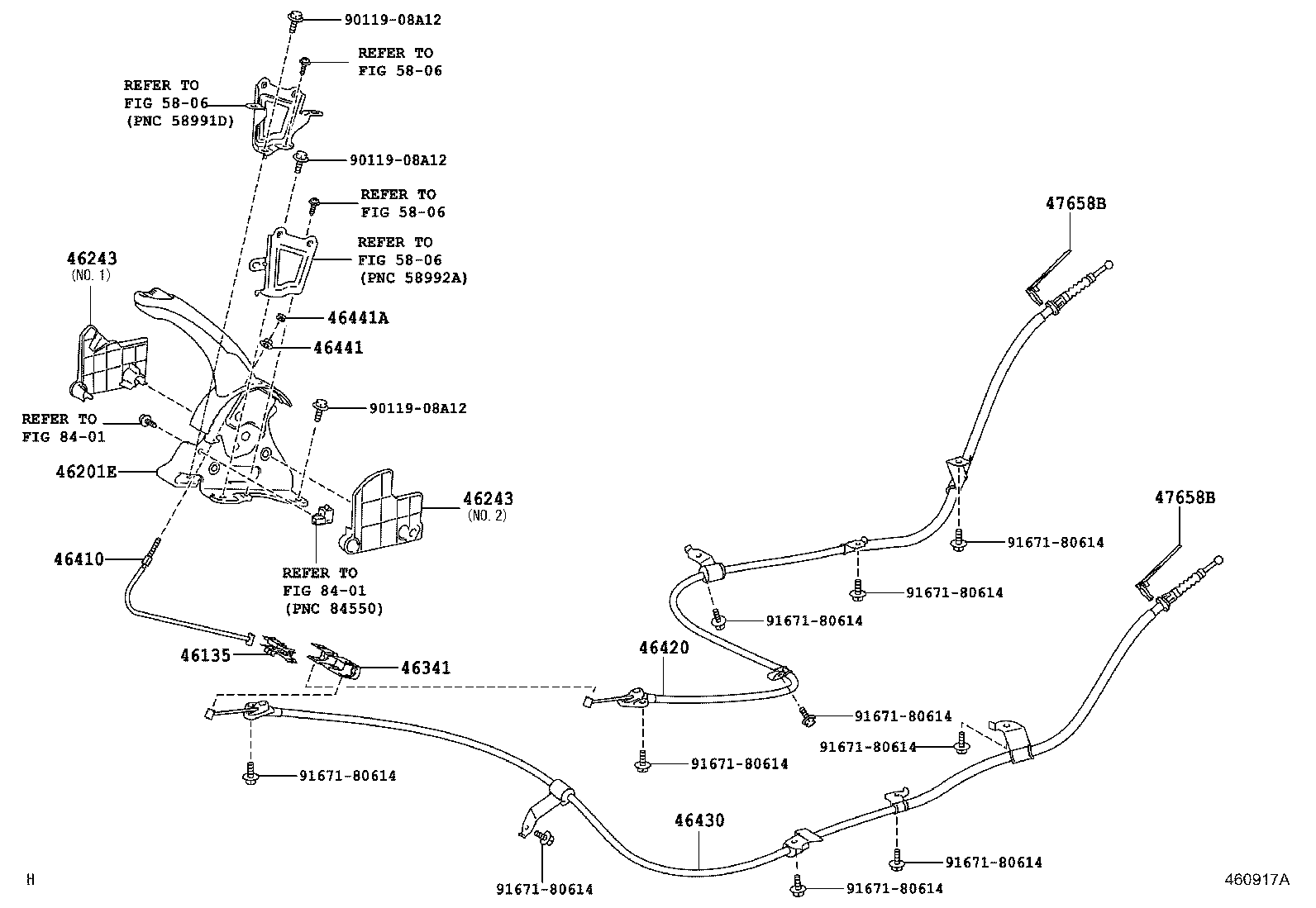

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-12010 |
NZE15#,ZRE15# |
1 | ||
| 46135-12010 |
NZE15#,ZRE15# |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-12362B0 |
NZE154,ZRE154 DK.GRAY,TRIM1#,4# |
1 | ||
| 46201-12361B0 |
NZE154,ZRE154 DK.GRAY,TRIM1#,4# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-12041 |
NZE15#,ZRE15# NO.1 |
1 | ||
| 46243-12051 |
NZE15#,ZRE15# NO.2 |
1 | ||
| 46243-12041 |
NZE15#,ZRE15# NO.1 |
1 | ||
| 46243-12051 |
NZE15#,ZRE15# NO.2 |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-12041 |
NZE15#,ZRE15# NO.1 |
1 | ||
| 46243-12051 |
NZE15#,ZRE15# NO.2 |
1 | ||
| 46243-12041 |
NZE15#,ZRE15# NO.1 |
1 | ||
| 46243-12051 |
NZE15#,ZRE15# NO.2 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12040 |
NZE15#,ZRE15# |
1 | ||
| 46341-12040 |
NZE15#,ZRE15# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-12290 |
NZE154,ZRE154 |
1 | ||
| 46410-12290 |
NZE154,ZRE154 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-12610 |
NZE154,ZRE154 |
1 | ||
| 46420-12610 |
NZE154,ZRE154 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-12490 |
NZE154,ZRE154 |
1 | ||
| 46430-12490 |
NZE154,ZRE154 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
NZE15#,ZRE15# |
1 | ||
| 46441-12010 |
NZE15#,ZRE15# |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06299 |
NZE15#,ZRE15# |
1 | ||
| 90179-06299 |
NZE15#,ZRE15# |
1 | ||
| 47658B - PROTECTOR, PARKING BRAKE LEVER | ||||
| 47658-12010 |
NZE154,ZRE154 |
2 | ||
| 47658-12010 |
NZE154,ZRE154 |
2 | ||
| 47658B - PROTECTOR, PARKING BRAKE LEVER | ||||
| 47658-12010 |
NZE154,ZRE154 |
2 | ||
| 47658-12010 |
NZE154,ZRE154 |
2 | ||
| Common parts | ||||
| 90119-08A12 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 5806 | ||||
| 8401 | ||||
