NZE154H-BHXNK (2006)

Toyota Auris

Production Oct 2006 - Dec 2008
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)

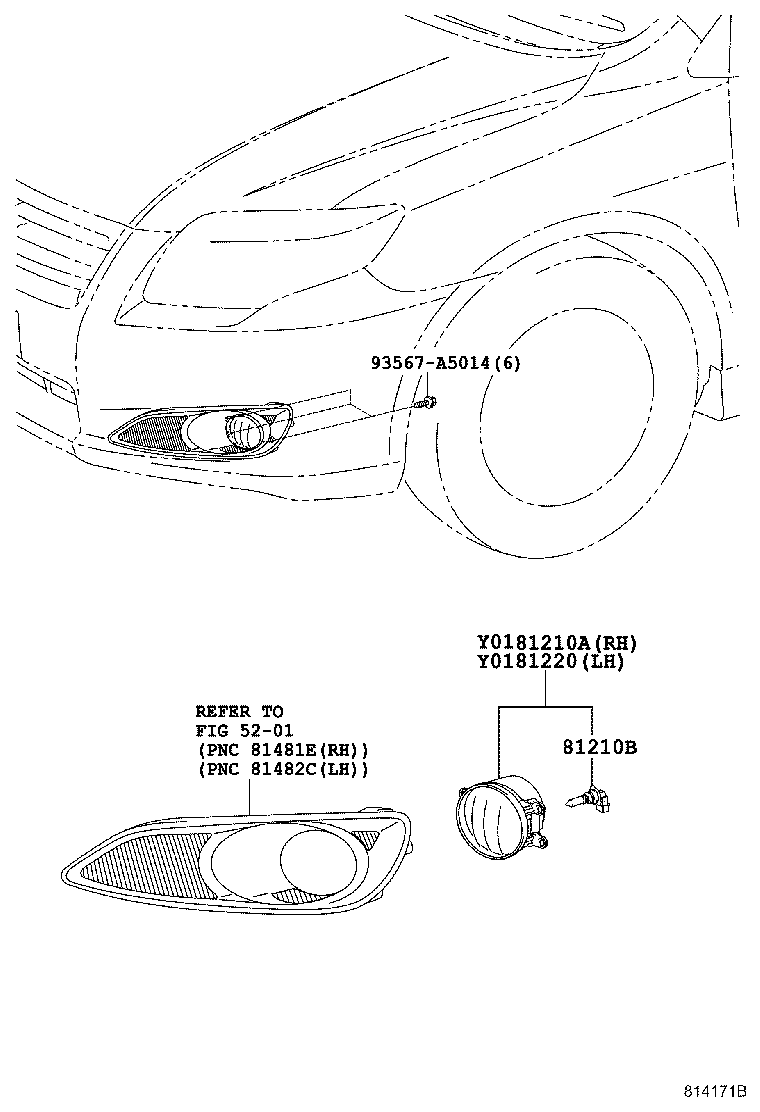

Click highlighted areas on diagram

diagram 5201 81210A 81210B 81220 93567A5014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0D040

NZE15#,ZRE15#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81210-0D041

NZE15#,ZRE15#

Sﾊﾟｯｹｰｼﾞ

 1
81210-0D041

NZE15#,ZRE15#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81210-0D040

NZE15#,ZRE15#

Sﾊﾟｯｹｰｼﾞ

 1
81210-0D041

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)

 1
81210B - BULB, FOG LAMP
90981-13081

NZE15#,ZRE15#

12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP,OSRAM

 2
90981-13075

NZE15#,ZRE15#

12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP,PHILIPS

 2
90981-13081

NZE15#,ZRE15#

12V 55W,ﾊﾛｹﾞﾝ,Sﾊﾟｯｹｰｼﾞ,OSRAM

 2
90981-13081

NZE15#

12V 55W,ﾊﾛｹﾞﾝ,Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G),OSRAM

 2
90981-13075

NZE15#,ZRE15#

12V 55W,ﾊﾛｹﾞﾝ,Sﾊﾟｯｹｰｼﾞ,PHILIPS

 2
90981-13075

NZE15#

12V 55W,ﾊﾛｹﾞﾝ,Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G),PHILIPS

 2
81220 - LAMP ASSY, FOG, LH
81220-0D040

NZE15#,ZRE15#

Sﾊﾟｯｹｰｼﾞ

 1
81220-0D041

NZE15#,ZRE15#

Sﾊﾟｯｹｰｼﾞ

 1
81220-0D041

NZE15#,ZRE15#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81220-0D040

NZE15#,ZRE15#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81220-0D041

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)

 1
Common parts
93567-A5014
Linked diagrams
5201
