NZE154H-BHXNK (2006)

Toyota Auris

Production Oct 2006 - Dec 2008
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )CVFC

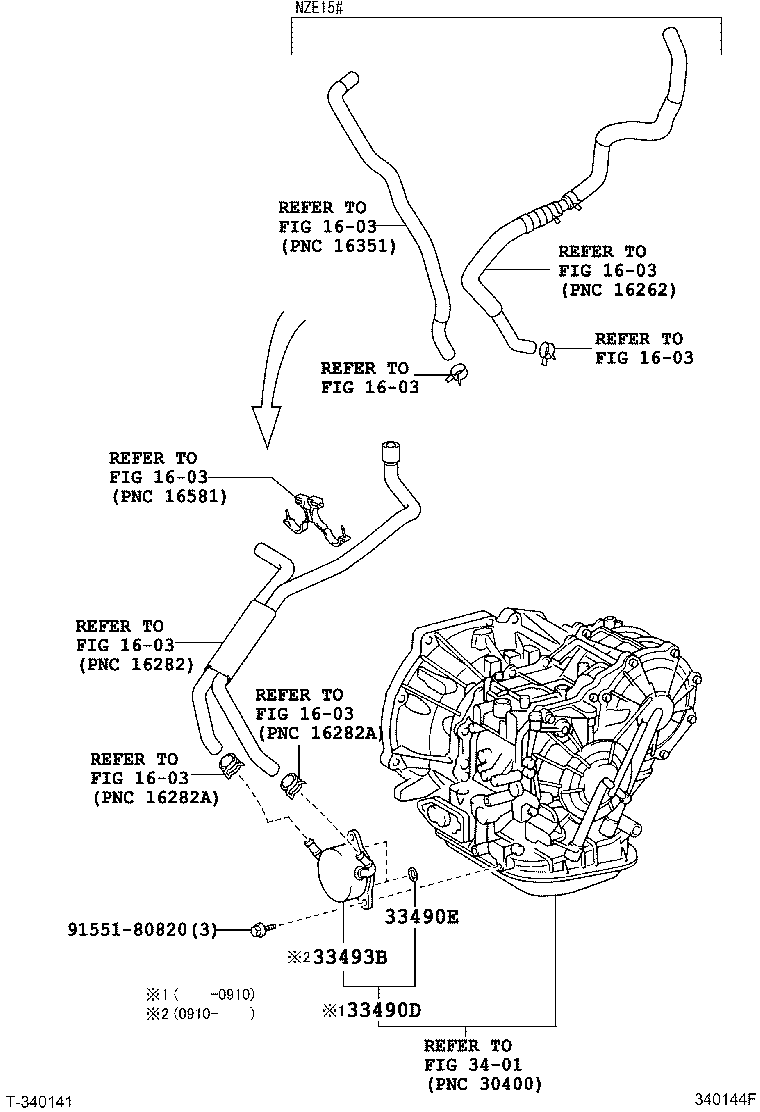

Click highlighted areas on diagram

K310,K311,K310F,K311F

diagram 1603 1603 1603 1603 1603 1603 1603 1603 33490D 33490E 33493B 3401 9155180820
Part # Description Qty Price
33490D - COOLER ASSY, TRANSMISSION OIL
33490-12020

NZE15#,ZRE15#

 1
33490E - RING, O (FOR TRANSMISSION OIL COOLER)
90301-19020

NZE15#,ZRE15#

 2
Common parts
91551-80820
Linked diagrams
1603
3401
