NZE151H-BHXNK (2008)

Toyota Auris

Production Dec 2008 - Oct 2009
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)

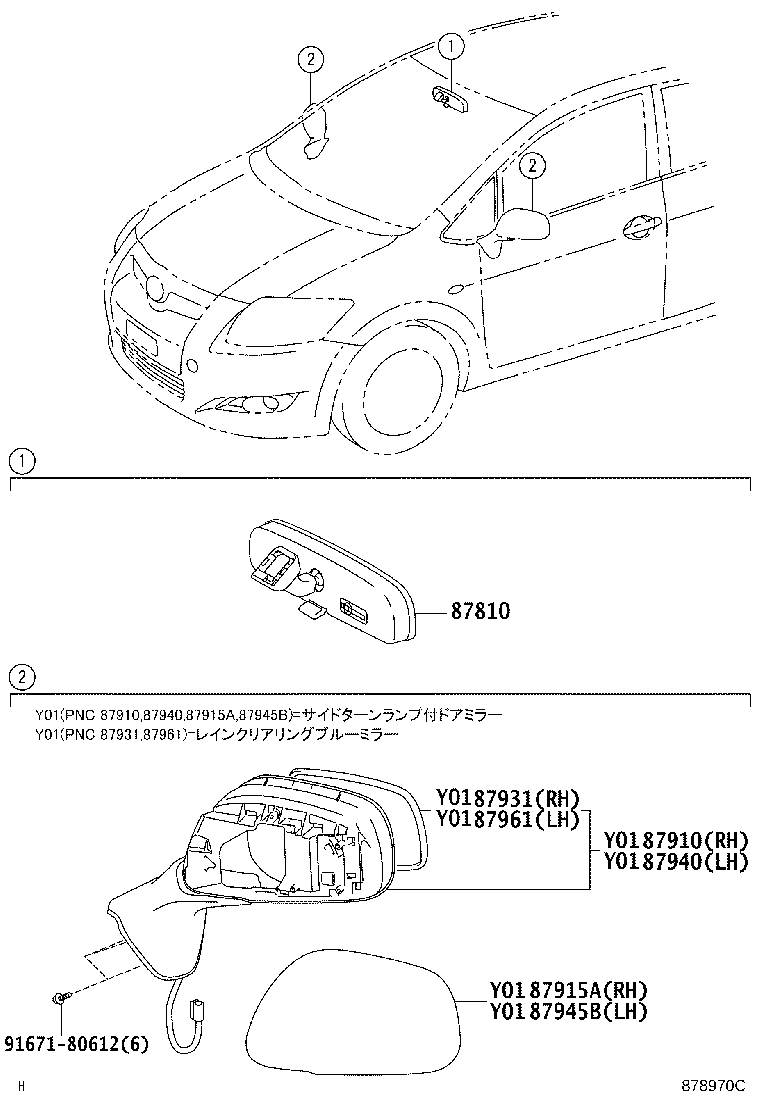

Click highlighted areas on diagram

diagram 87810 87910 87915A 87931 87940 87945B 87961 9167180612
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-52040

NZE15#,ZRE15#

 1
87810-52041

NZE15#,ZRE15#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-12B20

NZE15#,ZRE15#

塗装不要

 1
87910-12B30

NZE15#,ZRE15#

塗装不要,寒冷地仕様

 1
87910-12B20

NZE15#,ZRE15#

塗装不要

 1
87910-12B30

NZE15#,ZRE15#

塗装不要,寒冷地仕様

 1
87910-12B10

NZE15#

塗装不要,Lﾊﾟｯｹｰｼﾞ&寒冷地仕様

 1
87910-12B00

NZE15#

塗装不要,Lﾊﾟｯｹｰｼﾞ

 1
87915A - COVER, OUTER MIRROR, RH
87915-12050

NZE15#

Lﾊﾟｯｹｰｼﾞ

 1
87915-12050

NZE15#

Lﾊﾟｯｹｰｼﾞ&寒冷地仕様

 1
87915-33010D0

NZE15#,ZRE15#

RED M.M.,3R3

 1
87915-33010A1

NZE15#,ZRE15#

WHITE PEARL CS.,070

 1
87915-33010J3

NZE15#,ZRE15#

DK.BLUE MC.,8S6

 1
87915-33010C1

NZE15#,ZRE15#

BLACK MC.,209

 1
87915-33010B2

NZE15#,ZRE15#

SILVER ME.,1C0

 1
87915-33010B2

NZE15#,ZRE15#

SILVER ME.,1C0

 1
87915-33010K0

NZE15#,ZRE15#

PURPLE ME.,9AD

 1
87915-33010J3

NZE15#,ZRE15#

DK.BLUE MC.,8S6

 1
87915-33010D0

NZE15#,ZRE15#

RED M.M.,3R3

 1
87915-33010J2

NZE15#,ZRE15#

LT.BLUE M.M.,8S1

 1
87915-33010J2

NZE15#,ZRE15#

LT.BLUE M.M.,8S1

 1
87915-33010B1

NZE15#,ZRE15#

GRAY ME.,1G3

 1
87915-33010C1

NZE15#,ZRE15#

BLACK MC.,209

 1
87915-33010J4

NZE15#,ZRE15#

DK.BLUE ME.,8T8

 1
87915-33010A1

NZE15#,ZRE15#

WHITE PEARL CS.,070

 1
87931 - OUTER MIRROR, RH
87931-12B20

NZE15#,ZRE15#

 1
87931-12B10

NZE15#

Lﾊﾟｯｹｰｼﾞ&寒冷地仕様

 1
87931-12B20

NZE15#,ZRE15#

 1
87931-12B30

NZE15#,ZRE15#

寒冷地仕様

 1
87931-12B30

NZE15#,ZRE15#

寒冷地仕様

 1
87931-12B00

NZE15#

Lﾊﾟｯｹｰｼﾞ

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-12B30

NZE15#,ZRE15#

塗装不要

 1
87940-12B10

NZE15#

塗装不要,Lﾊﾟｯｹｰｼﾞ

 1
87940-12B30

NZE15#,ZRE15#

塗装不要

 1
87940-12B40

NZE15#,ZRE15#

塗装不要,寒冷地仕様

 1
87940-12B40

NZE15#,ZRE15#

塗装不要,寒冷地仕様

 1
87940-12B20

NZE15#

塗装不要,Lﾊﾟｯｹｰｼﾞ&寒冷地仕様

 1
87945B - COVER, OUTER MIRROR, LH
87945-12050

NZE15#

Lﾊﾟｯｹｰｼﾞ

 1
87945-33010J3

NZE15#,ZRE15#

DK.BLUE MC.,8S6

 1
87945-12050

NZE15#

Lﾊﾟｯｹｰｼﾞ&寒冷地仕様

 1
87945-33010A1

NZE15#,ZRE15#

WHITE PEARL CS.,070

 1
87945-33010B2

NZE15#,ZRE15#

SILVER ME.,1C0

 1
87945-33010A1

NZE15#,ZRE15#

WHITE PEARL CS.,070

 1
87945-33010D0

NZE15#,ZRE15#

RED M.M.,3R3

 1
87945-33010K0

NZE15#,ZRE15#

PURPLE ME.,9AD

 1
87945-33010C1

NZE15#,ZRE15#

BLACK MC.,209

 1
87945-33010J2

NZE15#,ZRE15#

LT.BLUE M.M.,8S1

 1
87945-33010B1

NZE15#,ZRE15#

GRAY ME.,1G3

 1
87945-33010C1

NZE15#,ZRE15#

BLACK MC.,209

 1
87945-33010J4

NZE15#,ZRE15#

DK.BLUE ME.,8T8

 1
87945-33010D0

NZE15#,ZRE15#

RED M.M.,3R3

 1
87945-33010B2

NZE15#,ZRE15#

SILVER ME.,1C0

 1
87945-33010J3

NZE15#,ZRE15#

DK.BLUE MC.,8S6

 1
87945-33010J2

NZE15#,ZRE15#

LT.BLUE M.M.,8S1

 1
87961 - MIRROR OUTER, LH
87961-12B40

NZE15#,ZRE15#

寒冷地仕様

 1
87961-12B10

NZE15#

Lﾊﾟｯｹｰｼﾞ

 1
87961-12B30

NZE15#,ZRE15#

 1
87961-12B40

NZE15#,ZRE15#

寒冷地仕様

 1
87961-12B20

NZE15#

Lﾊﾟｯｹｰｼﾞ&寒冷地仕様

 1
87961-12B30

NZE15#,ZRE15#

 1
Common parts
91671-80612
