NZE151H-BHXNK (2008)

Toyota Auris

Production Dec 2008 - Oct 2009
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

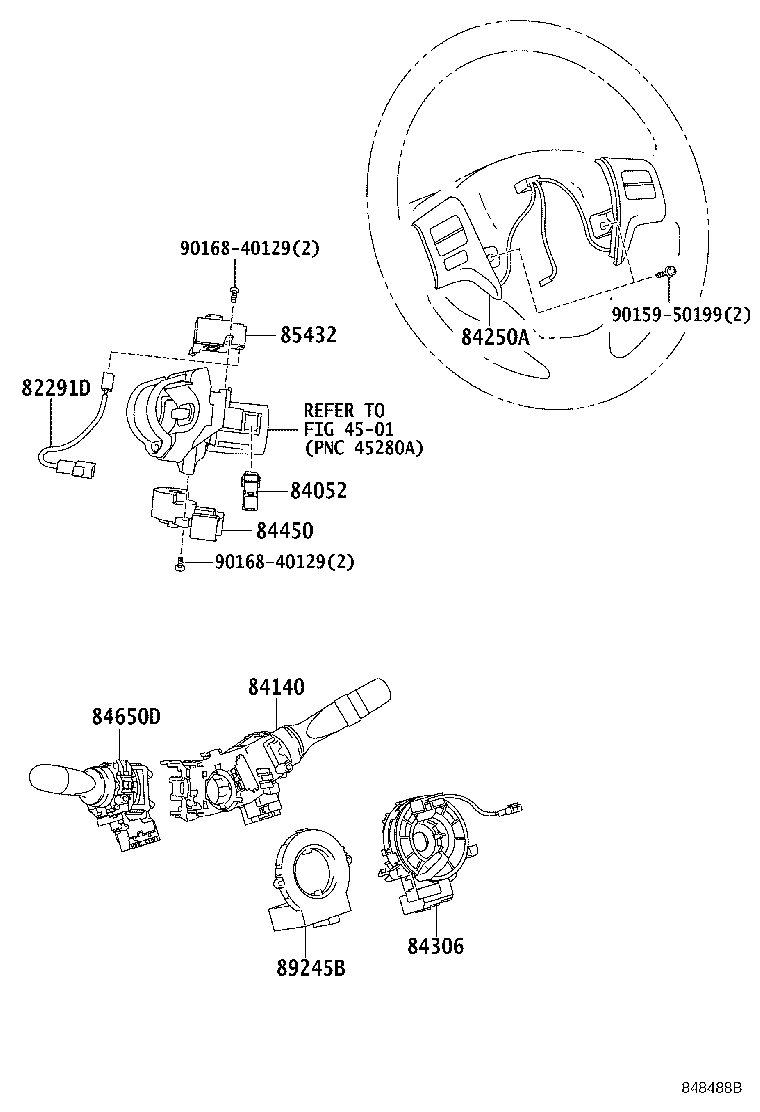

ILLUST NO. 6 OF 7(0610-0910)

Click highlighted areas on diagram

ｽﾃｱﾘﾝｸﾞ

diagram 4501 82291D 84052 84140 84250A 84306 84450 84650D 85432 89245B 9015950199 9016840129 9016840129
Part # Description Qty Price
82291D - WIRE, TO SOLENOID
82291-42010

NZE15#

 1
82291-42010

NZE15#

始動方式−ﾌﾟｯｼｭﾎﾞﾀﾝ式(ｽﾏｰﾄｴﾝﾄﾘ)

 1
82291-42010

NZE15#

 1
82291-42010

NZE15#

始動方式−ﾌﾟｯｼｭﾎﾞﾀﾝ式(ｽﾏｰﾄｴﾝﾄﾘ)

 1
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-71010

NZE15#

 1
84052-71010

NZE15#

始動方式−ﾌﾟｯｼｭﾎﾞﾀﾝ式(ｽﾏｰﾄｴﾝﾄﾘ)

 1
84052-71010

NZE15#

始動方式−ﾌﾟｯｼｭﾎﾞﾀﾝ式(ｽﾏｰﾄｴﾝﾄﾘ)

 1
84052-71010

NZE15#

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-42080

NZE15#,ZRE15#

Sﾊﾟｯｹｰｼﾞ&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り(右側のみ)

 1
84140-12600

NZE15#

ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り(右側のみ)

 1
84140-12570

NZE15#

Mﾊﾟｯｹｰｼﾞ

 1
84140-42070

NZE15#,ZRE15#

Sﾊﾟｯｹｰｼﾞ

 1
84140-12580

NZE15#

Mﾊﾟｯｹｰｼﾞ&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(右側のみ)

 1
84140-12580

NZE15#

Mﾊﾟｯｹｰｼﾞ&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り(右側のみ)

 1
84140-42080

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(右側のみ)

 1
84140-42080

NZE15#,ZRE15#

Sﾊﾟｯｹｰｼﾞ&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(右側のみ)

 1
84140-12590

NZE15#

 1
84140-12600

NZE15#

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(右側のみ)

 1
84140-12570

NZE15#

Mﾊﾟｯｹｰｼﾞ

 1
84140-42070

NZE15#,ZRE15#

Sﾊﾟｯｹｰｼﾞ

 1
84140-42070

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)

 1
84140-12590

NZE15#

 1
84250A - SWITCH ASSY, STEERING PAD
84250-12010

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
84250-12010

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
84250-12010

NZE15#

Sﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
84250-12010

NZE15#

Sﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-12110

NZE15#

Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
84306-12110

NZE15#

Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
84306-12100

NZE15#,ZRE15#

 1
84306-12110

NZE15#

Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
84306-12110

NZE15#

Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
84306-12110

NZE15#

Sﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
84306-12110

NZE15#

Sﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
84306-12100

NZE15#,ZRE15#

 1
84306-12110

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
84306-12110

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200

NZE15#

始動方式−ﾌﾟｯｼｭﾎﾞﾀﾝ式(ｽﾏｰﾄｴﾝﾄﾘ)

 1
84450-12200

NZE15#

 1
84450-12200

NZE15#

始動方式−ﾌﾟｯｼｭﾎﾞﾀﾝ式(ｽﾏｰﾄｴﾝﾄﾘ)

 1
84450-12200

NZE15#

 1
84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL)
84652-52190

NZE15#

 1
84652-52250

NZE15#

Mﾊﾟｯｹｰｼﾞ

 1
84652-52250

NZE15#

Mﾊﾟｯｹｰｼﾞ

 1
84652-52190

NZE15#

 1
84652-52250

NZE15#

Sﾊﾟｯｹｰｼﾞ

 1
84652-52250

NZE15#

Sﾊﾟｯｹｰｼﾞ

 1
85432 - SOLENOID, KEY INTER LOCK
85432-71010

NZE15#

始動方式−ﾌﾟｯｼｭﾎﾞﾀﾝ式(ｽﾏｰﾄｴﾝﾄﾘ)

 1
85432-71010

NZE15#

 1
85432-71010

NZE15#

 1
85432-71010

NZE15#

始動方式−ﾌﾟｯｼｭﾎﾞﾀﾝ式(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89245B - SENSOR, STEERING
89245-12020

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
89245-12020

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
89245-12020

NZE15#,ZRE15#

SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ

 1
89245-12020

NZE15#,ZRE15#

SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ

 1
Common parts
90159-50199
90168-40129
Linked diagrams
4501
