NZE151H-BHXNK (2008)

Toyota Auris

Production Dec 2008 - Oct 2009
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)

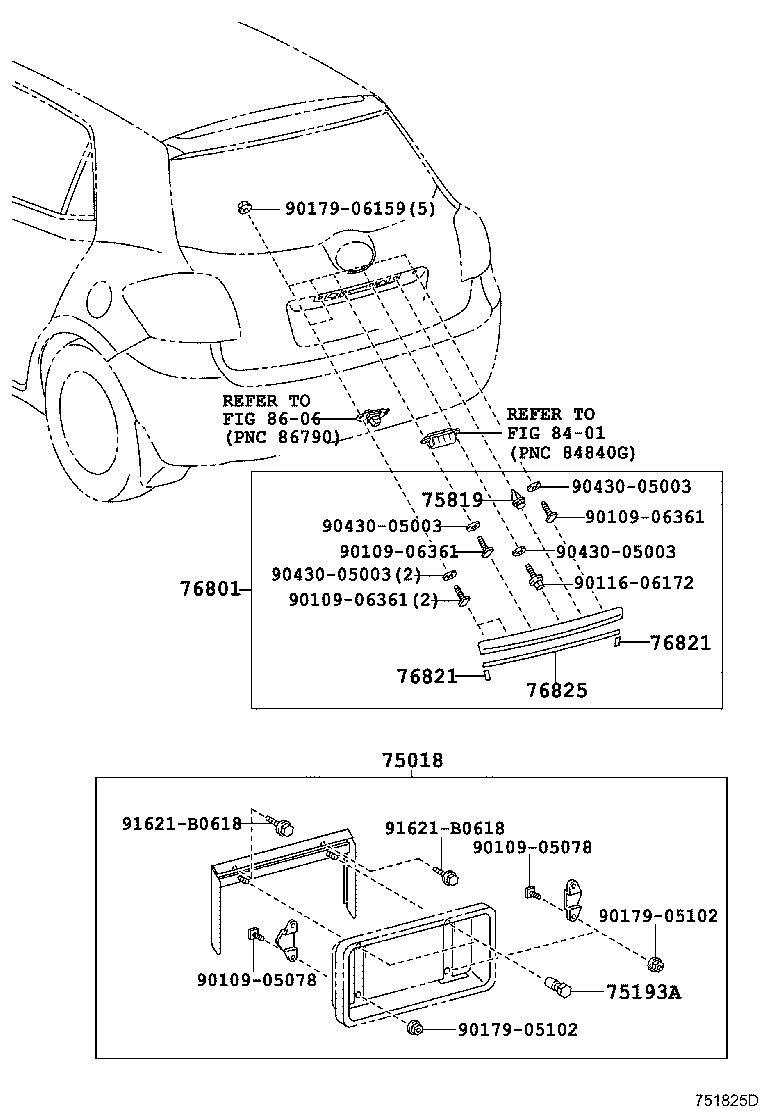

Click highlighted areas on diagram

diagram 75018 75193A 75819 76801 76821 76821 76825 8401 8606 9010905078 9010905078 9010906361 9010906361 9010906361 9011606172 9017905102 9017905102 9017906159 9043005003 9043005003 9043005003 9043005003 91621B0618 91621B0618
Part # Description Qty Price
75018 - FRAME SUB-ASSY, REAR LICENSE PLATE
75010-13030

NZE15#,ZRE15#

 1
75010-13030

NZE15#,ZRE15#

 1
75193A - HOLDER, REAR LICENSE PLATE
75193-44010

NZE15#,ZRE15#

 2
75193-44010

NZE15#,ZRE15#

 2
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

NZE15#,ZRE15#

 1
75819-33010

NZE15#,ZRE15#

 1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-12800B1

NZE15#,ZRE15#

GRAY ME.,1G3

 1
76801-12800A0

NZE15#

SUPER WHITE 2,040

 1
76801-12800B0

NZE15#,ZRE15#

SILVER ME.,1C0

 1
76801-12800J0

NZE15#,ZRE15#

LT.BLUE M.M.,8S1

 1
76801-12810A0

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,WHITE PEARL CS.,070

 1
76801-12800A1

NZE15#,ZRE15#

WHITE PEARL CS.,070

 1
76801-12800J1

NZE15#,ZRE15#

DK.BLUE MC.,8S6

 1
76801-12810B0

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,SILVER ME.,1C0

 1
76801-12800A1

NZE15#,ZRE15#

WHITE PEARL CS.,070

 1
76801-12800C0

NZE15#,ZRE15#

BLACK MC.,209

 1
76801-12810J0

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,LT.BLUE M.M.,8S1

 1
76801-12810J1

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.BLUE MC.,8S6

 1
76801-12810D0

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,RED M.M.,3R3

 1
76801-12810A0

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,WHITE PEARL CS.,070

 1
76801-12800J1

NZE15#,ZRE15#

DK.BLUE MC.,8S6

 1
76801-12810K0

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,PURPLE ME.,9AD

 1
76801-12810D0

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,RED M.M.,3R3

 1
76801-12800B0

NZE15#,ZRE15#

SILVER ME.,1C0

 1
76801-12800J2

NZE15#,ZRE15#

DK.BLUE ME.,8T8

 1
76801-12800D1

NZE15#,ZRE15#

RED M.M.,3R3

 1
76801-12810C0

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,BLACK MC.,209

 1
76801-12810J0

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,LT.BLUE M.M.,8S1

 1
76801-12800K0

NZE15#,ZRE15#

PURPLE ME.,9AD

 1
76801-12800C0

NZE15#,ZRE15#

BLACK MC.,209

 1
76801-12810B1

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,GRAY ME.,1G3

 1
76801-12810C0

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,BLACK MC.,209

 1
76801-12800B1

NZE15#,ZRE15#

GRAY ME.,1G3

 1
76801-12810J1

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.BLUE MC.,8S6

 1
76801-12800J0

NZE15#,ZRE15#

LT.BLUE M.M.,8S1

 1
76801-12810B0

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,SILVER ME.,1C0

 1
76801-12810J2

NZE15#,ZRE15#

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.BLUE ME.,8T8

 1
76801-12800D1

NZE15#,ZRE15#

RED M.M.,3R3

 1
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-12200

NZE15#,ZRE15#

 2
76821-12200

NZE15#,ZRE15#

 2
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-12200

NZE15#,ZRE15#

 2
76821-12200

NZE15#,ZRE15#

 2
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-12040

NZE15#,ZRE15#

 1
76825-12040

NZE15#,ZRE15#

 1
Common parts
90109-05078
90109-06361
90116-06172
90179-05102
90179-06159
90430-05003
91621-B0618
Linked diagrams
8401
8606
