NZE151H-BHXNK (2008)
Toyota Auris

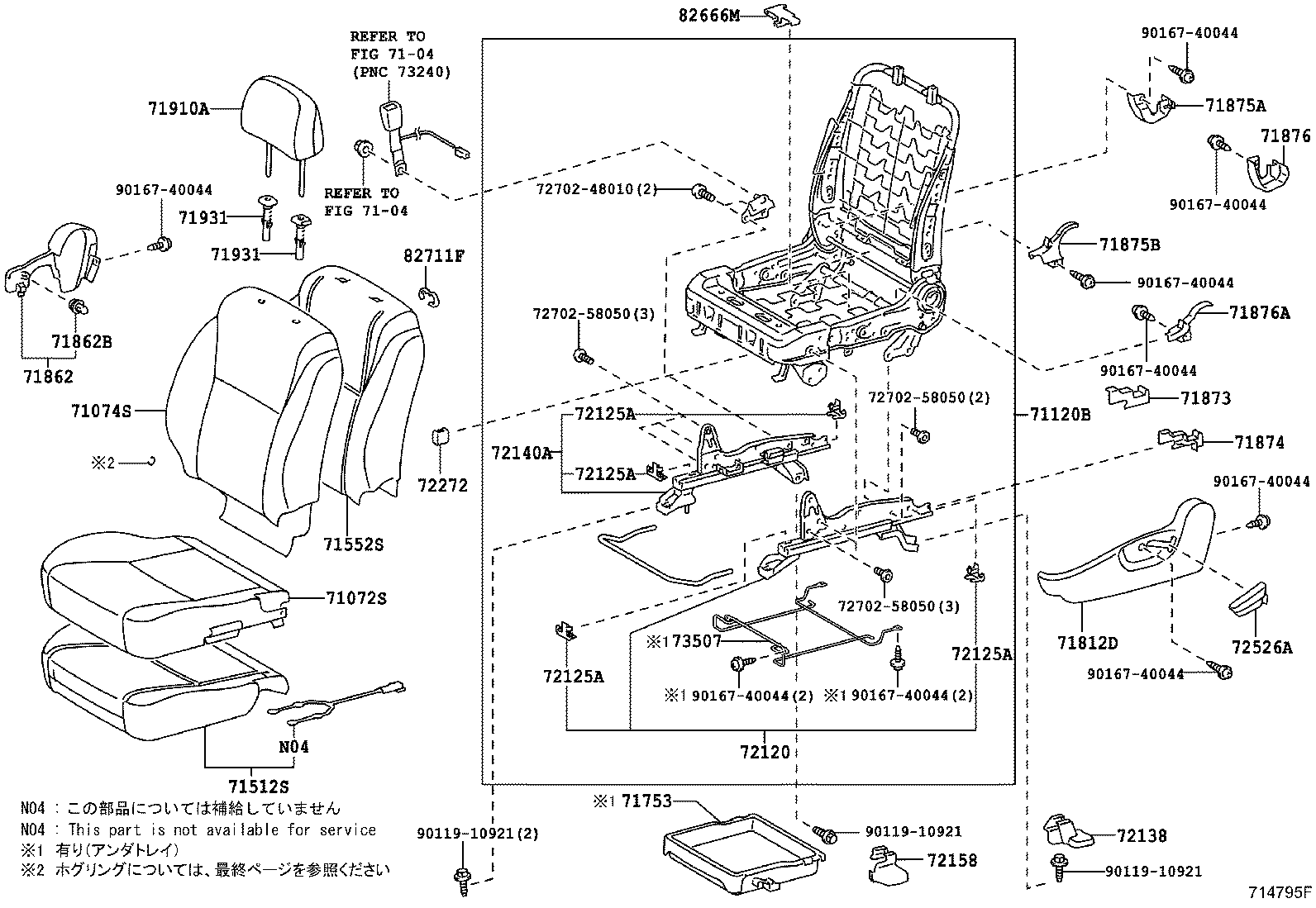

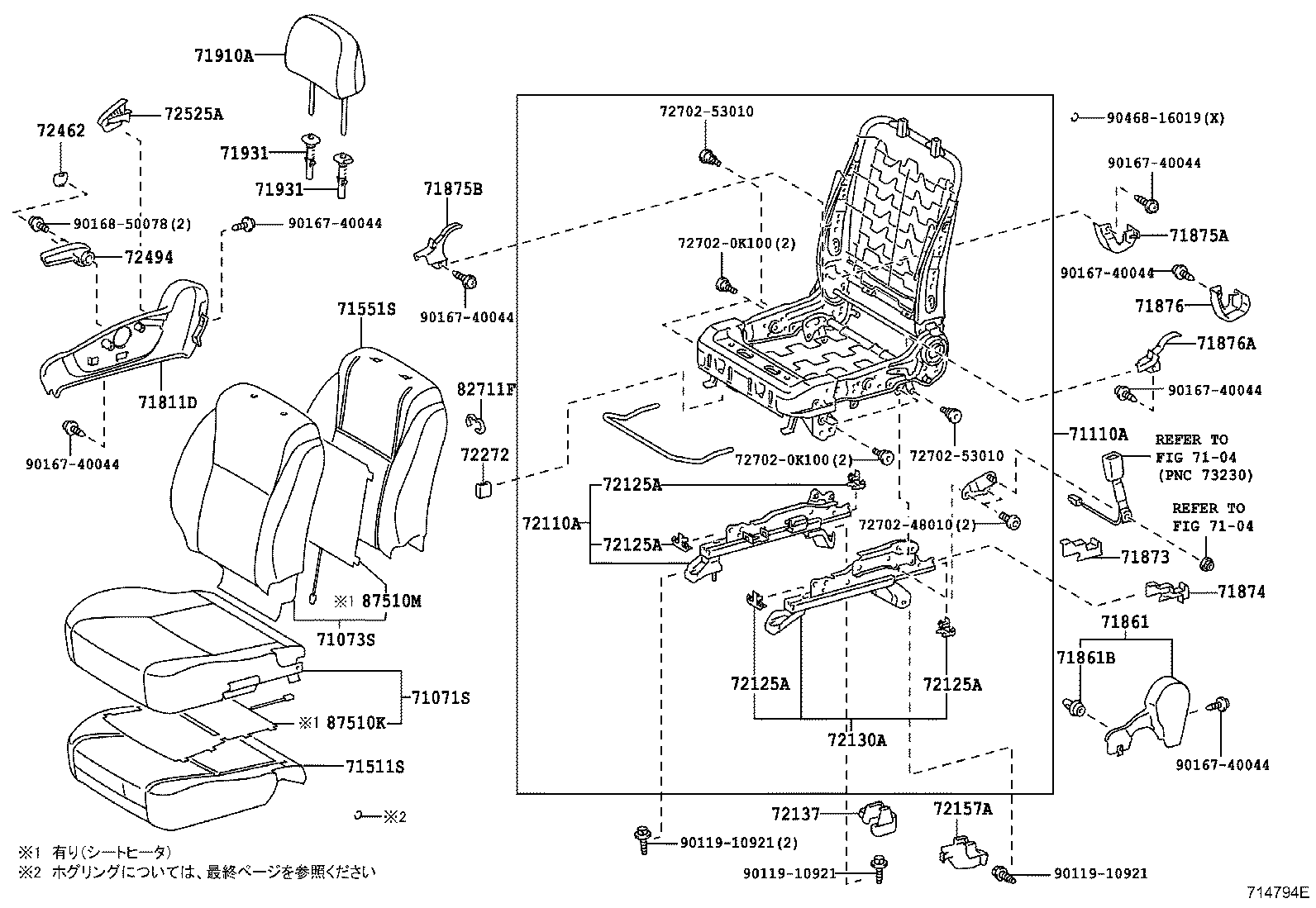

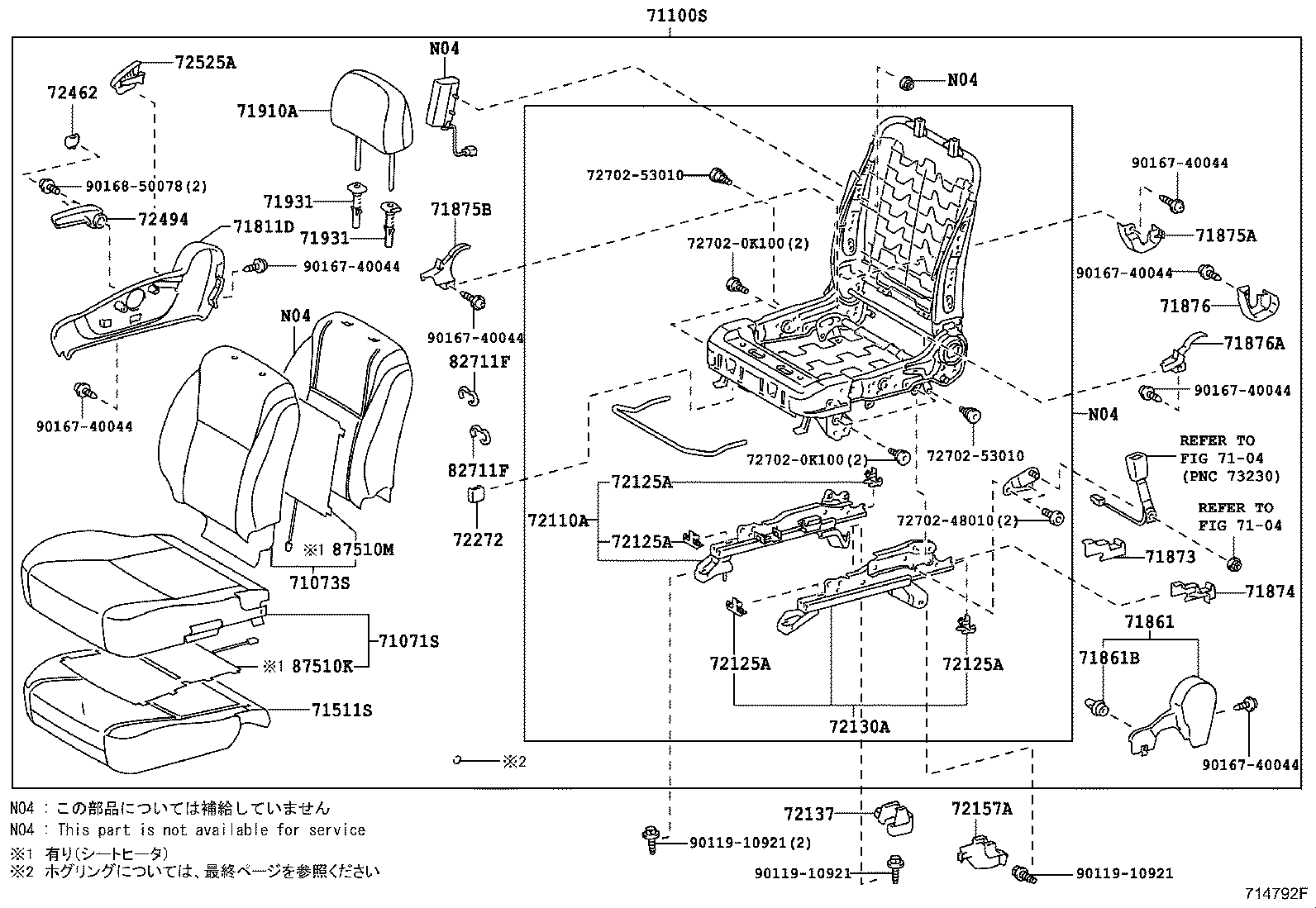

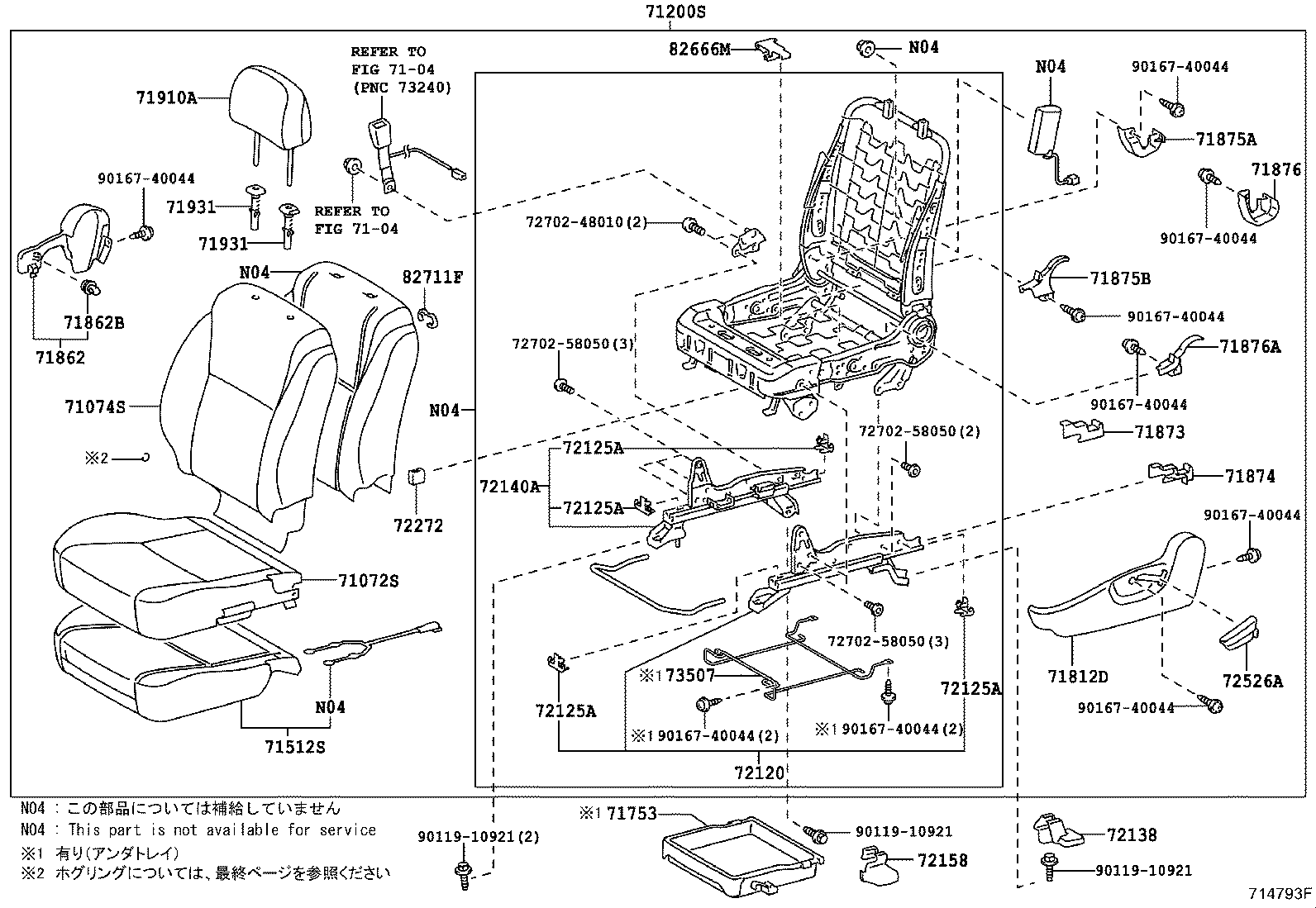

ILLUST NO. 1 OF 2(0610- )CVFC ; (0910-1010)6F
ｳﾝﾃﾝｾｷ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-12E60B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12E60B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12E60B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12M70B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71071-12E70B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12L30B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12L30B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71071-12M80B2 |
NZE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12M80B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12E70B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10E1 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-12E70B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12L30B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71071-12E60B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10E1 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71071-12L30B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12L30B4 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12M80B2 |
NZE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12E70B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71071-12M80B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10E1 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71071-12C10B6 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71071-12L30E0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71071-12L30E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71071-12M70B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71071-12L30E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-12E90B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71073-12N40B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71073-12F00B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12E90B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12D70B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90B3 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12D70B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90B3 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12F00B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12N50B2 |
NZE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12N50B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12D70B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71073-12D70B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71073-12D70E1 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71073-12D70E1 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-12E90B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12D70E1 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71073-12D70B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12E90B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90E0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-12F00B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12F00B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90B3 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90B3 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-12K90B3 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12N50B2 |
NZE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12N40B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-12N50B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-12G70B9 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-12J00B6 |
NZE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-12G70B9 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-12J00B6 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-12J50B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-12J50B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-12G70E3 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71100-12G70E3 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71100-12G70B9 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-12G70B9 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-12J00B6 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-12G70B9 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-12J50B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-12J00B6 |
NZE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71100-12J50B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12A80 |
NZE15#,ZRE15# |
1 | ||
| 71511-12A80 |
NZE15#,ZRE15# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42090B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71811-42090E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 71811-42090B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12280B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71861-12280B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71861-12280E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-33020 |
NZE15#,ZRE15# |
1 | ||
| 71769-33020 |
NZE15#,ZRE15# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
NZE15#,ZRE15# |
2 | ||
| 71873-42030 |
NZE15#,ZRE15# |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
NZE15#,ZRE15# |
2 | ||
| 71874-42020 |
NZE15#,ZRE15# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52170B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-52170B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-52170E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-60160E2 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52160B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876-52160E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71876-52160B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71876-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12B30B3 |
NZE15#,ZRE15# DARK GRAY,TRIM1# |
2 | ||
| 71910-12B30B3 |
NZE15#,ZRE15# DARK GRAY,TRIM1# |
2 | ||
| 71910-12B30E2 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
NZE15#,ZRE15# ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZE15#,ZRE15# ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
NZE15#,ZRE15# ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZE15#,ZRE15# ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-12190 |
NZE15#,ZRE15# |
1 | ||
| 72110-12190 |
NZE15#,ZRE15# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12780 |
NZE15#,ZRE15# |
1 | ||
| 72130-12780 |
NZE15#,ZRE15# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-12150B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72137-12150B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12120B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72157-12120B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-12020 |
NZE15#,ZRE15# |
2 | ||
| 72272-12020 |
NZE15#,ZRE15# |
2 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-42010E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 72462-42010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72462-42010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-42010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72494-42010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72494-42010E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42020B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72525-42020E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 72525-42020B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE151,ZRE154 SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
3 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE151 Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE151,ZRE154 SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
3 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE151 Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| Common parts | ||||
| 72702-0K100 | ||||
| 72702-48010 | ||||
| 72702-53010 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(0610- )CVFC ; (0910-1010)6F
ｼﾞｮｼｭｾｷ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-12D30B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12D30B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71072-12L20B2 |
NZE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12E00B6 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12L10B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71072-12E10B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71072-12L20B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12E00B6 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12D30B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12E00B6 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12D30E1 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71072-12D30E1 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71072-12E00B6 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12E10B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80B4 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12D30B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12D30B6 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12D30E1 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71072-12J80E0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71072-12L10B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71072-12E10B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71072-12L20B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71072-12E10B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71072-12L20B2 |
NZE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-12C00B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12D20B4 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12M10B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12P90B0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12M00B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q00B0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q30B0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q20B0 |
NZE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q40B0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12J20B3 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12D40B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12D40B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12M10B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12C00B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q00B0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12M00B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71074-12P90B0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q10B0 |
NZE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12D20B4 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12J20B3 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12P90E0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71074-12Q20B0 |
NZE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q00B0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12P90E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71074-12Q00E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71074-12P90B0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q00E0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71074-12Q40B0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q10B0 |
NZE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q30B0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-12F20B6 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-12K00B8 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-12N70B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-12N50B4 |
NZE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-12F40B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-12N80B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-12F20B6 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-12N70B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-12F40B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-12N70E1 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71200-12N70E1 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71200-12N50B4 |
NZE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-12K00B8 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-12N70B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71200-12N80B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-12040 |
NZE15#,ZRE15# |
1 | ||
| 71502-12040 |
NZE15#,ZRE15# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-12020 |
NZE15#,ZRE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 71753-12020 |
NZE15#,ZRE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71812-42090E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 71812-42090B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12260B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71862-12260B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71862-12260E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-33020 |
NZE15#,ZRE15# |
1 | ||
| 71769-33020 |
NZE15#,ZRE15# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
NZE15#,ZRE15# |
2 | ||
| 71873-42030 |
NZE15#,ZRE15# |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
NZE15#,ZRE15# |
2 | ||
| 71874-42020 |
NZE15#,ZRE15# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52170B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-52170B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-52170E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-60160E2 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52160B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876-52160E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71876-52160B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71876-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12B30B3 |
NZE15#,ZRE15# DARK GRAY,TRIM1# |
2 | ||
| 71910-12B30B3 |
NZE15#,ZRE15# DARK GRAY,TRIM1# |
2 | ||
| 71910-12B30E2 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
NZE15#,ZRE15# ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZE15#,ZRE15# ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
NZE15#,ZRE15# ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZE15#,ZRE15# ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-12160 |
NZE15#,ZRE15# |
1 | ||
| 72120-12160 |
NZE15#,ZRE15# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-12120B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72138-12120B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12660 |
NZE15#,ZRE15# |
1 | ||
| 72140-12660 |
NZE15#,ZRE15# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12110B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72158-12110B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-12020 |
NZE15#,ZRE15# |
2 | ||
| 72272-12020 |
NZE15#,ZRE15# |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72526-42010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72526-42010E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 73507 - RAIL SUB-ASSY, FRONT SEAT | ||||
| 73507-12010 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 73507-12010 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-12420 |
NZE15#,ZRE15# |
1 | ||
| 82666-12420 |
NZE15#,ZRE15# |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE151,ZRE154 SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
3 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE151 Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 1 OF 2(0610- )CVFC ; (0910-1010)6F
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-12E60B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12E60B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12E60B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12M70B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71071-12E70B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12L30B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12L30B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71071-12M80B2 |
NZE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12M80B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12E70B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10E1 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71071-12E70B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12L30B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71071-12E60B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10E1 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71071-12L30B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12L30B4 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12M80B2 |
NZE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12E70B8 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71071-12M80B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71071-12C10E1 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71071-12C10B6 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71071-12L30E0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71071-12L30E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71071-12M70B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71071-12L30E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-12D70B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71073-12E90B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71073-12N40B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71073-12F00B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12E90B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12D70B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90B3 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90B3 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12F00B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12N50B2 |
NZE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12N50B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12D70B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71073-12D70B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71073-12D70E1 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71073-12D70E1 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71073-12E90B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12D70E1 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71073-12D70B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12E90B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90E0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-12F00B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12F00B7 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90B3 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90B3 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-12K90B3 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12N50B2 |
NZE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12N40B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71073-12K90E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-12N50B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-12100 |
NZE15#,ZRE15# |
1 | ||
| 71110-12100 |
NZE15#,ZRE15# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12A80 |
NZE15#,ZRE15# |
1 | ||
| 71511-12A80 |
NZE15#,ZRE15# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12880 |
NZE15#,ZRE15# |
1 | ||
| 71551-12880 |
NZE15#,ZRE15# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42090B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71811-42090E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 71811-42090B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12280B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71861-12280B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71861-12280E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-33020 |
NZE15#,ZRE15# |
1 | ||
| 71769-33020 |
NZE15#,ZRE15# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
NZE15#,ZRE15# |
2 | ||
| 71873-42030 |
NZE15#,ZRE15# |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
NZE15#,ZRE15# |
2 | ||
| 71874-42020 |
NZE15#,ZRE15# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52170B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-52170B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-52170E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-60160E2 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52160B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876-52160E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71876-52160B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71876-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12B30B3 |
NZE15#,ZRE15# DARK GRAY,TRIM1# |
2 | ||
| 71910-12B30B3 |
NZE15#,ZRE15# DARK GRAY,TRIM1# |
2 | ||
| 71910-12B30E2 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
NZE15#,ZRE15# ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZE15#,ZRE15# ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
NZE15#,ZRE15# ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZE15#,ZRE15# ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-12190 |
NZE15#,ZRE15# |
1 | ||
| 72110-12190 |
NZE15#,ZRE15# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12780 |
NZE15#,ZRE15# |
1 | ||
| 72130-12780 |
NZE15#,ZRE15# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-12150B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72137-12150B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12120B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72157-12120B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-12020 |
NZE15#,ZRE15# |
2 | ||
| 72272-12020 |
NZE15#,ZRE15# |
2 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-42010E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 72462-42010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72462-42010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-42010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72494-42010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72494-42010E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42020B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72525-42020E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 72525-42020B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE151,ZRE154 SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
3 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE151 Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| Common parts | ||||
| 72702-0K100 | ||||
| 72702-48010 | ||||
| 72702-53010 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90468-16019 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(0610- )CVFC ; (0910-1010)6F
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-12D30B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12D30B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71072-12L20B2 |
NZE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12E00B6 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12L10B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71072-12E10B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71072-12L20B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12E00B6 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12D30B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12E00B6 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12D30E1 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71072-12D30E1 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,GREGE,TRIM4# |
1 | ||
| 71072-12E00B6 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12E10B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80B4 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12D30B6 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12D30B6 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80B4 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12D30E1 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71072-12J80E0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71072-12L10B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71072-12E10B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71072-12L20B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12J80E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71072-12E10B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71072-12L20B2 |
NZE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-12C00B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12D20B4 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12M10B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12P90B0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12M00B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q00B0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q30B0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q20B0 |
NZE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q40B0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12J20B3 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12D40B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12D40B5 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12M10B2 |
NZE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12C00B5 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q00B0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12M00B2 |
NZE15# DK.GRAY,TRIM1# |
1 | ||
| 71074-12P90B0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q10B0 |
NZE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12D20B4 |
NZE15# Mﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12J20B3 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12P90E0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71074-12Q20B0 |
NZE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q00B0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12P90E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71074-12Q00E0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71074-12P90B0 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q00E0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),GREGE,TRIM4# |
1 | ||
| 71074-12Q40B0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席),DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q10B0 |
NZE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12Q30B0 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-12170 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 71120-12170 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 71120-12030 |
NZE15#,ZRE15# |
1 | ||
| 71120-12030 |
NZE15#,ZRE15# |
1 | ||
| 71120-12170 |
NZE15#,ZRE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 71120-12170 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 71120-12170 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 71120-12170 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 71120-12170 |
NZE15#,ZRE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-12040 |
NZE15#,ZRE15# |
1 | ||
| 71502-12040 |
NZE15#,ZRE15# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-12340 |
NZE15#,ZRE15# |
1 | ||
| 71552-12340 |
NZE15#,ZRE15# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-12020 |
NZE15#,ZRE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 71753-12020 |
NZE15#,ZRE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71812-42090E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 71812-42090B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12260B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71862-12260B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71862-12260E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-33020 |
NZE15#,ZRE15# |
1 | ||
| 71769-33020 |
NZE15#,ZRE15# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
NZE15#,ZRE15# |
2 | ||
| 71873-42030 |
NZE15#,ZRE15# |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
NZE15#,ZRE15# |
2 | ||
| 71874-42020 |
NZE15#,ZRE15# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52170B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-52170B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-52170E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-60160E2 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52160B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876-52160E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71876-52160B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71876-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876-60160B3 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12B30B3 |
NZE15#,ZRE15# DARK GRAY,TRIM1# |
2 | ||
| 71910-12B30B3 |
NZE15#,ZRE15# DARK GRAY,TRIM1# |
2 | ||
| 71910-12B30E2 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
NZE15#,ZRE15# ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZE15#,ZRE15# ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010E4 |
NZE15#,ZRE15# ﾛｯｸ無,GREGE,TRIM4# |
2 | ||
| 71931-47010B2 |
NZE15#,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
NZE15#,ZRE15# ﾛｯｸ付,GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NZE15#,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-12160 |
NZE15#,ZRE15# |
1 | ||
| 72120-12160 |
NZE15#,ZRE15# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72125-13040 |
NZE15#,ZRE15# |
8 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-12120B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72138-12120B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12660 |
NZE15#,ZRE15# |
1 | ||
| 72140-12660 |
NZE15#,ZRE15# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12110B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72158-12110B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
1 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-12020 |
NZE15#,ZRE15# |
2 | ||
| 72272-12020 |
NZE15#,ZRE15# |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72526-42010B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72526-42010E1 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 73507 - RAIL SUB-ASSY, FRONT SEAT | ||||
| 73507-12010 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 73507-12010 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席) |
1 | ||
| 73507-12010 |
NZE15#,ZRE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-12420 |
NZE15#,ZRE15# |
1 | ||
| 82666-12420 |
NZE15#,ZRE15# |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# ｼｰﾄ ｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE151,ZRE154 SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
3 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE151 Mﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# Sﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15# Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)&ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| 82711-12120 |
NZE15#,ZRE15# ｼｰﾄｱﾝﾀﾞﾄﾚｲ−有り(助手席)&SRSｴｱﾊﾞｯｸﾞ−有り(ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ)&膝衝撃吸収ﾊﾟｯﾄﾞ |
4 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
