NZE151H-BHXNK (2008)

Toyota Auris

Production Dec 2008 - Oct 2009
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)NZE151

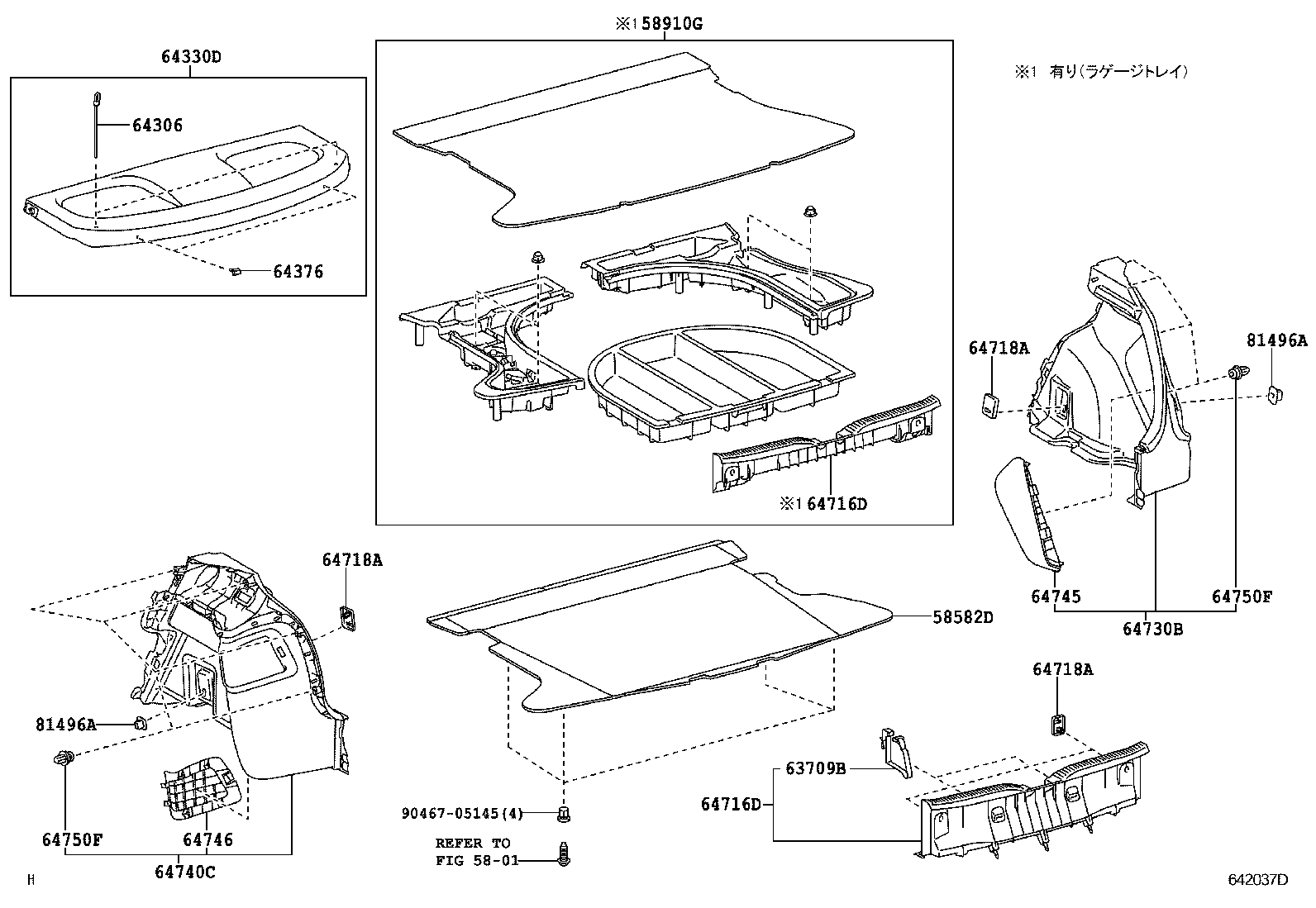

Click highlighted areas on diagram

diagram 5801 58582D 58910G 63709B 64306 64330D 64376 64716D 64716D 64718A 64718A 64718A 64730B 64740C 64745 64746 64750F 64750F 81496A 81496A 9046705145
Part # Description Qty Price
58582D - MAT, REAR FLOOR, REAR
58570-12450C1

NZE151

BLACK,TRIM1#,4#

 1
58570-12450C1

NZE151

BLACK,TRIM1#,4#

 1
58910G - BOX ASSY
58910-12600

NZE151

ﾗｹﾞｰｼﾞ ﾄﾚｲ−有り(右 & 左 & 中央)

 1
58910-12600

NZE151

ﾗｹﾞｰｼﾞﾄﾚｲ−有り(右&左&中央)

 1
63709B - BAND SUB-ASSY, ROOM RACK
63709-12051C0

NZE151

BLACK,TRIM1#,4#

 2
63709-12051C0

NZE151

BLACK,TRIM1#,4#

 2
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-12081

NZE15#,ZRE15#

 2
64306-12080

NZE15#

特殊用途ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞ P席 + ｸﾚｰﾝ

 2
64306-12080

NZE15#,ZRE15#

 2
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-12A00C1

NZE15#,ZRE15#

BLACK,TRIM1#,4#

 1
64330-12A00C1

NZE15#

特殊用途ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞ P席 + ｸﾚｰﾝ,BLACK,TRIM1#,4#

 1
64330-12A01C1

NZE15#,ZRE15#

BLACK,TRIM1#,4#

 1
64376 - SPACER, PACKAGE TRAY TRIM, NO.2
64376-12020

NZE15#,ZRE15#

 2
64376-12020

NZE15#

特殊用途ﾊﾟｯｹｰｼﾞ−ｳｪﾙｷｬﾌﾞ P席 + ｸﾚｰﾝ

 2
64376-12020

NZE15#,ZRE15#

 2
64716D - COVER, DECK TRIM, REAR
64716-12320B0

NZE151

ﾗｹﾞｰｼﾞ ﾄﾚｲ−有り(右 & 左 & 中央),DK.GRAY,TRIM1#,4#

 1
64716-12310B0

NZE151

DK.GRAY,TRIM1#,4#

 1
64716-12320B0

NZE151

ﾗｹﾞｰｼﾞﾄﾚｲ−有り(右&左&中央),DK.GRAY,TRIM1#,4#

 1
64716-12310B0

NZE151

DK.GRAY,TRIM1#,4#

 1
64716D - COVER, DECK TRIM, REAR
64716-12320B0

NZE151

ﾗｹﾞｰｼﾞ ﾄﾚｲ−有り(右 & 左 & 中央),DK.GRAY,TRIM1#,4#

 1
64716-12310B0

NZE151

DK.GRAY,TRIM1#,4#

 1
64716-12320B0

NZE151

ﾗｹﾞｰｼﾞﾄﾚｲ−有り(右&左&中央),DK.GRAY,TRIM1#,4#

 1
64716-12310B0

NZE151

DK.GRAY,TRIM1#,4#

 1
64718A - COVER, DECK TRIM SERVICE HOLE
64718-12020B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 4
64718-12020B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 4
64718A - COVER, DECK TRIM SERVICE HOLE
64718-12020B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 4
64718-12020B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 4
64718A - COVER, DECK TRIM SERVICE HOLE
64718-12020B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 4
64718-12020B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 4
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-12340C0

NZE15#,ZRE15#

BLACK,TRIM1#,4#

 1
64730-12340C0

NZE15#,ZRE15#

BLACK,TRIM1#,4#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-12340C0

NZE15#,ZRE15#

BLACK,TRIM1#,4#

 1
64740-12340C0

NZE15#,ZRE15#

BLACK,TRIM1#,4#

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-12160B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
64745-12160B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-12140B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
64746-12140B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10161

NZE15#,ZRE15#

 8
90467-10161

NZE15#,ZRE15#

 8
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10161

NZE15#,ZRE15#

 8
90467-10161

NZE15#,ZRE15#

 8
81496A - GUIDE, REAR COMBINATION LAMP
81496-12030

NZE15#,ZRE15#

 2
81496-12030

NZE15#,ZRE15#

 2
81496A - GUIDE, REAR COMBINATION LAMP
81496-12030

NZE15#,ZRE15#

 2
81496-12030

NZE15#,ZRE15#

 2
Common parts
90467-05145
Linked diagrams
5801
