NZE151H-BHXNK (2008)

Toyota Auris

Production Dec 2008 - Oct 2009
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)

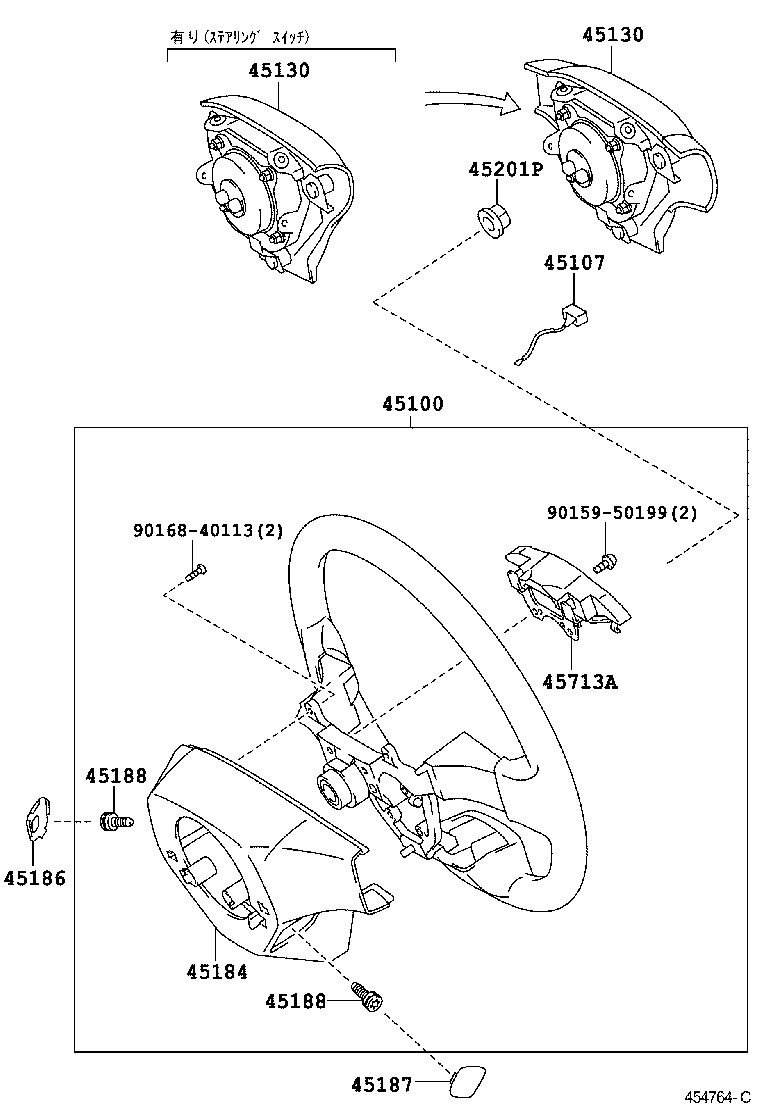

Click highlighted areas on diagram

3-ｽﾎﾟｰｸ

diagram 45100 45107 45130 45130 45184 45186 45187 45188 45188 45201P 45713A 9015950199 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-12D50B0

NZE15#,ZRE15#

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#,4#

 1
45100-12D60B0

NZE15#,ZRE15#

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1#,4#

 1
45100-12D60B0

NZE15#,ZRE15#

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,Sﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1#,4#

 1
45100-12D60B0

NZE15#

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,Mﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#

 1
45100-12D50B0

NZE15#,ZRE15#

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#,4#

 1
45100-12D60B0

NZE15#

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,Mﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-48010

NZE15#,ZRE15#

 1
45107-48010

NZE15#,ZRE15#

 1
45107-48010

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
45107-48010

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
45107-48010

NZE15#

Sﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ

 1
45130 - BUTTON ASSY, HORN
45130-12A60B0

NZE15#

Sﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#

 1
45130-12A60B0

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#

 1
45130-12A50B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45130-12A50B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45130-12A60B0

NZE15#

Sﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#

 1
45130-12A60B0

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#

 1
45130 - BUTTON ASSY, HORN
45130-12A60B0

NZE15#

Sﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#

 1
45130-12A60B0

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#

 1
45130-12A50B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45130-12A50B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45130-12A60B0

NZE15#

Sﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#

 1
45130-12A60B0

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ,DK.GRAY,TRIM1#,4#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-12340B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45184-12340B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-12020B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45186-12020B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-12020B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45187-12020B0

NZE15#,ZRE15#

DK.GRAY,TRIM1#,4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NZE15#,ZRE15#

長さ=18

 2
45188-60010

NZE15#,ZRE15#

長さ=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NZE15#,ZRE15#

長さ=18

 2
45188-60010

NZE15#,ZRE15#

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

NZE15#,ZRE15#

 1
90179-12071

NZE15#,ZRE15#

 1
45713A - DAMPER, STEERING SHAKE
45713-12080

NZE15#,ZRE15#

 1
45713-12080

NZE15#,ZRE15#

 1
Common parts
90159-50199
90168-40113
