NZE151H-BHXNK (2006)

Toyota Auris

Production Oct 2006 - Dec 2008
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

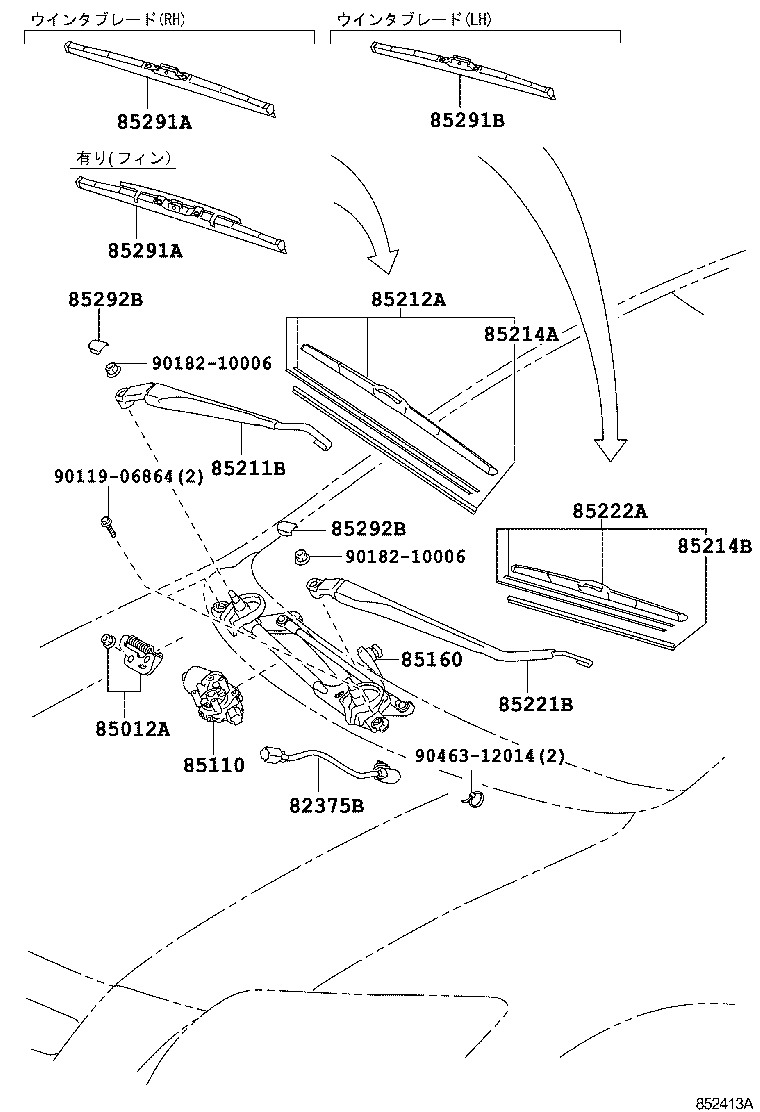

Click highlighted areas on diagram

diagram 82375B 85012A 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 85292B 85292B 9011906864 9018210006 9018210006 9046312014
Part # Description Qty Price
82375B - WIRE, WIPER MOTOR
82375-12320

NZE15#,ZRE15#

 1
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-58030

NZE15#,ZRE15#

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-1A080

NZE15#,ZRE15#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-12A00

NZE15#,ZRE15#

 1
85211B - ARM, FRONT WIPER, RH
85211-12490

NZE15#,ZRE15#

 1
85211-12491

NZE15#,ZRE15#

 1
85212A - BLADE, FR WIPER, RH
85212-12450

NZE15#,ZRE15#

 1
85212-12450

NZE15#,ZRE15#

 1
85214A - RUBBER, WIPER, RH
85214-68020

NZE15#,ZRE15#

 1
85214B - RUBBER, WIPER, LH
85214-28090

NZE15#,ZRE15#

 1
85221B - ARM, FRONT WIPER, LH
85221-12430

NZE15#,ZRE15#

 1
85221-12431

NZE15#,ZRE15#

 1
85222A - BLADE, FR WIPER, LH
85222-28160

NZE15#,ZRE15#

 1
85222-28160

NZE15#,ZRE15#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-44070

NZE15#,ZRE15#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291-44090

NZE15#,ZRE15#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291-12090

NZE15#,ZRE15#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-44070

NZE15#,ZRE15#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291-44090

NZE15#,ZRE15#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291-12090

NZE15#,ZRE15#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-44080

NZE15#,ZRE15#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NZE15#,ZRE15#

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NZE15#,ZRE15#

 2
Common parts
90119-06864
90182-10006
90463-12014
