NZE151H-BHXNK (2006)
Toyota Auris
ILLUST NO. 1 OF 2(0610- )
ﾌﾛﾝﾄ ｼｰﾄﾍﾞﾙﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-12010B0 |
NZE15#,ZRE15# LT.GRAY,TRIM1# |
1 | ||
| 73023-12010E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-12010E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 73024-12010B0 |
NZE15#,ZRE15# LT.GRAY,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
NZE15#,ZRE15# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
NZE15#,ZRE15# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-12A60C2 |
NZE15#,ZRE15# BLACK,TRIM1# |
1 | ||
| 73210-12A60E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
NZE15#,ZRE15# ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
NZE15#,ZRE15# ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
NZE15#,ZRE15# ｸﾞﾚｰ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-12A40E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 73220-12A40C2 |
NZE15#,ZRE15# BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-12780B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 73230-12780E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-12050B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-12050B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1#,4# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-12790E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 73230-12790B0 |
NZE15#,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90109-11060 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91673-80616 | ||||

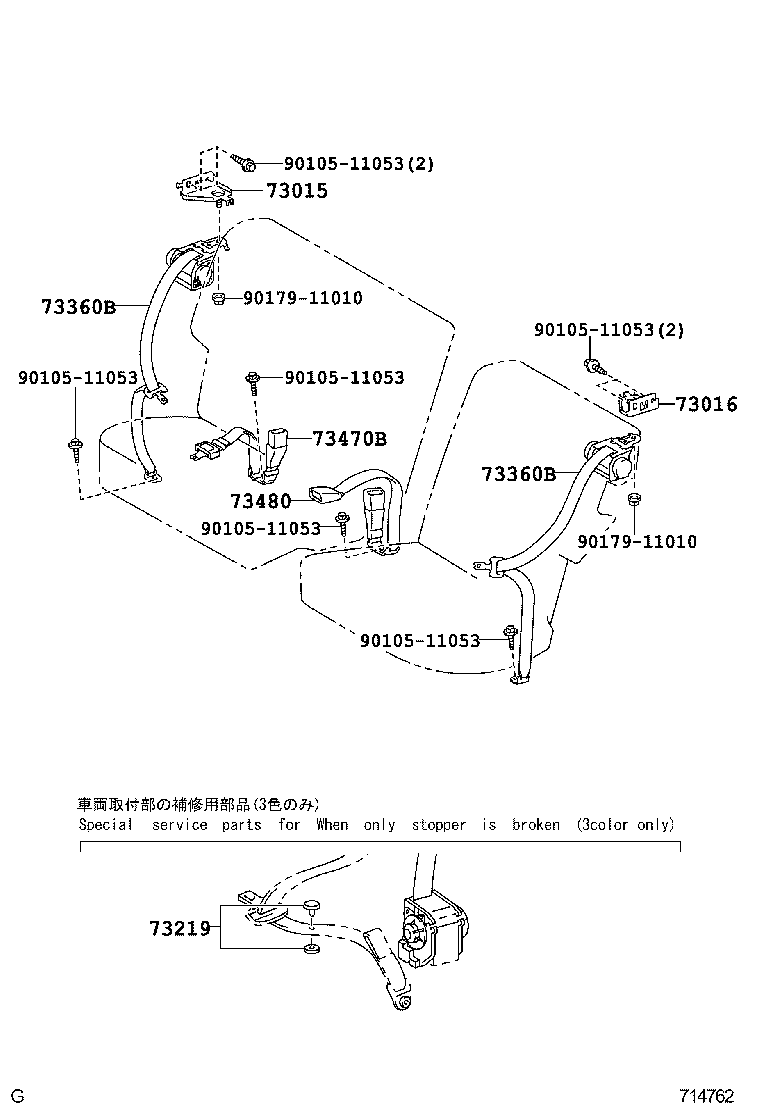

ILLUST NO. 2 OF 2(0610-0910)
ﾘﾔ ｼｰﾄﾍﾞﾙﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-12030 |
NZE15#,ZRE15# |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-12020 |
NZE15#,ZRE15# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
NZE15#,ZRE15# ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
NZE15#,ZRE15# ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
NZE15#,ZRE15# ｸﾞﾚｰ |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-12800E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 73360-12800C1 |
NZE15#,ZRE15# BLACK,TRIM1# |
2 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-12800E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
2 | ||
| 73360-12800C1 |
NZE15#,ZRE15# BLACK,TRIM1# |
2 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-12170E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| 73470-12170C1 |
NZE15#,ZRE15# BLACK,TRIM1# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-12230C1 |
NZE15#,ZRE15# BLACK,TRIM1# |
1 | ||
| 73480-12230E0 |
NZE15#,ZRE15# GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90179-11010 | ||||
