NZE151H-BHXNK (2006)

Toyota Auris

Production Oct 2006 - Dec 2008
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)

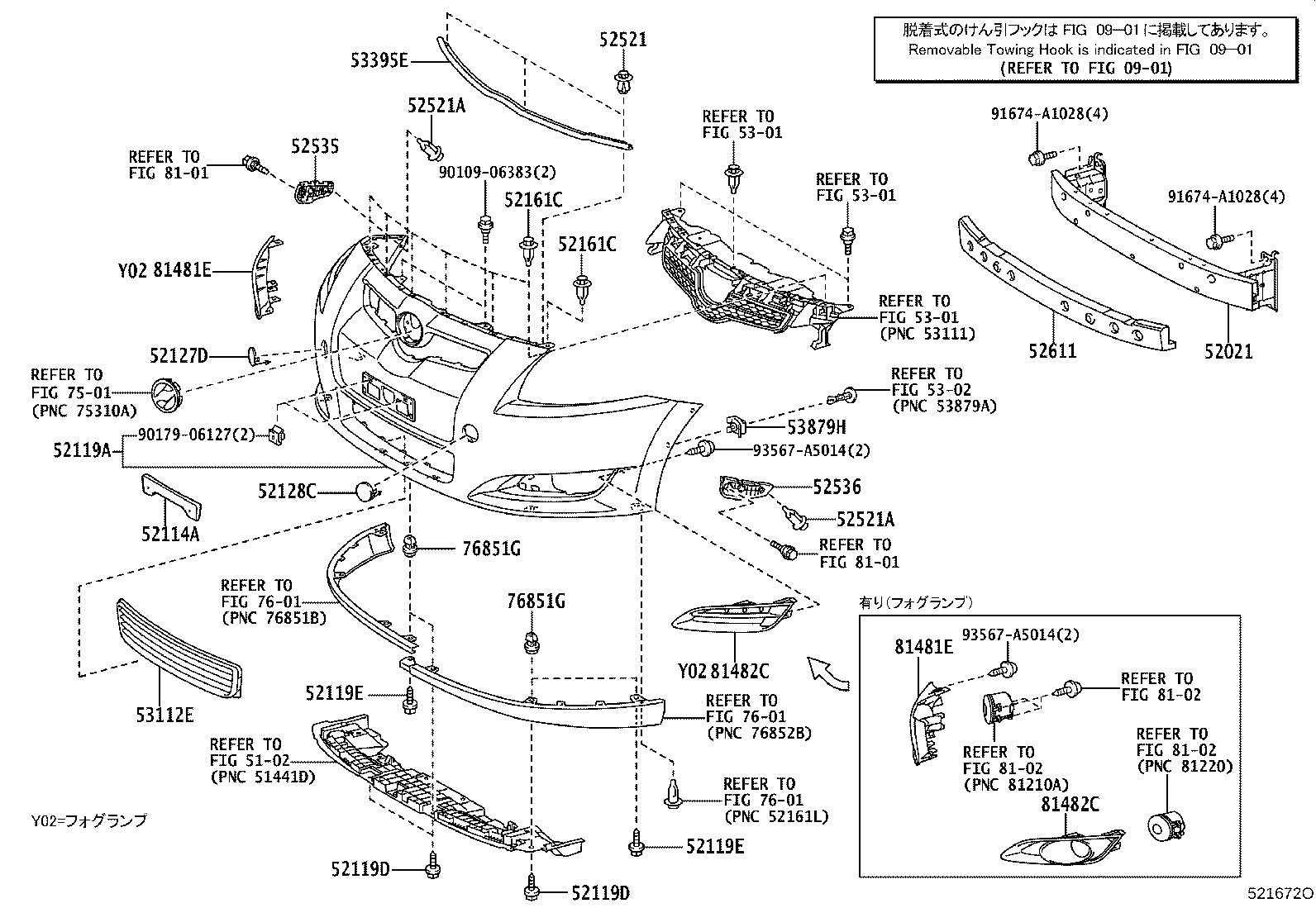

Click highlighted areas on diagram

diagram 0901 5102 52021 52114A 52119A 52119D 52119D 52119E 52119E 52127D 52128C 52161C 52161C 52521 52521A 52521A 52535 52536 52611 5301 5301 5301 5302 53112E 53395E 53879H 7501 7601 7601 7601 76851G 76851G 8101 8101 8102 8102 8102 81481E 81481E 81482C 81482C 9010906383 9017906127 91674A1028 91674A1028 93567A5014 93567A5014
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-12230

NZE15#,ZRE15#

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-52020

NZE15#,ZRE15#

 1
52119A - COVER, FRONT BUMPER
52119-12A40A1

NZE15#,ZRE15#

WHITE PEARL CS.,070

 1
52119-12A40B0

NZE15#,ZRE15#

SILVER ME.,1C0

 1
52119-12A40K0

NZE15#,ZRE15#

PURPLE ME.,9AD

 1
52119-12A40J0

NZE15#,ZRE15#

LT.BLUE M.M.,8S1

 1
52119-12A40B1

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G),GRAY ME.,1G3

 1
52119-12A40C0

NZE15#,ZRE15#

BLACK MC.,209

 1
52119-12A40J1

NZE15#,ZRE15#

DK.BLUE MC.,8S6

 1
52119-12A40D1

NZE15#,ZRE15#

RED M.M.,3R3

 1
52119D - SCREW, NO.1
90159-60488

NZE15#,ZRE15#

 6
52119D - SCREW, NO.1
90159-60488

NZE15#,ZRE15#

 6
52119E - SCREW, NO.2
90159-60383

NZE15#,ZRE15#

 1
52119E - SCREW, NO.2
90159-60383

NZE15#,ZRE15#

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-12220B0

NZE15#,ZRE15#

SILVER ME.,1C0

 1
52127-12220J0

NZE15#,ZRE15#

LT.BLUE M.M.,8S1

 1
52127-12220A1

NZE15#,ZRE15#

WHITE PEARL CS.,070

 1
52127-12220J1

NZE15#,ZRE15#

DK.BLUE MC.,8S6

 1
52127-12220K0

NZE15#,ZRE15#

PURPLE ME.,9AD

 1
52127-12220D1

NZE15#,ZRE15#

RED M.M.,3R3

 1
52127-12220B1

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G),GRAY ME.,1G3

 1
52127-12220C0

NZE15#,ZRE15#

BLACK MC.,209

 1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-12140A1

NZE15#,ZRE15#

WHITE PEARL CS.,070

 1
52128-12140D1

NZE15#,ZRE15#

RED M.M.,3R3

 1
52128-12140J1

NZE15#,ZRE15#

DK.BLUE MC.,8S6

 1
52128-12140B1

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G),GRAY ME.,1G3

 1
52128-12140B0

NZE15#,ZRE15#

SILVER ME.,1C0

 1
52128-12140K0

NZE15#,ZRE15#

PURPLE ME.,9AD

 1
52128-12140C0

NZE15#,ZRE15#

BLACK MC.,209

 1
52128-12140J0

NZE15#,ZRE15#

LT.BLUE M.M.,8S1

 1
52161C - PIECE, FRONT BUMPER
52161-16010

NZE15#,ZRE15#

 8
52161C - PIECE, FRONT BUMPER
52161-16010

NZE15#,ZRE15#

 8
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
90467-05063C0

NZE15#,ZRE15#

BLACK

 3
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05090B1

NZE15#,ZRE15#

DK.GRAY

 2
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05090B1

NZE15#,ZRE15#

DK.GRAY

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-12100

NZE15#,ZRE15#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-12080

NZE15#,ZRE15#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-12180

NZE15#,ZRE15#

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-12120

NZE15#,ZRE15#

塗装不要

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-12040

NZE15#,ZRE15#

 1
53879H - RETAINER, FRONT FENDER LINER
53879-58010

NZE15#,ZRE15#

 2
76851G - GROMMET, SCREW, NO.1
90189-05144

NZE15#,ZRE15#

 7
76851G - GROMMET, SCREW, NO.1
90189-05144

NZE15#,ZRE15#

 7
81481E - COVER, FOG LAMP, RH
81481-12070

NZE15#,ZRE15#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81481-12060

NZE15#,ZRE15#

 1
81481-12070

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)

 1
81481-12070

NZE15#,ZRE15#

Sﾊﾟｯｹｰｼﾞ

 1
81481E - COVER, FOG LAMP, RH
81481-12070

NZE15#,ZRE15#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81481-12060

NZE15#,ZRE15#

 1
81481-12070

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)

 1
81481-12070

NZE15#,ZRE15#

Sﾊﾟｯｹｰｼﾞ

 1
81482C - COVER, FOG LAMP, LH
81482-12050

NZE15#,ZRE15#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81482-12050

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)

 1
81482-12040

NZE15#,ZRE15#

 1
81482-12050

NZE15#,ZRE15#

Sﾊﾟｯｹｰｼﾞ

 1
81482C - COVER, FOG LAMP, LH
81482-12050

NZE15#,ZRE15#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81482-12050

NZE15#

Mﾊﾟｯｹｰｼﾞ&ｸﾞﾚｰｼﾞｭｾﾚｸｼｮﾝ *(G)

 1
81482-12040

NZE15#,ZRE15#

 1
81482-12050

NZE15#,ZRE15#

Sﾊﾟｯｹｰｼﾞ

 1
Common parts
90109-06383
90179-06127
91674-A1028
93567-A5014
