NRE185H-BHXNZ (2015)
Toyota Auris
(1503- )

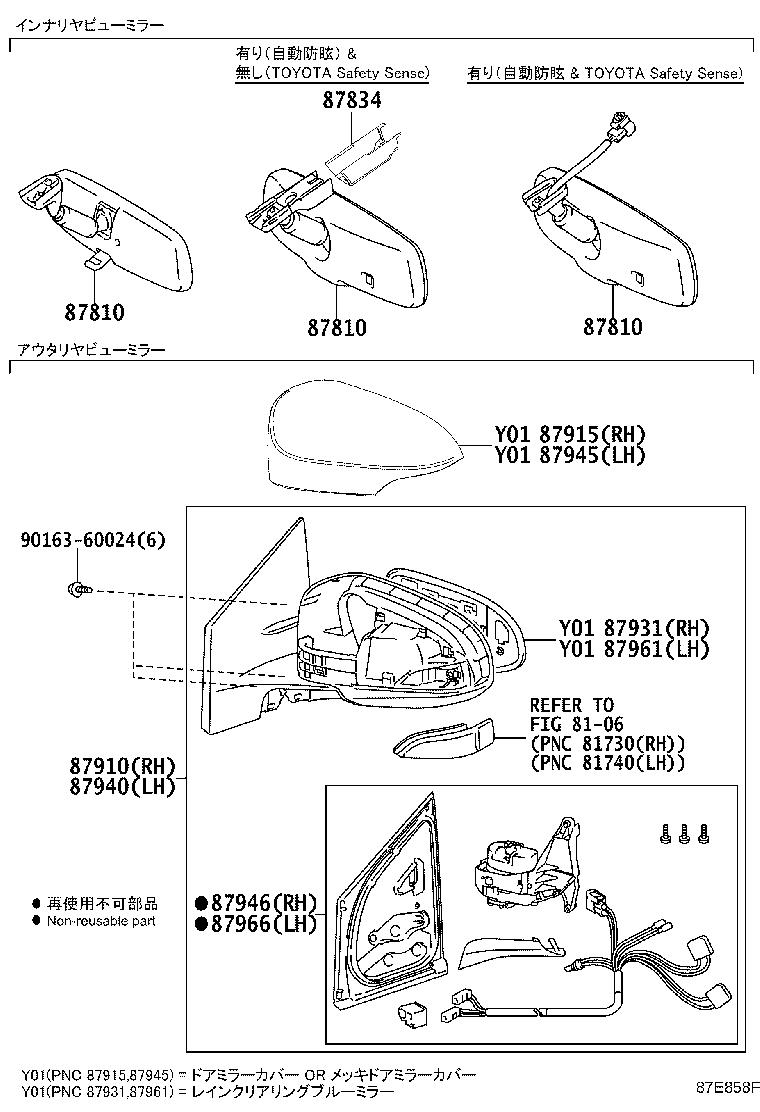

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0W810 |
NRE185 Toyota Safety Sense−無し |
1 | ||
| 87810-0WQ50 |
NRE185 |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0W810 |
NRE185 Toyota Safety Sense−無し |
1 | ||
| 87810-0WQ50 |
NRE185 |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0W810 |
NRE185 Toyota Safety Sense−無し |
1 | ||
| 87810-0WQ50 |
NRE185 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-0W070 |
NRE185 Toyota Safety Sense−無し |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-12J70 |
NRE185,NZE18#,ZRE186,ZWE186 塗装不要 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-33020C1 |
NRE185,NZE18#,ZRE186,ZWE186 BLACK MC.,209 |
1 | ||
| 87915-33020G2 |
NRE185,NZE18#,ZRE186,ZWE186 CITRUS M.M.,6W2 |
1 | ||
| 87915-33020D0 |
NRE185,NZE18#,ZRE186,ZWE186 RED M.M.,3R3 |
1 | ||
| 87915-33020R0 |
NRE185,NZE18#,ZRE186,ZWE186 BLUE ME.,8X7 |
1 | ||
| 87915-33020E2 |
NRE185,NZE18#,ZRE186,ZWE186 ORANGE ME.,4R8 |
1 | ||
| 87915-33020A1 |
NRE185,NZE18#,ZRE186,ZWE186 WHITE PEARL CS.,070 |
1 | ||
| 87915-33020C1 |
NRE185,NZE18#,ZRE186,ZWE186..CVT 有り(ﾃﾞｶｰﾙ(特殊用途ﾊﾟｯｹｰｼﾞ用)),BLACK MC.,070 ,1F7 ,209 ,3R3 ,4R8 ,6W2 ,8X7 |
1 | ||
| 87915-33020B0 |
NRE185,NZE18#,ZRE186,ZWE186 SILVER ME.,1F7 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-12J70 |
NRE185,NZE18#,ZRE186,ZWE186 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-12J70 |
NRE185,NZE18#,ZRE186,ZWE186 塗装不要 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-33020G2 |
NRE185,NZE18#,ZRE186,ZWE186 CITRUS M.M.,6W2 |
1 | ||
| 87945-33020E2 |
NRE185,NZE18#,ZRE186,ZWE186 ORANGE ME.,4R8 |
1 | ||
| 87945-33020A1 |
NRE185,NZE18#,ZRE186,ZWE186 WHITE PEARL CS.,070 |
1 | ||
| 87945-33020R0 |
NRE185,NZE18#,ZRE186,ZWE186 BLUE ME.,8X7 |
1 | ||
| 87945-33020D0 |
NRE185,NZE18#,ZRE186,ZWE186 RED M.M.,3R3 |
1 | ||
| 87945-33020B0 |
NRE185,NZE18#,ZRE186,ZWE186 SILVER ME.,1F7 |
1 | ||
| 87945-33020C1 |
NRE185,NZE18#,ZRE186,ZWE186 BLACK MC.,209 |
1 | ||
| 87945-33020C1 |
NRE185,NZE18#,ZRE186,ZWE186..CVT 有り(ﾃﾞｶｰﾙ(特殊用途ﾊﾟｯｹｰｼﾞ用)),BLACK MC.,070 ,1F7 ,209 ,3R3 ,4R8 ,6W2 ,8X7 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-12J70 |
NRE185,NZE18#,ZRE186,ZWE186 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-12J70 |
NRE185,NZE18#,ZRE186,ZWE186 |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-12J70 |
NRE185,NZE18#,ZRE186,ZWE186 |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||
| Linked diagrams | ||||
| 8106 | ||||
