JZS161-BEPVZ (1997)
Toyota Aristo
ILLUST NO. 3 OF 3(9708- )
| Part # | Description | Qty | Price |
|---|

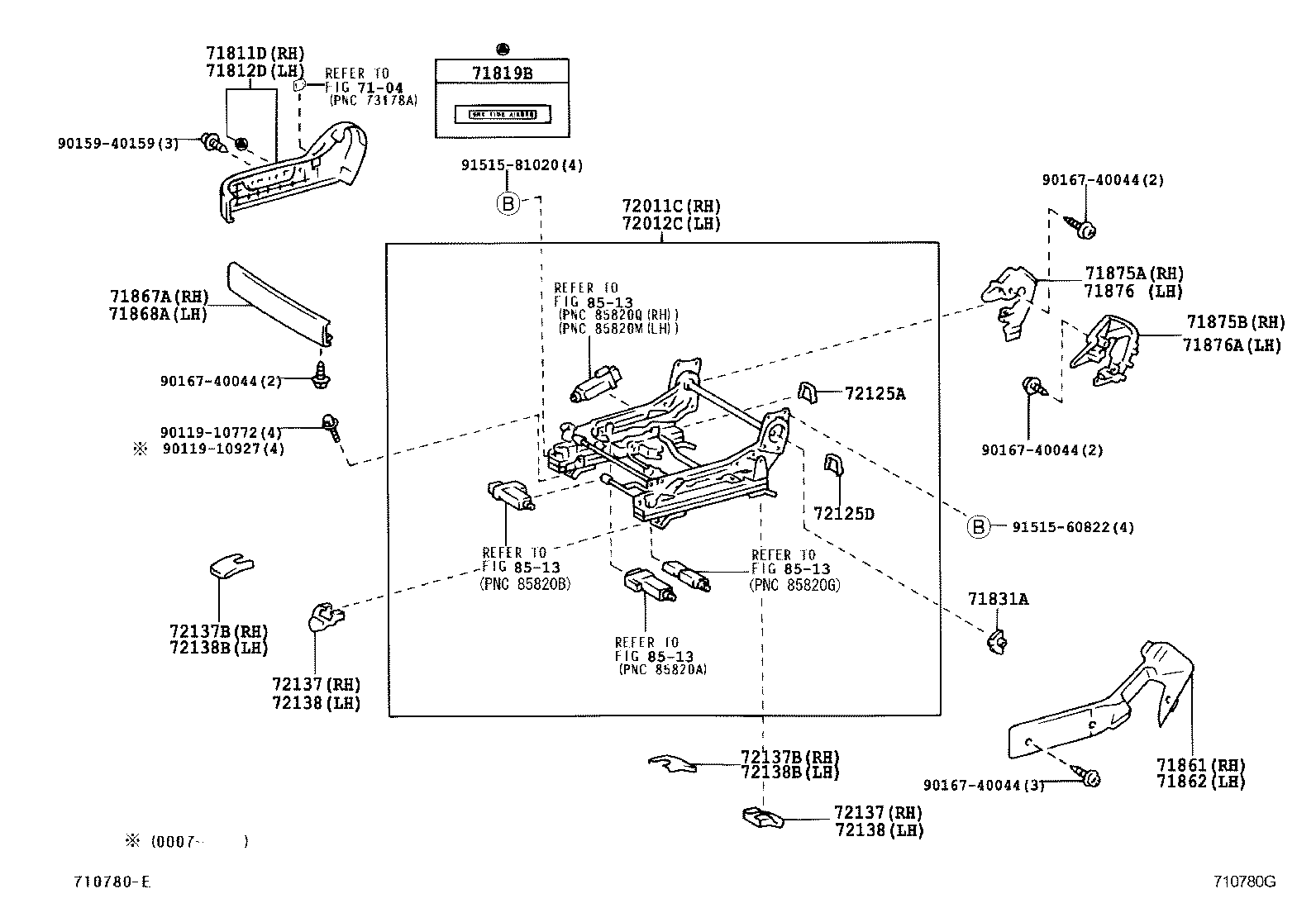

ILLUST NO. 2 OF 3(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-30370B0 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-30370C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71811-30370C0 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71811-30370A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-30280C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71812-30280B0 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-30280A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71812-30280C0 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020A1 |
JZS16# IVORY,TRIM0# |
2 | ||
| 71819-12020B4 |
JZS16# MD.CHARCOAL,TRIM1# |
2 | ||
| 71819-12020C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
2 | ||
| 71819-12020C0 |
JZS16# BLACK,TRIM22,23 |
2 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-30070 |
JZS16# |
4 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-30070C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71861-30090A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71861-30090B0 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-30070B0 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-30070A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71861-30090C0 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-30070A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71862-30090A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71862-30070C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71862-30090C0 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71862-30070B0 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71862-30090B0 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-30090A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71867-30090B0 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71867-30090C0 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71867-30090C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-30130B0 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71868-30130C0 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71868-30130A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71868-30130C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-30100C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71875-30100A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71875-30100B0 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-30100C0 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-30110C0 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71875-30110A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71875-30110B0 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-30110C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-30100C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71876-30100A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71876-30100B0 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30100C0 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-30110C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71876-30110B0 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71876-30110C0 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71876-30110A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-30090 |
JZS16# |
1 | ||
| 72010-30050 |
JZS16# |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-30070 |
JZS16# |
1 | ||
| 72020-30130 |
JZS16# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-30030 |
JZS16# |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-30040 |
JZS16# |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-30110A0 |
JZS16# IVORY,TRIM0# |
2 | ||
| 72137-30110C0 |
JZS16# BLACK,TRIM22,23 |
2 | ||
| 72137-30110B0 |
JZS16# MD.CHARCOAL,TRIM1# |
2 | ||
| 72137-30110C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-30110A0 |
JZS16# IVORY,TRIM0# |
2 | ||
| 72137-30110C0 |
JZS16# BLACK,TRIM22,23 |
2 | ||
| 72137-30110B0 |
JZS16# MD.CHARCOAL,TRIM1# |
2 | ||
| 72137-30110C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-24020B1 |
JZS16# MD.CHARCOAL,TRIM1# |
2 | ||
| 72137-24020A0 |
JZS16# IVORY,TRIM0# |
2 | ||
| 72137-24020C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
2 | ||
| 72137-24020C0 |
JZS16# BLACK,TRIM22,23 |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-24020B1 |
JZS16# MD.CHARCOAL,TRIM1# |
2 | ||
| 72137-24020A0 |
JZS16# IVORY,TRIM0# |
2 | ||
| 72137-24020C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
2 | ||
| 72137-24020C0 |
JZS16# BLACK,TRIM22,23 |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-30110C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
2 | ||
| 72137-30110B0 |
JZS16# MD.CHARCOAL,TRIM1# |
2 | ||
| 72137-30110A0 |
JZS16# IVORY,TRIM0# |
2 | ||
| 72137-30110C0 |
JZS16# BLACK,TRIM22,23 |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-30110C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
2 | ||
| 72137-30110B0 |
JZS16# MD.CHARCOAL,TRIM1# |
2 | ||
| 72137-30110A0 |
JZS16# IVORY,TRIM0# |
2 | ||
| 72137-30110C0 |
JZS16# BLACK,TRIM22,23 |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-24020A0 |
JZS16# IVORY,TRIM0# |
2 | ||
| 72137-24020B1 |
JZS16# MD.CHARCOAL,TRIM1# |
2 | ||
| 72137-24020C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
2 | ||
| 72137-24020C0 |
JZS16# BLACK,TRIM22,23 |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-24020A0 |
JZS16# IVORY,TRIM0# |
2 | ||
| 72137-24020B1 |
JZS16# MD.CHARCOAL,TRIM1# |
2 | ||
| 72137-24020C0 |
JZS16# BLACK,TRIM22,23,24,25,26 |
2 | ||
| 72137-24020C0 |
JZS16# BLACK,TRIM22,23 |
2 | ||
| Common parts | ||||
| 90119-10772 | ||||
| 90119-10927 | ||||
| 90159-40159 | ||||
| 90167-40044 | ||||
| 91515-60822 | ||||
| 91515-81020 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8513 | ||||

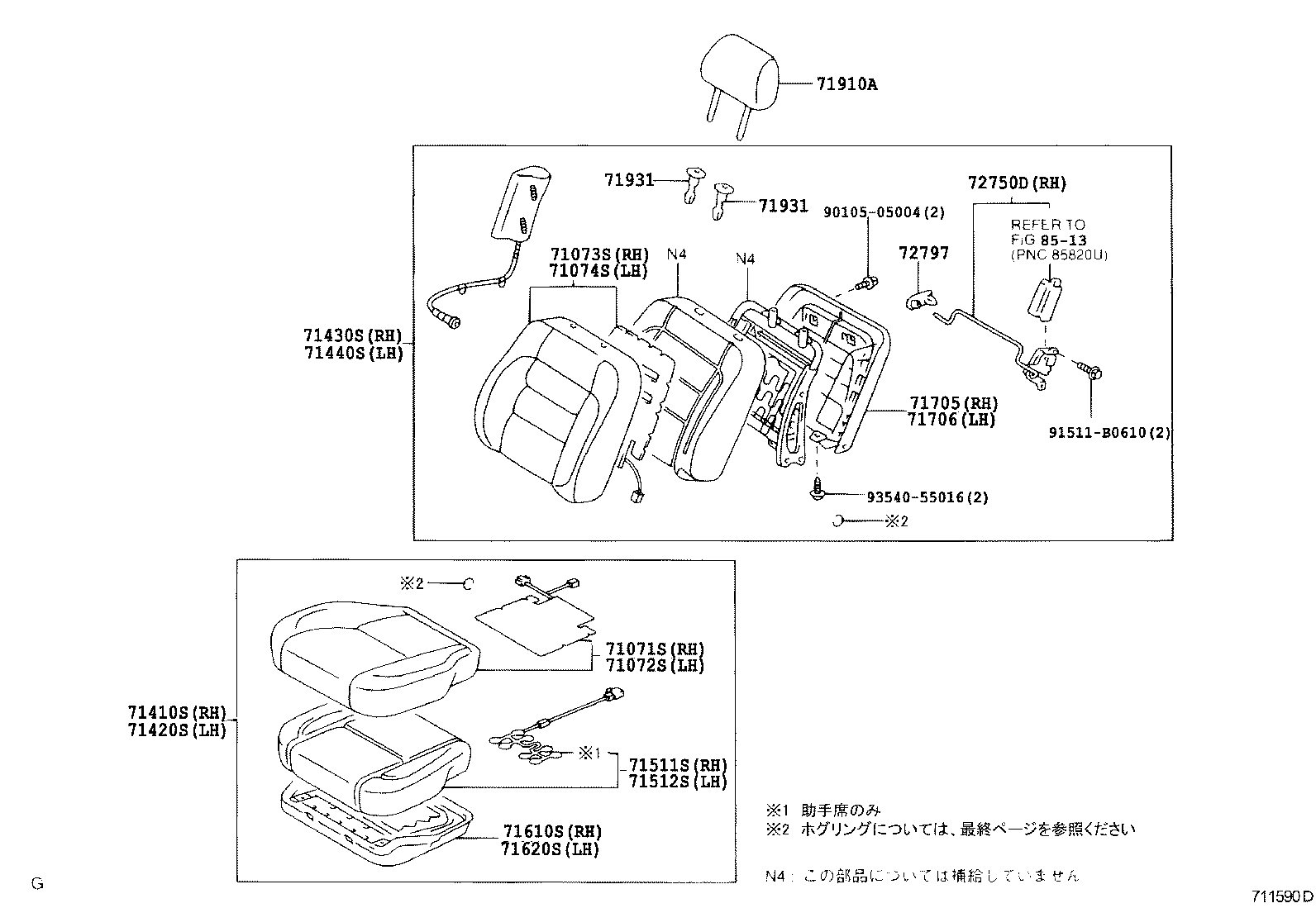

ILLUST NO. 1 OF 3(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3K120B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-3K100B0 |
JZS16# MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-3K100C0 |
JZS16# BLACK,TRIM24 |
1 | ||
| 71071-3K100A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71071-3K100C3 |
JZS16# BLACK,TRIM23 |
1 | ||
| 71071-3K100C1 |
JZS16# BLACK,TRIM26 |
1 | ||
| 71071-3K100C2 |
JZS16# BLACK,TRIM25 |
1 | ||
| 71071-3K300B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71071-3K120A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71071-3K300A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71071-3K300C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71071-3K280C0 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71071-3K120C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71071-3K360B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71071-3K361A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71071-3K362 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71071-3K363C4 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71071-3K363B3 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),CHARCOAL,TRIM1# |
1 | ||
| 71071-3K360A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71071-3K361C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71071-3K280B0 |
JZS16# MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71071-3K363A2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71071-3K360C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71071-3K100A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71071-3K361B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71071-3K280A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3F430A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71072-3F430C3 |
JZS16# BLACK,TRIM23 |
1 | ||
| 71072-3F450B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-3F430C2 |
JZS16# BLACK,TRIM25 |
1 | ||
| 71072-3F610B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71072-3F610C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71072-3F430C1 |
JZS16# BLACK,TRIM26 |
1 | ||
| 71072-3F610A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71072-3F671B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71072-3F671C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71072-3F430C0 |
JZS16# BLACK,TRIM24 |
1 | ||
| 71072-3F450C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71072-3F670B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71072-3F672 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71072-3F590A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71072-3F450A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71072-3F590C0 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71072-3F673B3 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),CHARCOAL,TRIM1# |
1 | ||
| 71072-3F670C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71072-3F673C4 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71072-3F670A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71072-3F430B0 |
JZS16# MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-3F671A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71072-3F590B0 |
JZS16# MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71072-3F673A2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71072-3F430A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3F620A1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71073-3F590C7 |
JZS16# BLACK,TRIM23 |
1 | ||
| 71073-3F590A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71073-3F810B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71073-3F590C5 |
JZS16# BLACK,TRIM26 |
1 | ||
| 71073-3F620B1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-3F810C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71027-30020C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71027-30020B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71073-3F810A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71027-30021 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71073-3F590C4 |
JZS16# BLACK,TRIM24 |
1 | ||
| 71027-30020A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71073-3F590A2 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71073-3F620C1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71027-30022A2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71027-30022B3 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),CHARCOAL,TRIM1# |
1 | ||
| 71073-3F590B1 |
JZS16# MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-3F590C6 |
JZS16# BLACK,TRIM25 |
1 | ||
| 71027-30022C4 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71073-3F590C8 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3F070A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71074-3F070C4 |
JZS16# BLACK,TRIM24 |
1 | ||
| 71074-3F070C6 |
JZS16# BLACK,TRIM25 |
1 | ||
| 71074-3F070C5 |
JZS16# BLACK,TRIM26 |
1 | ||
| 71074-3F250B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71074-3F250A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 70169-30020B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71074-3F070A2 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71074-3F100C1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71074-3F100B1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-3F070C7 |
JZS16# BLACK,TRIM23 |
1 | ||
| 70169-30021 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 70169-30020A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 70169-30020C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71074-3F070B1 |
JZS16# MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 70169-30022B3 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),CHARCOAL,TRIM1# |
1 | ||
| 71074-3F100A1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71074-3F250C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71074-3F070C8 |
JZS16# BLACK,TRIM2# |
1 | ||
| 70169-30022C4 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 70169-30022A2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3K310C2 |
JZS16# ***,BLACK,TRIM25 |
1 | ||
| 71410-3K310B0 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K310A0 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71410-3K310C0 |
JZS16# ***,BLACK,TRIM23 |
1 | ||
| 71410-3K310A1 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71410-3K550A0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71410-3K310C1 |
JZS16# ***,BLACK,TRIM24 |
1 | ||
| 71410-3K310C3 |
JZS16# ***,BLACK,TRIM26 |
1 | ||
| 71410-3K310B1 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K550B0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K540A0 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71410-3K550C0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71410-3K700A0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71410-3K700C0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71410-3K330B0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K700B0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHACOAL,TRIM1# |
1 | ||
| 71410-3K540C0 |
JZS16# ***,BLACK,TRIM2# |
1 | ||
| 71410-3K701 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71410-3K330A0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71410-3K702B2 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K540B0 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K330C0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71410-3K702C3 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71410-3K702A1 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71410-3K540 |
JZS16# *** |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3F570B0 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-3F570C0 |
JZS16# ***,BLACK,TRIM23 |
1 | ||
| 71420-3F570C2 |
JZS16# ***,BLACK,TRIM25 |
1 | ||
| 71420-3F570C1 |
JZS16# ***,BLACK,TRIM24 |
1 | ||
| 71420-3F580A0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71420-3F740A0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71420-3F570B1 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-3F570C3 |
JZS16# ***,BLACK,TRIM26 |
1 | ||
| 71420-3F570A1 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71420-3F580B0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-3K040C0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71420-3F740B0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-3F740C0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71420-3F570A0 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71420-3K040A0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71420-3F730A0 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71420-3F580C0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71420-3K042C3 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71420-3F730 |
JZS16# *** |
1 | ||
| 71420-3F730B0 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-3F730C0 |
JZS16# ***,BLACK,TRIM2# |
1 | ||
| 71420-3K042A1 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71420-3K041 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71420-3K042B2 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-3K040B0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHACOAL,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-30220A0 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71040-30220B0 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30250B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30490A1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71040-30250C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71040-30250A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71040-30220C2 |
JZS16# BLACK,TRIM25 |
1 | ||
| 71040-30220C1 |
JZS16# BLACK,TRIM24 |
1 | ||
| 71040-30220A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71040-30531 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71040-30220C3 |
JZS16# BLACK,TRIM26 |
1 | ||
| 71040-30490B1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30220C0 |
JZS16# BLACK,TRIM23 |
1 | ||
| 71040-30220B1 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30220C4 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71040-30530B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHACOAL,TRIM1# |
1 | ||
| 71040-30532B3 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30530C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71040-30532A2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71040-30532C4 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71040-30490C1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71040-30530A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-30010C1 |
JZS16# BLACK,TRIM24 |
1 | ||
| 71070-30010A0 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71070-30010C0 |
JZS16# BLACK,TRIM23 |
1 | ||
| 71070-30030B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30030C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71070-30010B0 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30310B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30310C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71070-30010B1 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30361 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71070-30360A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71070-30010C3 |
JZS16# BLACK,TRIM26 |
1 | ||
| 71070-30362B2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30030A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71070-30310A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71070-30360B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHACOAL,TRIM1# |
1 | ||
| 71070-30362A1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71070-30010C4 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71070-30362C3 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71070-30010C2 |
JZS16# BLACK,TRIM25 |
1 | ||
| 71070-30360C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71070-30010A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-3A100 |
JZS16# |
1 | ||
| 71511-3A050 |
JZS16# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-30110 |
JZS16# |
1 | ||
| 71052-30060 |
JZS16# |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30750 |
JZS161;JZS160..5FC |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30390 |
JZS161;JZS160..5FC |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30680C1 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71705-30680B1 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71705-30680A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71705-30680C1 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71705-30680C1 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-30680C1 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71705-30680B1 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71705-30680C1 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71705-30680C1 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71705-30680A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3A120A1 |
JZS16# IVORY,TRIM0# |
2 | ||
| 71910-3A130B1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 71910-3A260A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
2 | ||
| 71910-3A210C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
2 | ||
| 71910-3A130A1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
2 | ||
| 71910-3A120C1 |
JZS16# BLACK,TRIM23,24,25,26 |
2 | ||
| 71910-3A120B1 |
JZS16# MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 71910-3A120C1 |
JZS16# BLACK,TRIM2# |
2 | ||
| 71910-3A261B2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),CHARCOAL,TRIM1# |
2 | ||
| 71910-3A260C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
2 | ||
| 71910-3A261C2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
2 | ||
| 71910-3A120A2 |
JZS16# IVORY,TRIM0# |
2 | ||
| 71910-3A140C2 |
JZS16# 10TH ANNIVERSARY EDITION *(G),BLACK,TRIM2# |
2 | ||
| 71910-3A261A2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
2 | ||
| 71910-3A130C1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
2 | ||
| 71910-3A210A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
2 | ||
| 71910-3A210B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
2 | ||
| 71910-3A260B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040A5 |
JZS16# ﾛｯｸ無,IVORY,TRIM0#,ﾛｯｸﾅｼ |
2 | ||
| 71931-12040P9 |
JZS16# ﾛｯｸ無,MD.CHARCOAL,TRIM1#,ﾛｯｸﾅｼ |
2 | ||
| 71930-12070P8 |
JZS16# ﾛｯｸ付,MD. CHARCOAL,TRIM1#,W(LOCK) |
2 | ||
| 71931-12040C0 |
JZS16# ﾛｯｸ無,BLACK,TRIM22,23,24,25,26,ﾛｯｸﾅｼ |
2 | ||
| 71930-12070P8 |
JZS16# ﾛｯｸ付,MD. CHARCOAL,TRIM1# |
2 | ||
| 71930-12070C0 |
JZS16# ﾛｯｸ付,BLACK,TRIM22,23 |
2 | ||
| 71930-12070C0 |
JZS16# ﾛｯｸ付,BLACK,TRIM22,23,24,25,26,W(LOCK) |
2 | ||
| 71931-12040C0 |
JZS16# ﾛｯｸ無,BLACK,TRIM22,23,ﾛｯｸﾅｼ |
2 | ||
| 71930-12070A5 |
JZS16# ﾛｯｸ付,IVORY,TRIM0#,W(LOCK) |
2 | ||
| 71930-12070C0 |
JZS16# ﾛｯｸ付,BLACK,TRIM22,23,W(LOCK) |
2 | ||
| 71931-12040C0 |
JZS16# ﾛｯｸ無,BLACK,TRIM22,23 |
2 | ||
| 71931-12040A5 |
JZS16# ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-12070A5 |
JZS16# ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-12040P9 |
JZS16# ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040A5 |
JZS16# ﾛｯｸ無,IVORY,TRIM0#,ﾛｯｸﾅｼ |
2 | ||
| 71931-12040P9 |
JZS16# ﾛｯｸ無,MD.CHARCOAL,TRIM1#,ﾛｯｸﾅｼ |
2 | ||
| 71930-12070P8 |
JZS16# ﾛｯｸ付,MD. CHARCOAL,TRIM1#,W(LOCK) |
2 | ||
| 71931-12040C0 |
JZS16# ﾛｯｸ無,BLACK,TRIM22,23,24,25,26,ﾛｯｸﾅｼ |
2 | ||
| 71930-12070P8 |
JZS16# ﾛｯｸ付,MD. CHARCOAL,TRIM1# |
2 | ||
| 71930-12070C0 |
JZS16# ﾛｯｸ付,BLACK,TRIM22,23 |
2 | ||
| 71930-12070C0 |
JZS16# ﾛｯｸ付,BLACK,TRIM22,23,24,25,26,W(LOCK) |
2 | ||
| 71931-12040C0 |
JZS16# ﾛｯｸ無,BLACK,TRIM22,23,ﾛｯｸﾅｼ |
2 | ||
| 71930-12070A5 |
JZS16# ﾛｯｸ付,IVORY,TRIM0#,W(LOCK) |
2 | ||
| 71930-12070C0 |
JZS16# ﾛｯｸ付,BLACK,TRIM22,23,W(LOCK) |
2 | ||
| 71931-12040C0 |
JZS16# ﾛｯｸ無,BLACK,TRIM22,23 |
2 | ||
| 71931-12040A5 |
JZS16# ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-12070A5 |
JZS16# ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-12040P9 |
JZS16# ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30230 |
JZS16# |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-30020 |
JZS16# |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 91511-B0610 | ||||
| 93540-55016 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 1 OF 3(9708- )
ｱﾘ(ｼ-ﾄ ﾋ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3K120B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-3K100B0 |
JZS16# MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-3K100C0 |
JZS16# BLACK,TRIM24 |
1 | ||
| 71071-3K100A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71071-3K100C3 |
JZS16# BLACK,TRIM23 |
1 | ||
| 71071-3K100C1 |
JZS16# BLACK,TRIM26 |
1 | ||
| 71071-3K100C2 |
JZS16# BLACK,TRIM25 |
1 | ||
| 71071-3K300B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71071-3K120A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71071-3K300A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71071-3K300C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71071-3K280C0 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71071-3K120C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71071-3K360B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71071-3K361A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71071-3K362 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71071-3K363C4 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71071-3K363B3 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),CHARCOAL,TRIM1# |
1 | ||
| 71071-3K360A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71071-3K361C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71071-3K280B0 |
JZS16# MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71071-3K363A2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71071-3K360C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71071-3K100A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71071-3K361B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71071-3K280A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3F430A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71072-3F430C3 |
JZS16# BLACK,TRIM23 |
1 | ||
| 71072-3F450B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-3F430C2 |
JZS16# BLACK,TRIM25 |
1 | ||
| 71072-3F610B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71072-3F610C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71072-3F430C1 |
JZS16# BLACK,TRIM26 |
1 | ||
| 71072-3F610A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71072-3F671B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71072-3F671C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71072-3F430C0 |
JZS16# BLACK,TRIM24 |
1 | ||
| 71072-3F450C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71072-3F670B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71072-3F672 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71072-3F590A0 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71072-3F450A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71072-3F590C0 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71072-3F673B3 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),CHARCOAL,TRIM1# |
1 | ||
| 71072-3F670C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71072-3F673C4 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71072-3F670A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71072-3F430B0 |
JZS16# MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-3F671A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71072-3F590B0 |
JZS16# MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71072-3F673A2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71072-3F430A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3F620A1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71073-3F590C7 |
JZS16# BLACK,TRIM23 |
1 | ||
| 71073-3F590A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71073-3F810B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71073-3F590C5 |
JZS16# BLACK,TRIM26 |
1 | ||
| 71073-3F620B1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-3F810C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71027-30020C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71027-30020B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71073-3F810A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71027-30021 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71073-3F590C4 |
JZS16# BLACK,TRIM24 |
1 | ||
| 71027-30020A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71073-3F590A2 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71073-3F620C1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71027-30022A2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71027-30022B3 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),CHARCOAL,TRIM1# |
1 | ||
| 71073-3F590B1 |
JZS16# MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-3F590C6 |
JZS16# BLACK,TRIM25 |
1 | ||
| 71027-30022C4 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71073-3F590C8 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3F070A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71074-3F070C4 |
JZS16# BLACK,TRIM24 |
1 | ||
| 71074-3F070C6 |
JZS16# BLACK,TRIM25 |
1 | ||
| 71074-3F070C5 |
JZS16# BLACK,TRIM26 |
1 | ||
| 71074-3F250B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71074-3F250A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 70169-30020B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 71074-3F070A2 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71074-3F100C1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71074-3F100B1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-3F070C7 |
JZS16# BLACK,TRIM23 |
1 | ||
| 70169-30021 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 70169-30020A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 70169-30020C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71074-3F070B1 |
JZS16# MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 70169-30022B3 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),CHARCOAL,TRIM1# |
1 | ||
| 71074-3F100A1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71074-3F250C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71074-3F070C8 |
JZS16# BLACK,TRIM2# |
1 | ||
| 70169-30022C4 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 70169-30022A2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3K310C2 |
JZS16# ***,BLACK,TRIM25 |
1 | ||
| 71410-3K310B0 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K310A0 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71410-3K310C0 |
JZS16# ***,BLACK,TRIM23 |
1 | ||
| 71410-3K310A1 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71410-3K550A0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71410-3K310C1 |
JZS16# ***,BLACK,TRIM24 |
1 | ||
| 71410-3K310C3 |
JZS16# ***,BLACK,TRIM26 |
1 | ||
| 71410-3K310B1 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K550B0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K540A0 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71410-3K550C0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71410-3K700A0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71410-3K700C0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71410-3K330B0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K700B0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHACOAL,TRIM1# |
1 | ||
| 71410-3K540C0 |
JZS16# ***,BLACK,TRIM2# |
1 | ||
| 71410-3K701 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71410-3K330A0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71410-3K702B2 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K540B0 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K330C0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71410-3K702C3 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71410-3K702A1 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71410-3K540 |
JZS16# *** |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3F570B0 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-3F570C0 |
JZS16# ***,BLACK,TRIM23 |
1 | ||
| 71420-3F570C2 |
JZS16# ***,BLACK,TRIM25 |
1 | ||
| 71420-3F570C1 |
JZS16# ***,BLACK,TRIM24 |
1 | ||
| 71420-3F580A0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71420-3F740A0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71420-3F570B1 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-3F570C3 |
JZS16# ***,BLACK,TRIM26 |
1 | ||
| 71420-3F570A1 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71420-3F580B0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-3K040C0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71420-3F740B0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-3F740C0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71420-3F570A0 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71420-3K040A0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71420-3F730A0 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71420-3F580C0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71420-3K042C3 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71420-3F730 |
JZS16# *** |
1 | ||
| 71420-3F730B0 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-3F730C0 |
JZS16# ***,BLACK,TRIM2# |
1 | ||
| 71420-3K042A1 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71420-3K041 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71420-3K042B2 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-3K040B0 |
JZS16# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHACOAL,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-30220A0 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71040-30220B0 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30250B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30490A1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71040-30250C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71040-30250A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71040-30220C2 |
JZS16# BLACK,TRIM25 |
1 | ||
| 71040-30220C1 |
JZS16# BLACK,TRIM24 |
1 | ||
| 71040-30220A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71040-30531 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71040-30220C3 |
JZS16# BLACK,TRIM26 |
1 | ||
| 71040-30490B1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30220C0 |
JZS16# BLACK,TRIM23 |
1 | ||
| 71040-30220B1 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30220C4 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71040-30530B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHACOAL,TRIM1# |
1 | ||
| 71040-30532B3 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30530C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71040-30532A2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71040-30532C4 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71040-30490C1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71040-30530A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-30010C1 |
JZS16# BLACK,TRIM24 |
1 | ||
| 71070-30010A0 |
JZS16# ***,IVORY,TRIM0# |
1 | ||
| 71070-30010C0 |
JZS16# BLACK,TRIM23 |
1 | ||
| 71070-30030B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30030C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71070-30010B0 |
JZS16# ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30310B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30310C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71070-30010B1 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30361 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 71070-30360A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71070-30010C3 |
JZS16# BLACK,TRIM26 |
1 | ||
| 71070-30362B2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30030A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71070-30310A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71070-30360B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MD.CHACOAL,TRIM1# |
1 | ||
| 71070-30362A1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71070-30010C4 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71070-30362C3 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71070-30010C2 |
JZS16# BLACK,TRIM25 |
1 | ||
| 71070-30360C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71070-30010A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-3A100 |
JZS16# |
1 | ||
| 71511-3A050 |
JZS16# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-30110 |
JZS16# |
1 | ||
| 71052-30060 |
JZS16# |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30750 |
JZS161;JZS160..5FC |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30390 |
JZS161;JZS160..5FC |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30680C1 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71705-30680B1 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71705-30680A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71705-30680C1 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71705-30680C1 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-30680C1 |
JZS16# BLACK,TRIM22,23,24,25,26 |
1 | ||
| 71705-30680B1 |
JZS16# MD.CHARCOAL,TRIM1# |
1 | ||
| 71705-30680C1 |
JZS16# BLACK,TRIM22,23 |
1 | ||
| 71705-30680C1 |
JZS16# BLACK,TRIM2# |
1 | ||
| 71705-30680A1 |
JZS16# IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3A120A1 |
JZS16# IVORY,TRIM0# |
2 | ||
| 71910-3A130B1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 71910-3A260A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
2 | ||
| 71910-3A210C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
2 | ||
| 71910-3A130A1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
2 | ||
| 71910-3A120C1 |
JZS16# BLACK,TRIM23,24,25,26 |
2 | ||
| 71910-3A120B1 |
JZS16# MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 71910-3A120C1 |
JZS16# BLACK,TRIM2# |
2 | ||
| 71910-3A261B2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),CHARCOAL,TRIM1# |
2 | ||
| 71910-3A260C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
2 | ||
| 71910-3A261C2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),BLACK,TRIM2# |
2 | ||
| 71910-3A120A2 |
JZS16# IVORY,TRIM0# |
2 | ||
| 71910-3A140C2 |
JZS16# 10TH ANNIVERSARY EDITION *(G),BLACK,TRIM2# |
2 | ||
| 71910-3A261A2 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
2 | ||
| 71910-3A130C1 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
2 | ||
| 71910-3A210A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),IVORY,TRIM0# |
2 | ||
| 71910-3A210B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
2 | ||
| 71910-3A260B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & ｼ-ﾄﾋ-ﾀ),MEDIUM CHACOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040P9 |
JZS16# ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040A5 |
JZS16# ﾛｯｸ無,IVORY,TRIM0#,ﾛｯｸﾅｼ |
2 | ||
| 71931-12040P9 |
JZS16# ﾛｯｸ無,MD.CHARCOAL,TRIM1#,ﾛｯｸﾅｼ |
2 | ||
| 71930-12070P8 |
JZS16# ﾛｯｸ付,MD. CHARCOAL,TRIM1#,W(LOCK) |
2 | ||
| 71931-12040C0 |
JZS16# ﾛｯｸ無,BLACK,TRIM22,23,24,25,26,ﾛｯｸﾅｼ |
2 | ||
| 71930-12070P8 |
JZS16# ﾛｯｸ付,MD. CHARCOAL,TRIM1# |
2 | ||
| 71930-12070C0 |
JZS16# ﾛｯｸ付,BLACK,TRIM22,23 |
2 | ||
| 71930-12070C0 |
JZS16# ﾛｯｸ付,BLACK,TRIM22,23,24,25,26,W(LOCK) |
2 | ||
| 71931-12040C0 |
JZS16# ﾛｯｸ無,BLACK,TRIM22,23,ﾛｯｸﾅｼ |
2 | ||
| 71930-12070A5 |
JZS16# ﾛｯｸ付,IVORY,TRIM0#,W(LOCK) |
2 | ||
| 71930-12070C0 |
JZS16# ﾛｯｸ付,BLACK,TRIM22,23,W(LOCK) |
2 | ||
| 71931-12040C0 |
JZS16# ﾛｯｸ無,BLACK,TRIM22,23 |
2 | ||
| 71931-12040A5 |
JZS16# ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-12070A5 |
JZS16# ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040A5 |
JZS16# ﾛｯｸ無,IVORY,TRIM0#,ﾛｯｸﾅｼ |
2 | ||
| 71931-12040P9 |
JZS16# ﾛｯｸ無,MD.CHARCOAL,TRIM1#,ﾛｯｸﾅｼ |
2 | ||
| 71930-12070P8 |
JZS16# ﾛｯｸ付,MD. CHARCOAL,TRIM1#,W(LOCK) |
2 | ||
| 71931-12040C0 |
JZS16# ﾛｯｸ無,BLACK,TRIM22,23,24,25,26,ﾛｯｸﾅｼ |
2 | ||
| 71931-12040P9 |
JZS16# ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-12070P8 |
JZS16# ﾛｯｸ付,MD. CHARCOAL,TRIM1# |
2 | ||
| 71930-12070C0 |
JZS16# ﾛｯｸ付,BLACK,TRIM22,23 |
2 | ||
| 71930-12070C0 |
JZS16# ﾛｯｸ付,BLACK,TRIM22,23,24,25,26,W(LOCK) |
2 | ||
| 71931-12040C0 |
JZS16# ﾛｯｸ無,BLACK,TRIM22,23,ﾛｯｸﾅｼ |
2 | ||
| 71930-12070A5 |
JZS16# ﾛｯｸ付,IVORY,TRIM0#,W(LOCK) |
2 | ||
| 71930-12070C0 |
JZS16# ﾛｯｸ付,BLACK,TRIM22,23,W(LOCK) |
2 | ||
| 71931-12040C0 |
JZS16# ﾛｯｸ無,BLACK,TRIM22,23 |
2 | ||
| 71931-12040A5 |
JZS16# ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-12070A5 |
JZS16# ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30230 |
JZS16# |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-30020 |
JZS16# |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 91511-B0610 | ||||
| 93540-55016 | ||||
| Linked diagrams | ||||
| 8513 | ||||
(9708- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
