JZS161-BEPVZ (1997)
Toyota Aristo

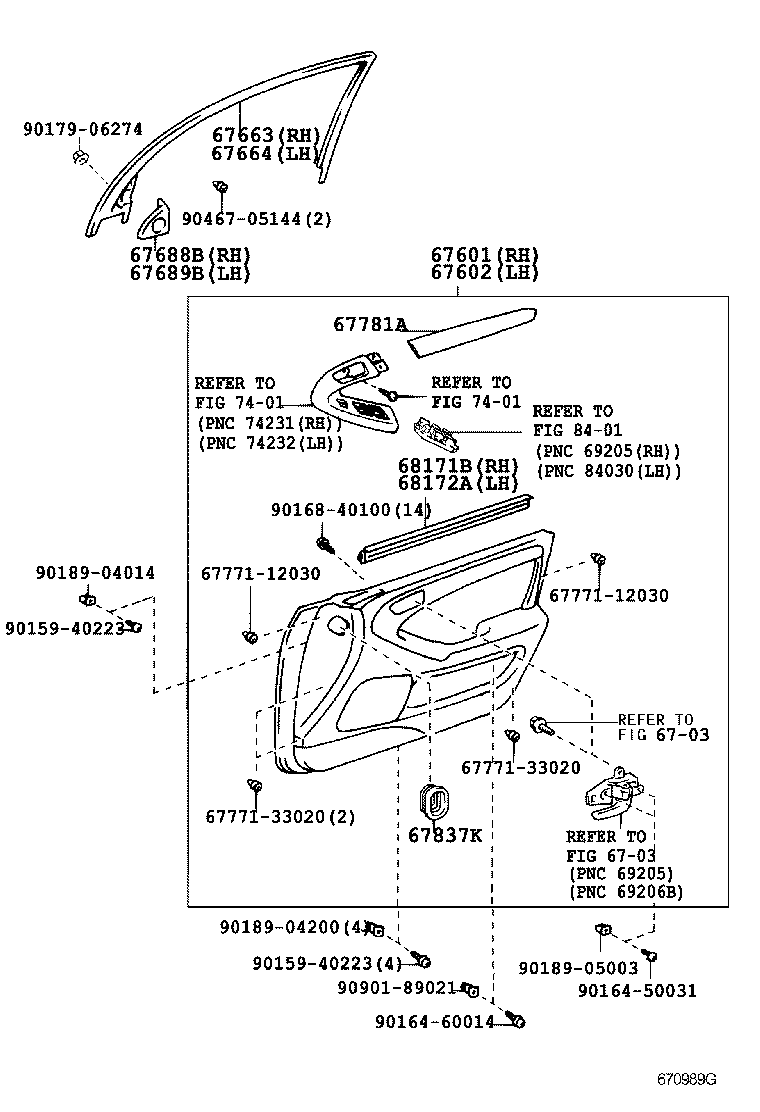

ILLUST NO. 1 OF 4(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3F650B0 |
JZS16# MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67610-3F660B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ),MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67610-3F660A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ),IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67610-3F661C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ),BLACK,TRIM2#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67610-3F650A0 |
JZS16# IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67610-3F661A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ),IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67610-3F661B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ),MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67610-3F660C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ),BLACK,TRIM2#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67650-3F110 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 67650-3F060 |
JZS161 ﾓﾃﾞﾘｽﾀ-VA300 TOM'S |
1 | ||
| 67650-3F070 |
JZS161 ﾓﾃﾞﾘｽﾀ-VA300 TOM'S & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 67610-3F730C0 |
JZS16# VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67610-3F870C0 |
JZS16# ﾄﾘﾑ = TYPE C-*104 & VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67610-3F860B0 |
JZS16# ﾄﾘﾑ = TYPE C-*104,MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67650-3F070 |
JZS161 ﾓﾃﾞﾘｽﾀ-VA300 TOM'S & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 67610-3F860C0 |
JZS161 ﾄﾘﾑ = TYPE C-*104,BLACK,TRIM2#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67650-3F060 |
JZS161 ﾓﾃﾞﾘｽﾀ-V300 TOM'S VERSION |
1 | ||
| 67650-3F060 |
JZS161 ﾓﾃﾞﾘｽﾀ-VA300 TOM'S |
1 | ||
| 67650-3F070 |
JZS161 ﾓﾃﾞﾘｽﾀ-V300 TOM'S VERSION & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 67610-3F740C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ) & VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67610-3F860A0 |
JZS16# ﾄﾘﾑ = TYPE C-*104,IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67610-3F730C0 |
JZS16# ﾄﾘﾑ = TYPE A-*104 & VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67650-3F131A0 |
JZS16# ﾄﾘﾑ = TYPE C-*104,IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67610-3F651A1 |
JZS16#..4FC IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67610-3F731C4 |
JZS16# ﾄﾘﾑ = TYPE A-*104 & VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67650-3F131B0 |
JZS16# ﾄﾘﾑ = TYPE C-*104,MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67650-3F140C0 |
JZS16# ﾄﾘﾑ = TYPE C-*104 & VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67610-3F651B1 |
JZS16#..4FC MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67650-3F130A0 |
JZS16# ﾄﾘﾑ = TYPE C-*104,IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67610-3F652A2 |
JZS16# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67610-3F652B2 |
JZS16# ﾄﾘﾑ = TYPE B-*104,MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67650-3F141C0 |
JZS16# ﾄﾘﾑ = TYPE C-*104 & VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67650-3F130B0 |
JZS16# ﾄﾘﾑ = TYPE C-*104,MD. CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67660-30020A0 |
JZS16# IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30030B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ),MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30120C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ) & VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67660-30031A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ),IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30230 |
JZS161 ﾓﾃﾞﾘｽﾀ-VA300 TOM'S |
1 | ||
| 67660-30240 |
JZS161 ﾓﾃﾞﾘｽﾀ-VA300 TOM'S & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 67660-30110C0 |
JZS16# VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67660-30031B0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ),MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30020B0 |
JZS16# MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30031C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ),BLACK,TRIM2#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30030C0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ),BLACK,TRIM2#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30270 |
JZS16# 10TH ANNIVERSARY EDITION *(G),TRIM2# |
1 | ||
| 67660-30030A0 |
JZS16# ｱﾘ(ﾎﾝｶﾞﾜ ﾄﾘﾑ),IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30150C0 |
JZS161 ﾄﾘﾑ = TYPE C-*104,BLACK,TRIM2#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30021A1 |
JZS16#..4FC IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30160C0 |
JZS16# ﾄﾘﾑ = TYPE C-*104 & VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67660-30290A0 |
JZS16# ﾄﾘﾑ = TYPE C-*104,IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30240 |
JZS161 ﾓﾃﾞﾘｽﾀ-V300 TOM'S VERSION & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 67660-30150A0 |
JZS16# ﾄﾘﾑ = TYPE C-*104,IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30150B0 |
JZS16# ﾄﾘﾑ = TYPE C-*104,MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30230 |
JZS161 ﾓﾃﾞﾘｽﾀ-V300 TOM'S VERSION |
1 | ||
| 67660-30240 |
JZS161 ﾓﾃﾞﾘｽﾀ-VA300 TOM'S & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 67660-30022A2 |
JZS16# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30230 |
JZS161 ﾓﾃﾞﾘｽﾀ-VA300 TOM'S |
1 | ||
| 67660-30290B0 |
JZS16# ﾄﾘﾑ = TYPE C-*104,MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30110C0 |
JZS16# ﾄﾘﾑ = TYPE A-*104 & VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67660-30111C4 |
JZS16# ﾄﾘﾑ = TYPE A-*104 & VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67660-30300C0 |
JZS16# ﾄﾘﾑ = TYPE C-*104 & VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67660-30291B0 |
JZS16# ﾄﾘﾑ = TYPE C-*104,MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30022B2 |
JZS16# ﾄﾘﾑ = TYPE B-*104,MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30021B1 |
JZS16#..4FC MD.CHARCOAL,TRIM1#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30291A0 |
JZS16# ﾄﾘﾑ = TYPE C-*104,IVORY,TRIM0#,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67660-30301C0 |
JZS16# ﾄﾘﾑ = TYPE C-*104 & VERTEX EDITION,BLACK,TRIM2#,木目(ﾀﾞｰｸ) |
1 | ||
| 67663 - GARNISH, DOOR FRAME, UPPER RH | ||||
| 67663-30030 |
JZS16# |
1 | ||
| 67664 - GARNISH, DOOR FRAME, UPPER LH | ||||
| 67664-30030 |
JZS16# |
1 | ||
| 67688B - GRILLE, SPEAKER DOOR, NO.2 RH | ||||
| 67688-30030 |
JZS16# |
1 | ||
| 67689B - GRILLE, SPEAKER DOOR, NO.2 LH | ||||
| 67689-30020 |
JZS16# |
1 | ||
| 67781A - ORNAMENT, FRONT DOOR TRIM | ||||
| 67782-30230 |
JZS16# ﾚﾌﾄ,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67781-30240 |
JZS16# ﾗｲﾄ,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67782-30280 |
JZS161 ﾓﾃﾞﾘｽﾀ-VA300 TOM'S,左側 |
1 | ||
| 67781-30290 |
JZS161 ﾓﾃﾞﾘｽﾀ-VA300 TOM'S,右側 |
1 | ||
| 67782-30270 |
JZS16# 10TH ANNIVERSARY EDITION *(G),左側 |
1 | ||
| 67782-30280 |
JZS161 ﾓﾃﾞﾘｽﾀ-VA300 TOM'S,左側 |
1 | ||
| 67781-30290 |
JZS161 ﾓﾃﾞﾘｽﾀ-VA300 TOM'S,右側 |
1 | ||
| 67782-30280 |
JZS161 ﾓﾃﾞﾘｽﾀ-V300 TOM'S VERSION,左側 |
1 | ||
| 67781-30290 |
JZS161 ﾓﾃﾞﾘｽﾀ-V300 TOM'S VERSION,右側 |
1 | ||
| 67782-30240 |
JZS161;JZS160..5FC VERTEX EDITION,ﾚﾌﾄ,木目(ﾀﾞｰｸ) |
1 | ||
| 67781-30241 |
JZS161;JZS160..5FC ﾗｲﾄ,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67781-30250 |
JZS161;JZS160..5FC VERTEX EDITION,ﾗｲﾄ,木目(ﾀﾞｰｸ) |
1 | ||
| 67782-30231 |
JZS161;JZS160..5FC ﾚﾌﾄ,木目(ﾌﾞﾗｳﾝ) |
1 | ||
| 67781-30280 |
JZS16# 10TH ANNIVERSARY EDITION *(G),右側 |
1 | ||
| 67837K - SEAL, FRONT DOOR VENT | ||||
| 67837-50030 |
JZS161;JZS160..5FC |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-30120 |
JZS161;JZS160..5FC |
1 | ||
| 68171-30121 |
JZS16# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-30091 |
JZS16# |
1 | ||
| 68172-30090 |
JZS161;JZS160..5FC |
1 | ||
| Common parts | ||||
| 67771-12030 | ||||
| 67771-33020 | ||||
| 90159-40223 | ||||
| 90164-50031 | ||||
| 90164-60014 | ||||
| 90168-40100 | ||||
| 90179-06274 | ||||
| 90189-04014 | ||||
| 90189-04200 | ||||
| 90189-05003 | ||||
| 90467-05144 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
| 8401 | ||||

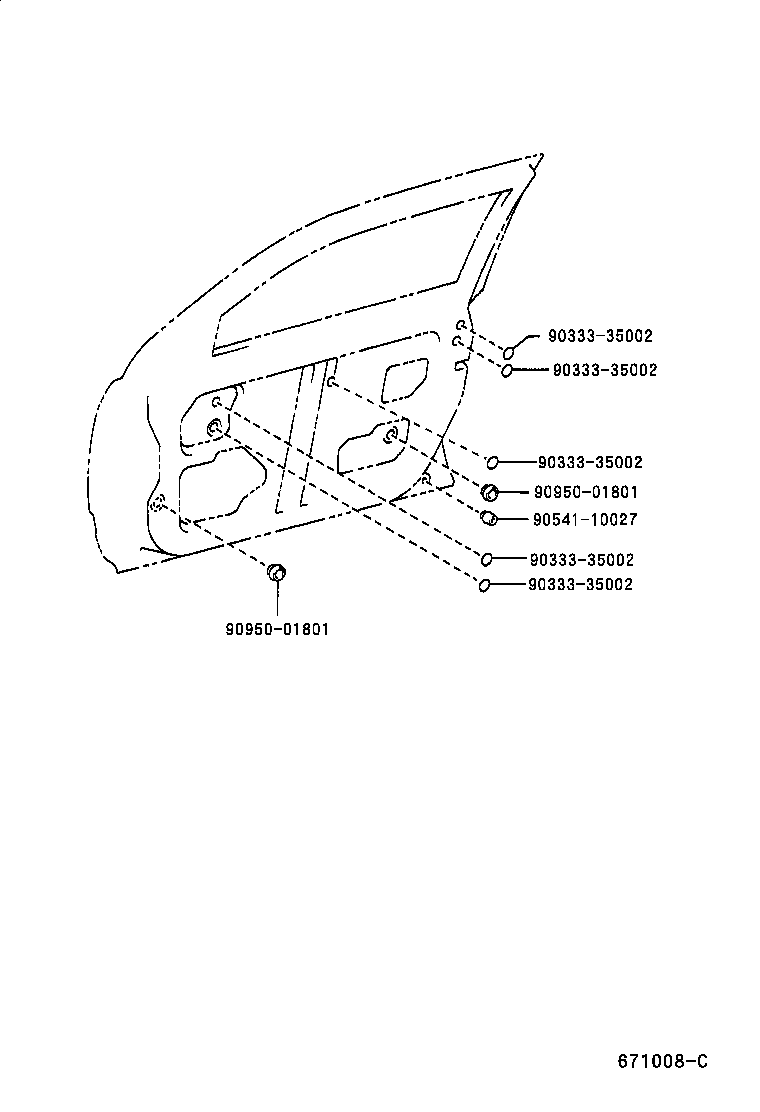

ILLUST NO. 3 OF 4(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-35002 | ||||
| 90541-10027 | ||||
| 90950-01801 | ||||

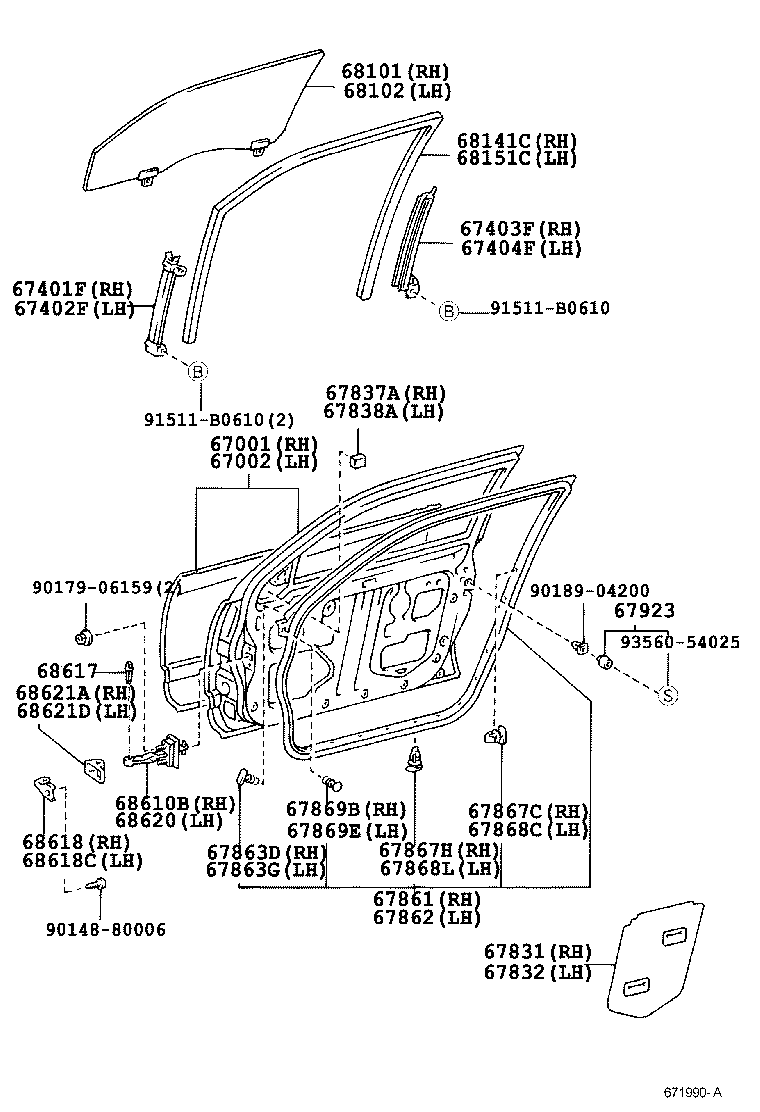

ILLUST NO. 2 OF 4(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-30792 |
JZS161;JZS160..5FC |
1 | ||
| 67001-30792 |
JZS16# |
1 | ||
| 67001-30790 |
JZS16# |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-30870 |
JZS16# |
1 | ||
| 67002-30872 |
JZS161;JZS160..5FC |
1 | ||
| 67002-30872 |
JZS16# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-30240 |
JZS16# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-30240 |
JZS16# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-30151 |
JZS16# |
1 | ||
| 67403-30150 |
JZS16# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-30151 |
JZS16# |
1 | ||
| 67404-30150 |
JZS16# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-30380 |
JZS16# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-30240 |
JZS16# |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-30030 |
JZS161;JZS160..5FC |
1 | ||
| 67837-51010 |
JZS16# |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67837-30030 |
JZS16# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-30251 |
JZS16# |
1 | ||
| 67861-30250 |
JZS16# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-30250 |
JZS16# |
1 | ||
| 67862-30251 |
JZS16# |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67868-30040 |
JZS161;JZS160..5FC |
1 | ||
| 67863G - RETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67868-30040 |
JZS161;JZS160..5FC |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-50020 |
JZS161;JZS160..5FC |
1 | ||
| 67867H - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
JZS161;JZS160..5FC |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-50020 |
JZS161;JZS160..5FC |
1 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
JZS161;JZS160..5FC |
16 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-22010 |
JZS161;JZS160..5FC |
1 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-22010 |
JZS161;JZS160..5FC |
1 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-24030 |
JZS16# |
2 | ||
| 67923-30010 |
JZS161;JZS160..5FC |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-30710 |
JZS16# *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-30740 |
JZS16# *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-30710 |
JZS16# *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-30740 |
JZS16# *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-30290 |
JZS16# |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-30130 |
JZS16# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-30150 |
JZS16# |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-50010 |
JZS16# |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-50010 |
JZS16# |
1 | ||
| 68618C - BRACKET, FRONT DOOR CHECK ARM, LH | ||||
| 68618-50010 |
JZS16# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-30070 |
JZS16# |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-50030 |
JZS16# |
1 | ||
| 68621D - COVER, FRONT DOOR CHECK, LH | ||||
| 68621-50030 |
JZS16# |
1 | ||
| Common parts | ||||
| 90148-80006 | ||||
| 90179-06159 | ||||
| 90189-04200 | ||||
| 91511-B0610 | ||||
| 93560-54025 | ||||
ILLUST NO. 4 OF 4(9708- )
ﾄﾘﾑｺ-ﾄﾞ
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
