JZS161-BEPVZ (1997)

Toyota Aristo

Production Aug 1997 - Jan 2005
Engine 2JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

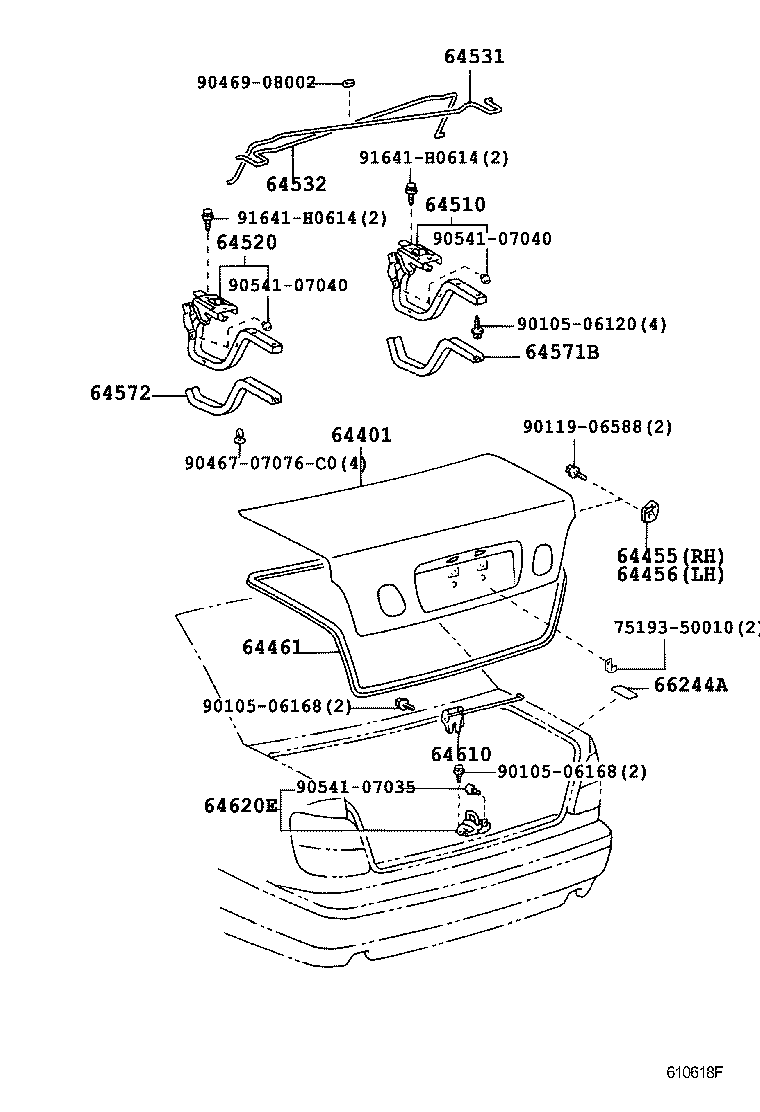

Click highlighted areas on diagram

diagram 64401 64455 64456 64461 64510 64520 64531 64532 64571B 64572 64610 64620E 66244A 7519350010 9010506120 9010506168 9010506168 9011906588 9046707076C0 9046908002 9054107035 9054107040 9054107040 91641H0614 91641H0614
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-3A030

JZS16#

 1
64401-3A031

JZS16#

 1
64401-3A081

JZS16#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64401-3A032

JZS16#

 1
64401-3A082

JZS16#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64401-3A080

JZS16#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64455 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64455-30010

JZS16#

 1
64456 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH
64456-30010

JZS16#

 1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-30271

JZS16#

 1
64461-30270

JZS16#

 1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-30280

JZS16#

 1
64510-30281

JZS16#

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64510-30280

JZS16#

 1
64510-30281

JZS16#

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-30250

JZS16#

 1
64531-30260

JZS16#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-30260

JZS16#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64532-30250

JZS16#

 1
64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571-30070

JZS16#

 1
64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64572-30030

JZS16#

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-30120

JZS16#

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-30110

JZS16#

 1
66244A - PROTECTOR, REAR BODY, NO.2
66244-30050

JZS16#

 2
Common parts
75193-50010
90105-06120
90105-06168
90119-06588
90467-07076C0
90469-08002
90541-07035
90541-07040
91641-H0614
