JZS161-BEPVZ (1997)

Toyota Aristo

Production Aug 1997 - Jan 2005
Engine 2JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

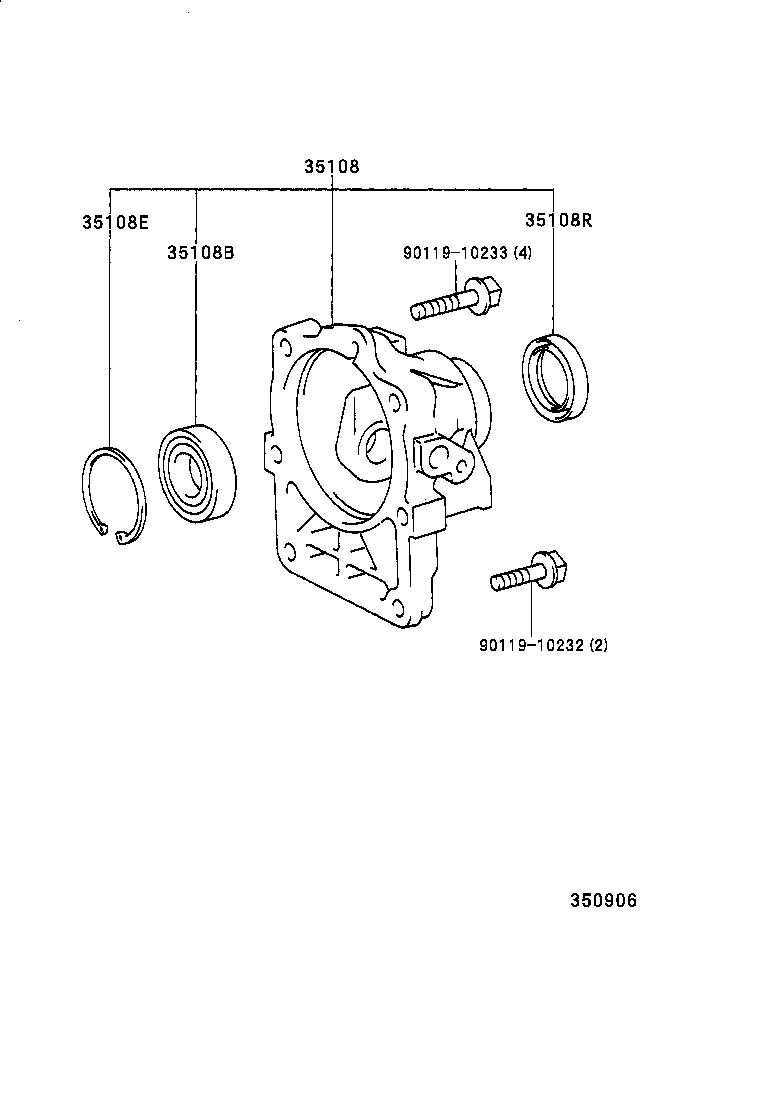

Click highlighted areas on diagram

A340E,A650E

diagram 35108 35108B 35108E 35108R 9011910232 9011910233
Part # Description Qty Price
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-50021

JZS161

 1
35108B - BEARING (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
90363-30063

JZS161

 1
35108E - RING, HOLE SNAP (FOR ATM EXTENSION HOUSING)
90521-66006

JZS161;JZS160..5FC

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-42024

JZS161;JZS160..5FC

 1
Common parts
90119-10232
90119-10233
