JZS160-BEPQF (1997)

Toyota Aristo

Production Aug 1997 - Jul 2000
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

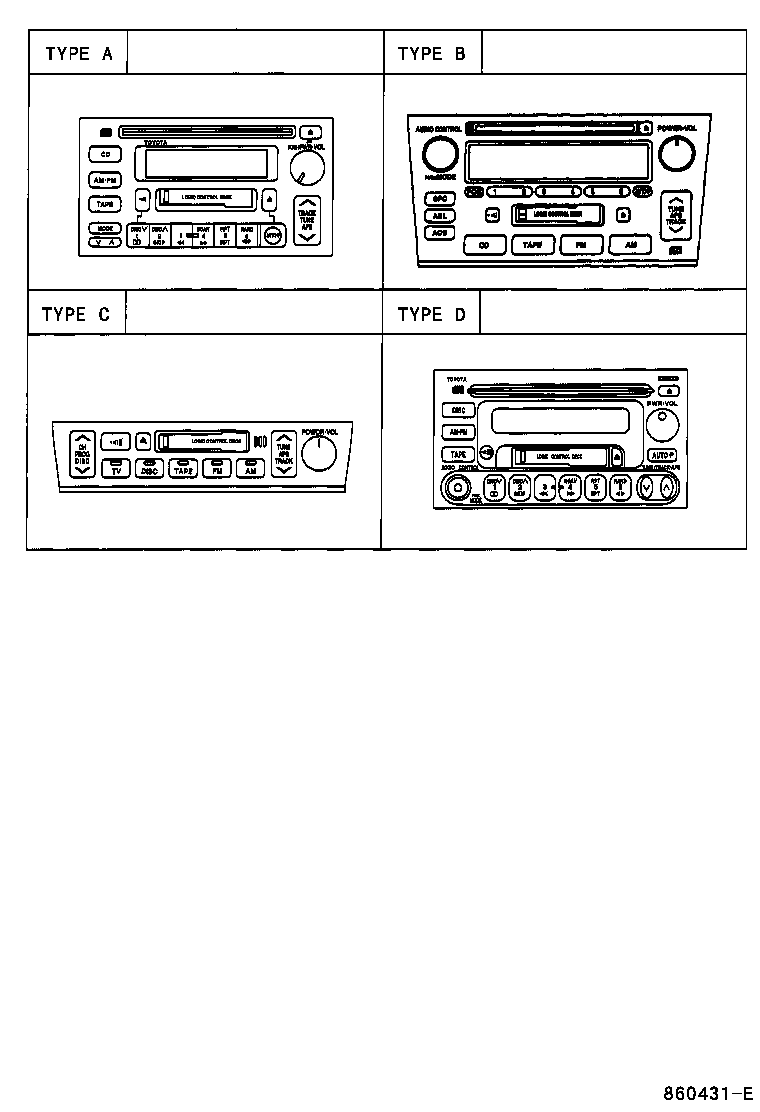

ILLUST NO. 2 OF 2(9708-0309)

Click highlighted areas on diagram

diagram
Part # Description Qty Price

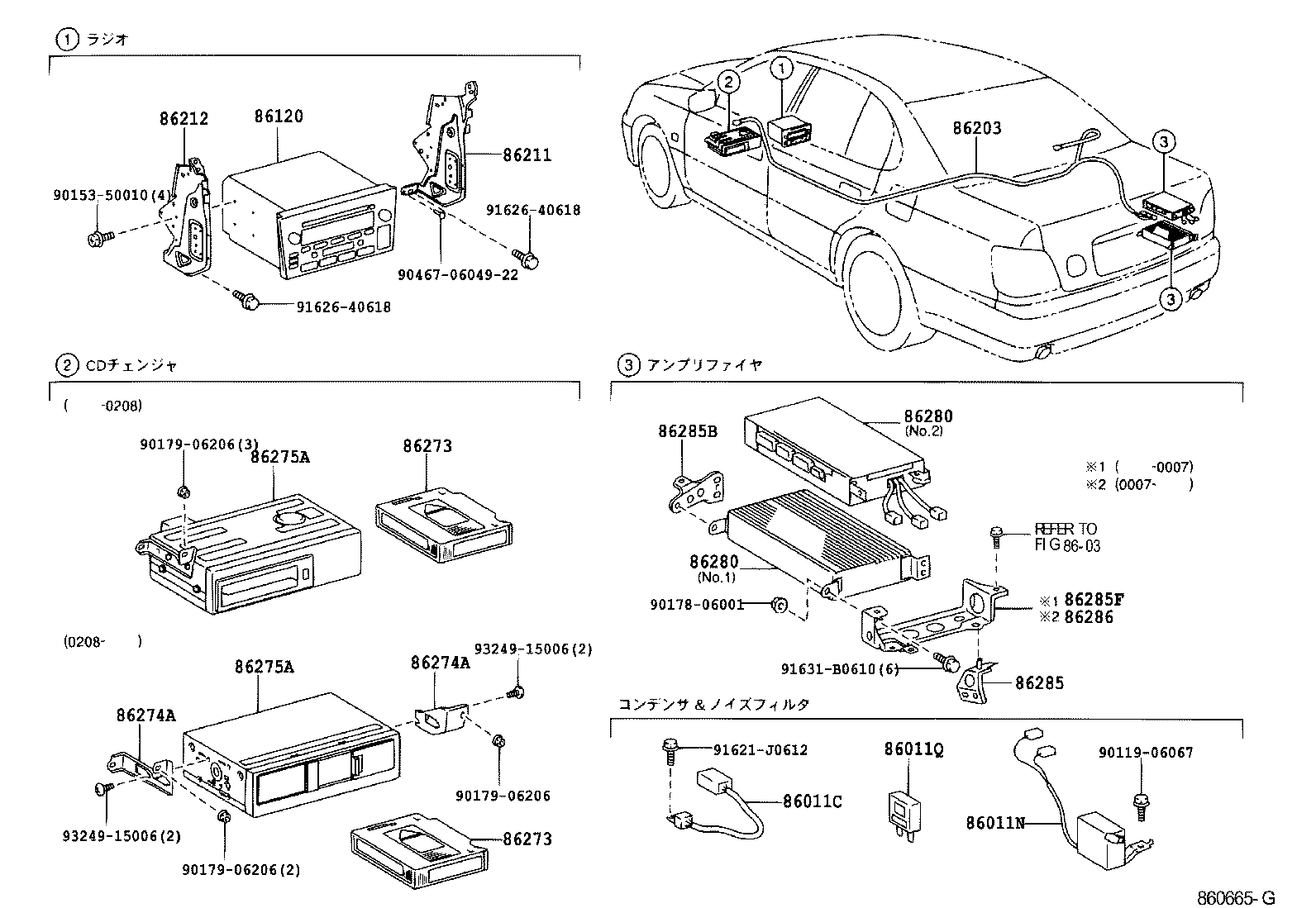

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

diagram 86011C 86011N 86011Q 8603 86120 86203 86211 86212 86273 86273 86274A 86274A 86275A 86275A 86280 86280 86285 86285B 86285F 86286 9011906067 9015350010 9017806001 9017906206 9017906206 9017906206 904670604922 91621J0612 9162640618 9162640618 91631B0610 9324915006 9324915006
Part # Description Qty Price
86011C - FILTER, NOISE
90980-05313

JZS160

 1
86011N - FILTER, NOISE
90980-05316

JZS16#

 1
86011Q - CONDENSER, RADIO SETTING
90980-04066

JZS16#

 2
86120 - RECEIVER ASSY, RADIO
86120-3A612

JZS16#

FUJITSU TEN,ID=15844,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-3A610

JZS16#

FUJITSU TEN,ID=15833,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-3A611

JZS16#

FUJITSU TEN,ID=15841,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-3A613

JZS16#

FUJITSU TEN,ID=15848,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-14860

JZS160

MATSUSHITA,ID=55818,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86203 - WIRE, RADIO
86203-30560

JZS16#

 1
86203-30561

JZS16#

 1
86211 - BRACKET, RADIO, NO.1
86211-30250

JZS16#

ｱﾘ(8 ｽﾋﾟ-ｶ);"ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" OR ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86211-30251

JZS16#

ｱﾘ(8 ｽﾋﾟ-ｶ);"ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" OR ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86211-30240

JZS160

 1
86211-30241

JZS160

 1
86212 - BRACKET, RADIO, NO.2
86212-30221

JZS160

 1
86212-30230

JZS16#

ｱﾘ(8 ｽﾋﾟ-ｶ);"ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" OR ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86212-30220

JZS160

 1
86212-30231

JZS16#

ｱﾘ(8 ｽﾋﾟ-ｶ);"ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" OR ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86273 - MAGAZINE, DISC PLAYER
86273-50060

JZS16#

 1
86273 - MAGAZINE, DISC PLAYER
86273-50060

JZS16#

 1
86275A - CHANGER, DISC PLAYER
86270-30170

JZS16#

 1
86275A - CHANGER, DISC PLAYER
86270-30170

JZS16#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-30392

JZS16#

ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),NO.2

 1
86280-0W011

JZS16#

NO.1

 1
86280-30391

JZS16#

ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),NO.2

 1
86280-0W010

JZS16#

NO.1

 1
86280-0W012

JZS16#

NO.1

 1
86280-30390

JZS16#

ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),NO.2

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-30392

JZS16#

ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),NO.2

 1
86280-0W011

JZS16#

NO.1

 1
86280-30391

JZS16#

ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),NO.2

 1
86280-0W010

JZS16#

NO.1

 1
86280-0W012

JZS16#

NO.1

 1
86280-30390

JZS16#

ｱﾘ(GPS ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),NO.2

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-30050

JZS16#

 1
86285B - BRACKET, AMPLIFIER, NO.1
86285-30060

JZS16#

 1
86285-30061

JZS16#

 1
86285F - BRACKET, AMPLIFIER, NO.2
86285-30070

JZS16#

 1
Common parts
90119-06067
90153-50010
90178-06001
90179-06206
90467-0604922
91621-J0612
91626-40618
91631-B0610
93249-15006
Linked diagrams
8603
