JZS160-BEPQF (1997)

Toyota Aristo

Production Aug 1997 - Jul 2000
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

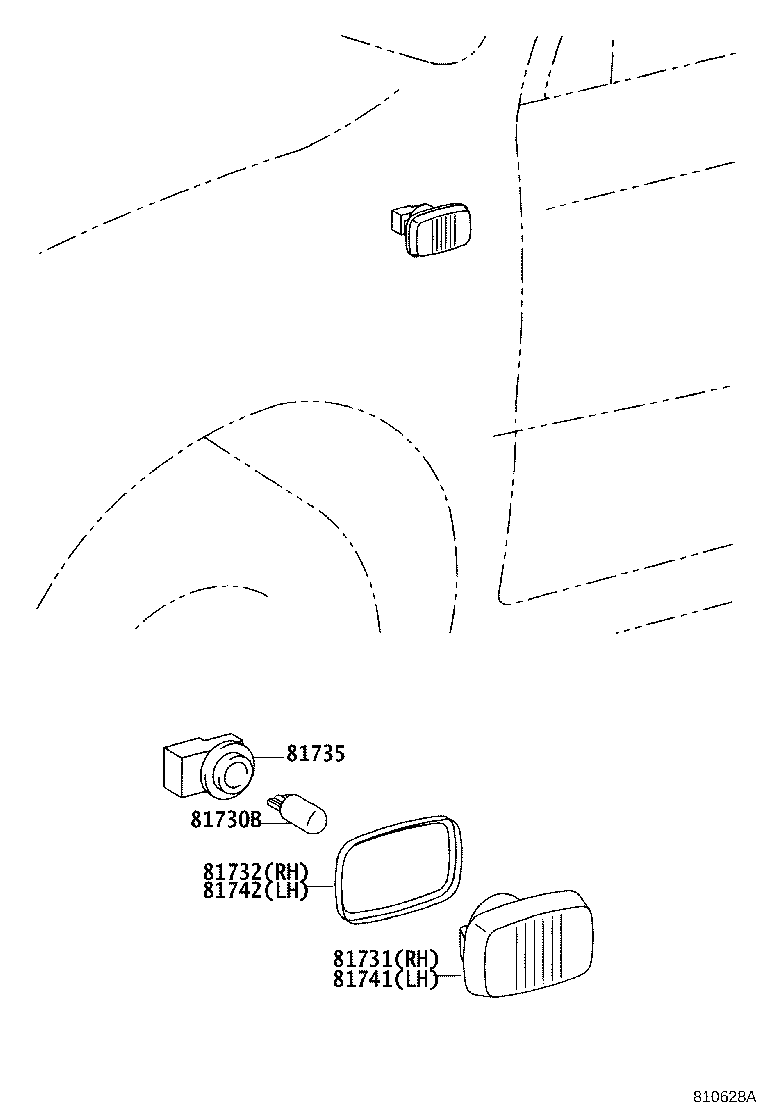

Click highlighted areas on diagram

diagram 81730B 81731 81732 81735 81741 81742
Part # Description Qty Price
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

JZS16#

12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-30120

JZS16#

 1
81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH
81732-30120

JZS16#

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
90075-99012

JZS16#

 2
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81731-30120

JZS16#

 1
81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH
81732-30120

JZS16#

 1
