JZS160-BEPQF (1997)

Toyota Aristo

Production Aug 1997 - Jul 2000
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

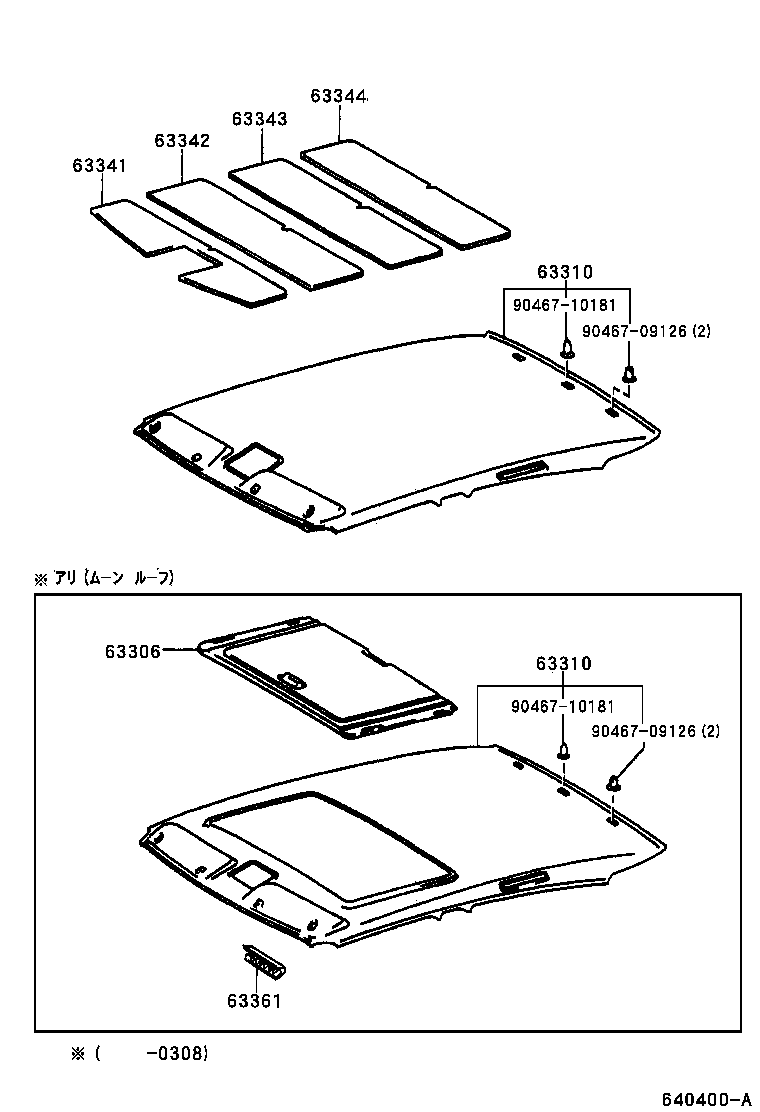

Click highlighted areas on diagram

diagram 63306 63310 63310 63341 63342 63343 63344 63361 9046709126 9046709126 9046710181 9046710181
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-30080B2

JZS16#

MD.CHARCOAL,TRIM1#,22,23,24,25,26

 1
63306-30080A0

JZS16#

IVORY,TRIM0#

 1
63310 - HEADLINING ASSY, ROOF
63310-30830A0

JZS16#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 1
63310-30810A0

JZS16#

IVORY,TRIM0#

 1
63310-30830B0

JZS160

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM1#,2#,23,24,25,26

 1
63310-30810B0

JZS16#

MEDIUM CHARCOAL,TRIM1#,22,23,24,25,26

 1
63310 - HEADLINING ASSY, ROOF
63310-30830A0

JZS16#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 1
63310-30810A0

JZS16#

IVORY,TRIM0#

 1
63310-30830B0

JZS160

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM1#,2#,23,24,25,26

 1
63310-30810B0

JZS16#

MEDIUM CHARCOAL,TRIM1#,22,23,24,25,26

 1
63341 - PAD, ROOF SILENCER, NO.1
63345-30110

JZS16#

 1
63342 - PAD, ROOF SILENCER, NO.2
63346-30050

JZS16#

 1
63343 - PAD, ROOF SILENCER, NO.3
63346-30050

JZS16#

 1
63344 - PAD, ROOF SILENCER, NO.4
63346-30050

JZS16#

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-30420

JZS160

 1
Common parts
90467-09126
90467-10181
