JZS160-BEPQF (1997)

Toyota Aristo

Production Aug 1997 - Jul 2000
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

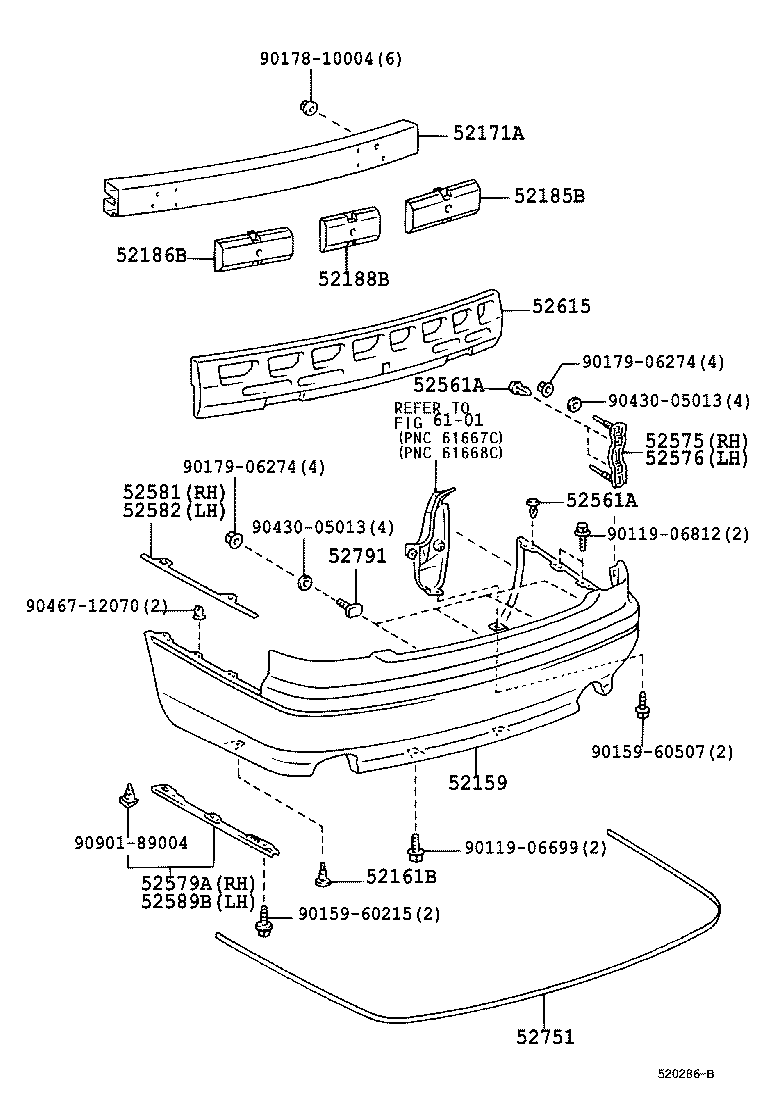

Click highlighted areas on diagram

diagram 52159 52161B 52171A 52185B 52186B 52188B 52561A 52561A 52575 52576 52579A 52581 52582 52589B 52615 52751 52791 6101 9011906699 9011906812 9015960215 9015960507 9017810004 9017906274 9017906274 9043005013 9043005013 9046712070 9090189004
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-30300A0

JZS16#

SU.WHITE PM,051

 1
52159-30300C0

JZS16#

BLACK,202

 1
52159-30300E1

JZS16#

ﾓﾃﾞﾘｽﾀ-TTE ﾊﾞ-ｼﾖﾝ,BEIGE SF.,4P2

 1
52159-30300G0

JZS16#

DK. GREEN MC.,6Q7

 1
52159-30300A1

JZS16#

WHITE PEARL CS.,062

 1
52159-30300J0

JZS16#

DK.BLUE MC.,8L4

 1
52159-30300J1

JZS16#

BLUE MC.,8M6

 1
52159-30300B0

JZS16#

SILVER ME,199

 1
52159-30300D0

JZS16#

RED MC.,3N1

 1
52161B - PIECE, REAR BUMPER
52161-16010

JZS16#

 2
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-30170

JZS16#

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-30090

JZS16#

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-30090

JZS16#

 1
52188B - SPACER, REAR BUMPER MOUNTING
52188-30100

JZS16#

 1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-06015C0

JZS16#

BLACK,062 ,1C0 ,202 ,3N1 ,6Q7 ,8L4 ,8M6

 10
90467-06015C0

JZS16#

BLACK,051 ,199 ,202 ,3N1 ,6Q7 ,8L4

 10
90467-06015C0

JZS16#

BLACK,051 ,199 ,202 ,3N1 ,6Q7 ,8L4 ,8M6

 10
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-06015C0

JZS16#

BLACK,062 ,1C0 ,202 ,3N1 ,6Q7 ,8L4 ,8M6

 10
90467-06015C0

JZS16#

BLACK,051 ,199 ,202 ,3N1 ,6Q7 ,8L4

 10
90467-06015C0

JZS16#

BLACK,051 ,199 ,202 ,3N1 ,6Q7 ,8L4 ,8M6

 10
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-30150

JZS16#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52575-30150

JZS16#

 1
52579A - RETAINER, REAR BUMPER SIDE, NO.3 RH
52579-30080

JZS16#

 1
52581 - PROTECTOR, REAR BUMPER, RH
52581-30040

JZS16#

 1
52582 - PROTECTOR, REAR BUMPER, LH
52582-30030

JZS16#

 1
52589B - RETAINER, REAR BUMPER SIDE, NO.3 LH
52589-30070

JZS16#

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-30200

JZS16#

 1
52751 - MOULDING, REAR BUMPER
52751-30110

JZS16#

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12010

JZS16#

 4
Common parts
90119-06699
90119-06812
90159-60215
90159-60507
90178-10004
90179-06274
90430-05013
90467-12070
90901-89004
Linked diagrams
6101
