JZS160-BEPQF (1997)

Toyota Aristo

Production Aug 1997 - Jul 2000
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

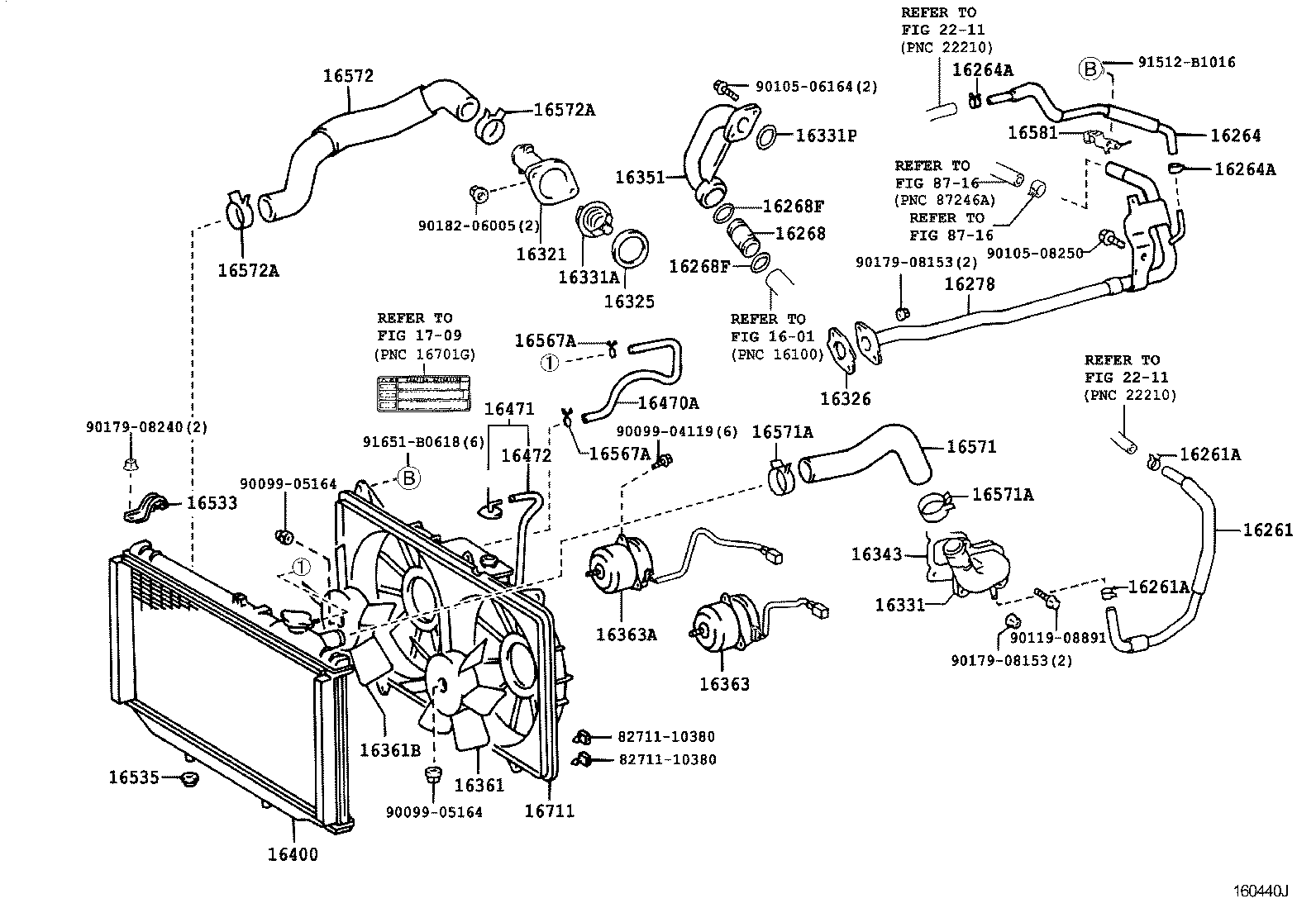

ILLUST NO. 1 OF 2(9708- )2JZGE

Click highlighted areas on diagram

diagram 1601 16261 16261A 16261A 16264 16264A 16264A 16268 16268F 16268F 16278 16321 16325 16326 16331 16331A 16331P 16343 16351 16361 16361B 16363 16363A 16400 16470A 16471 16472 16533 16535 16567A 16567A 16571 16571A 16571A 16572 16572A 16572A 16581 16711 1709 2211 2211 8271110380 8271110380 8716 8716 9009904119 9009905164 9009905164 9010506164 9010508250 9011908891 9017908153 9017908153 9017908240 9018206005 91512B1016 91651B0618
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-46020

2JZGE..JZS160

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13050

2JZGE..JZS160

 2
96135-51300

2JZGE..JZS160

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13050

2JZGE..JZS160

 2
96135-51300

2JZGE..JZS160

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-46041

2JZGE..JZS160

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-51300

2JZGE..JZS160

 2
90467-13050

2JZGE..JZS160

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-51300

2JZGE..JZS160

 2
90467-13050

2JZGE..JZS160

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-46011

2JZGE..JZS160

 1
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24022

2JZGE..JZS160

 2
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24022

2JZGE..JZS160

 2
16278 - PIPE, WATER BY-PASS, NO.2
16278-46051

2JZGE..JZS160

 1
16278-46050

2JZGE..JZS160

 1
16321 - INLET, WATER
16321-46040

2JZGE..JZS160

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010

2JZGE..JZS160

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16325-46010

2JZGE..JZS160

 1
16331 - OUTLET, WATER
16331-46041

2JZGE..JZS160

 1
16331A - THERMOSTAT
90916-03093

2JZGE..JZS160

*WAX 82−95

 1
16331P - RING,O(FOR WATER OUTLET)
96761-24028

2JZGE..JZS160

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-46020

2JZGE..JZS160

 1
16351 - OUTLET, WATER BY-PASS
16351-46022

2JZGE..JZS160

 1
16361 - FAN
16361-46080

2JZGE..JZS160

 1
16361B - FAN, NO.2
16361-46090

2JZGE..JZS160

 1
16363 - MOTOR, COOLING FAN
16363-46050

2JZGE..JZS160

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-46040

2JZGE..JZS160

 1
16400 - RADIATOR ASSY
16400-46570

2JZGE..JZS160

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-46080

2JZGE..JZS160

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-46080

2JZGE..JZS160

 1
16472 - HOSE, BREATHER
90445-12117

2JZGE..JZS160

*H,L=460

 1
16533 - SUPPORT, RADIATOR, UPPER
16505-50080

2JZ#..JZS16#

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-40016

2JZ#..JZS16#

 2
16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2JZGE..JZS160

 2
16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2JZGE..JZS160

 2
16571 - HOSE, RADIATOR, INLET
16571-46200

2JZGE..JZS160

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37005

2JZ#..JZS16#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37005

2JZ#..JZS16#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-46210

2JZGE..JZS160

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-41007

2JZ#..JZS16#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-41007

2JZ#..JZS16#

 2
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-46040

2JZGE..JZS160

 1
16711 - SHROUD, FAN
16711-46260

2JZGE..JZS160

 1
Common parts
82711-10380
90099-04119
90099-05164
90105-06164
90105-08250
90119-08891
90179-08153
90179-08240
90182-06005
91512-B1016
91651-B0618
Linked diagrams
1601
1709
2211
8716

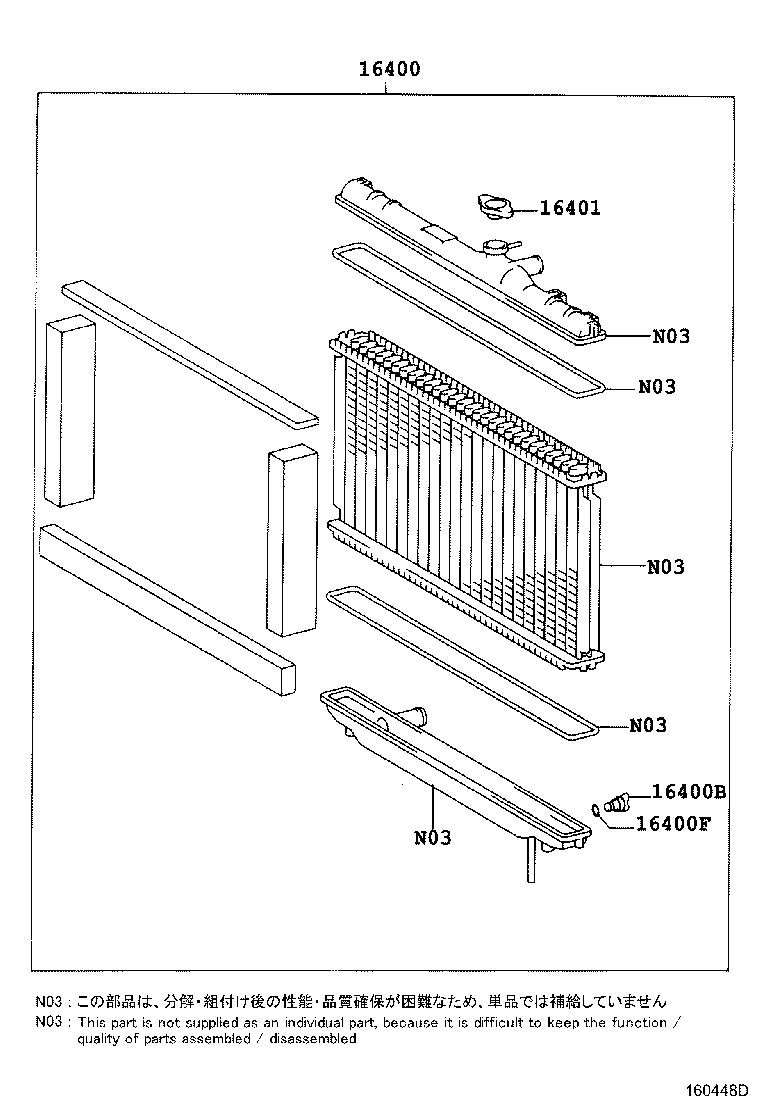

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-46570

2JZGE..JZS160

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

2JZ#..JZS16#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

2JZ#..JZS16#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-46610

2JZ#..JZS16#

 1
