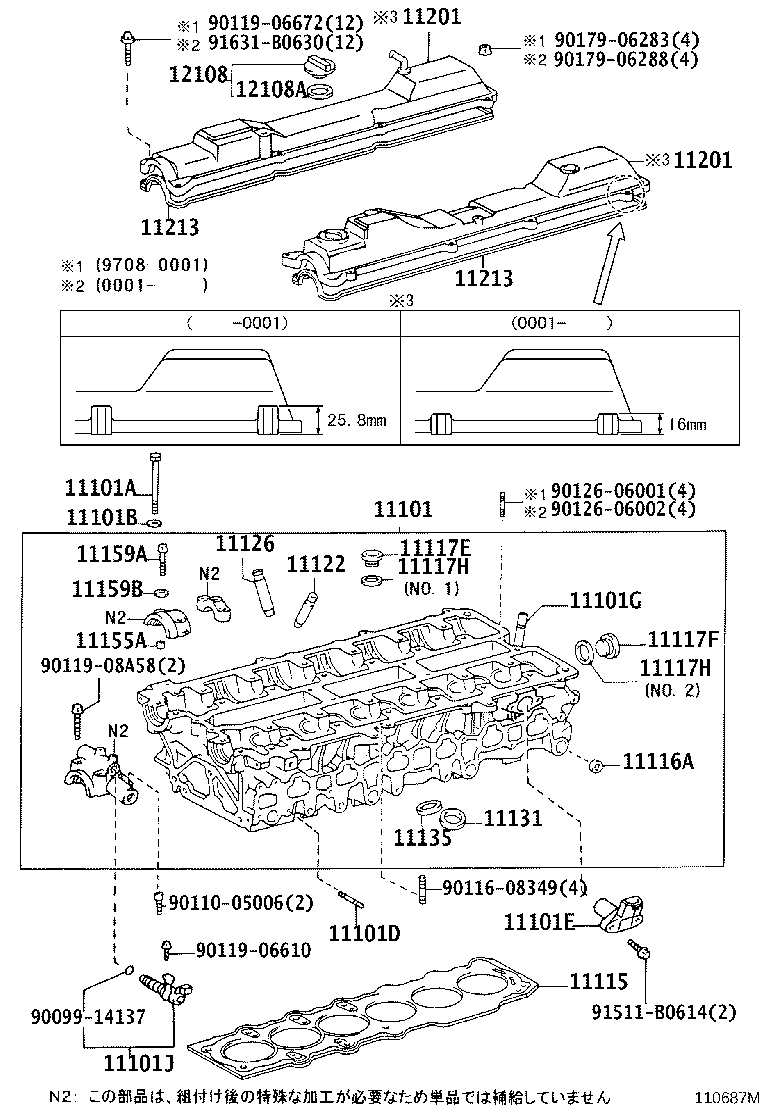

JZS160-BEPQF (1997)
Toyota Aristo
(9708- )2JZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-49376 |
2JZGE..JZS160 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02102 |
2JZGE..JZS160 |
14 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11018 |
2JZGE..JZS160 |
14 | ||
| 11101D - BOLT, STUD(FOR WATER OUTLET) | ||||
| 90116-08348 |
2JZGE..JZS160 |
2 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05007 |
2JZGE..JZS160 |
1 | ||
| 11101G - UNION(FOR CYLINDER HEAD) | ||||
| 90406-17017 |
2JZGE..JZS160 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-46010 |
2JZGE..JZS160 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-46044 |
2JZGE..JZS160 |
1 | ||
| 11115-46045 |
2JZGE..JZS160 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42000 |
2JZGE..JZS160 |
4 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-24010 |
2JZGE..JZS160 |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-36001 |
2JZGE..JZS160 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-36003 |
2JZGE..JZS160 NO.2 |
1 | ||
| 90430-24010 |
2JZGE..JZS160 NO.1 |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-36003 |
2JZGE..JZS160 NO.2 |
1 | ||
| 90430-24010 |
2JZGE..JZS160 NO.1 |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-74030 |
2JZGE..JZS160 STD |
12 | ||
| 11123-74030 |
2JZGE..JZS160 O/S 0.05 |
12 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-16010 |
2JZGE..JZS160 O/S 0.05 |
12 | ||
| 11122-16010 |
2JZGE..JZS160 STD |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-46020 |
2JZGE..JZS160 O/S 0.03 |
12 | ||
| 11131-46020 |
2JZGE..JZS160 STD |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-46020 |
2JZGE..JZS160 STD |
12 | ||
| 11136-46020 |
2JZGE..JZS160 O/S 0.03 |
12 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2JZGE..JZS160 |
28 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-08890 |
2JZGE..JZS160 |
26 | ||
| 11159B - WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90210-08033 |
2JZGE..JZS160 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0W050 |
2JZGE..JZS160 (ﾏｸﾞﾈｼｳﾑ 900ｸﾞﾗﾑ),ｲﾝﾃｰｸ側 |
1 | ||
| 11201-46063 |
2JZGE..JZS160 ｲﾝﾃｰｸ側 |
1 | ||
| 11201-46062 |
2JZGE..JZS160 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-46032 |
2JZGE..JZS160 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11202-0W050 |
2JZGE..JZS160 (ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ),ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11202-46031 |
2JZGE..JZS160 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201-46061 |
2JZGE..JZS160 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-46033 |
2JZGE..JZS160 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0W050 |
2JZGE..JZS160 (ﾏｸﾞﾈｼｳﾑ 900ｸﾞﾗﾑ),ｲﾝﾃｰｸ側 |
1 | ||
| 11201-46063 |
2JZGE..JZS160 ｲﾝﾃｰｸ側 |
1 | ||
| 11201-46062 |
2JZGE..JZS160 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-46032 |
2JZGE..JZS160 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11202-0W050 |
2JZGE..JZS160 (ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ),ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11202-46031 |
2JZGE..JZS160 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201-46061 |
2JZGE..JZS160 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-46033 |
2JZGE..JZS160 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-46030 |
2JZGE..JZS160 ｲﾝﾃｰｸ側 |
1 | ||
| 11214-46011 |
2JZGE..JZS160 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-46030 |
2JZGE..JZS160 ｲﾝﾃｰｸ側 |
1 | ||
| 11214-46011 |
2JZGE..JZS160 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-20030 |
2JZGE..JZS160 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-20020 |
2JZGE..JZS160 |
1 | ||
| Common parts | ||||
| 90099-14137 | ||||
| 90110-05006 | ||||
| 90116-08349 | ||||
| 90119-06610 | ||||
| 90119-06672 | ||||
| 90119-08A58 | ||||
| 90126-06001 | ||||
| 90126-06002 | ||||
| 90179-06283 | ||||
| 90179-06288 | ||||
| 91511-B0614 | ||||
| 91631-B0630 | ||||
