JZS160-BEAQF (2000)

Toyota Aristo

Production Jul 2000 - Jan 2005
Engine 2JZGE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0007-0501)

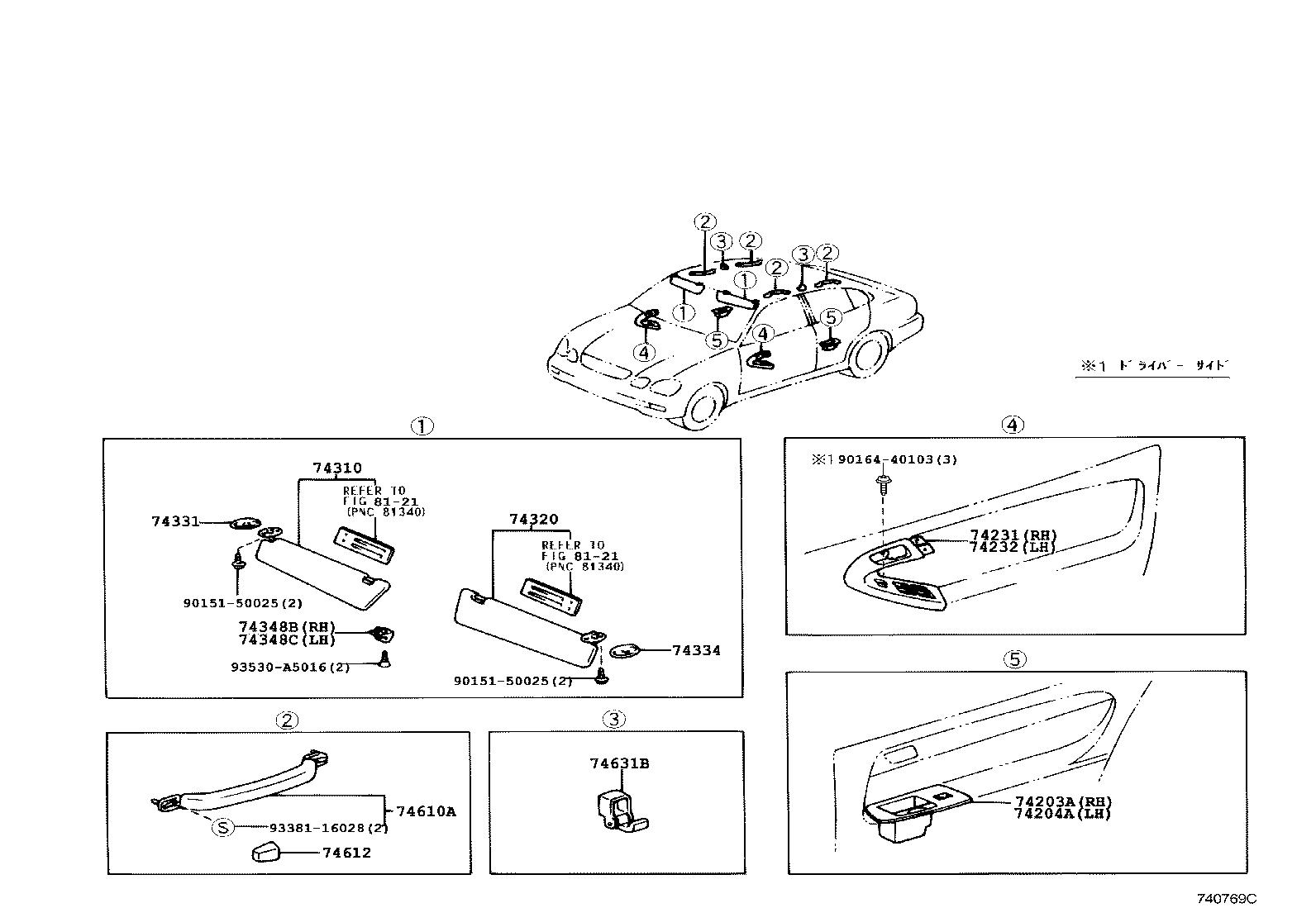

Click highlighted areas on diagram

diagram 74203A 74204A 74231 74232 74310 74320 74331 74334 74348B 74348C 74610A 74612 74631B 8121 8121 9015150025 9015150025 9016440103 9338116028 93530A5016
Part # Description Qty Price
74203A - PANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH
74203-30090B0

JZS16#

DK.CHARCOAL,TRIM1#

 1
74203-30090E0

JZS16#

SANDAL WOOD,TRIM0#

 1
74203-30090C0

JZS16#

BLACK,TRIM22,23,24,25,26

 1
74203-30090C0

JZS16#

BLACK,TRIM22,23

 1
74204A - PANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH
74204-30090C0

JZS16#

BLACK,TRIM22,23,24,25,26

 1
74204-30090C0

JZS16#

BLACK,TRIM22,23

 1
74204-30090E0

JZS16#

SANDAL WOOD,TRIM0#

 1
74204-30090B0

JZS16#

DK.CHARCOAL,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-30290B0

JZS16#

DK.CHARCOAL,TRIM1#

 1
74231-30290E0

JZS16#

SANDAL WOOD,TRIM0#

 1
74231-30290C0

JZS16#

BLACK,TRIM22,23,24,25,26

 1
74231-30290C0

JZS16#

BLACK,TRIM22,23

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-30220C0

JZS16#

BLACK,TRIM22,23

 1
74232-30220E0

JZS16#

SANDAL WOOD,TRIM0#

 1
74232-30220C0

JZS16#

BLACK,TRIM22,23,24,25,26

 1
74232-30220B0

JZS16#

DK.CHARCOAL,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-3A200B0

JZS16#

MD.CHARCOAL,TRIM1#,22,23

 1
74310-3A070B0

JZS16#

MD.CHARCOAL,TRIM1#,22,23,24,25,26

 1
74310-3A070A0

JZS16#

IVORY,TRIM0#

 1
74310-3A200A0

JZS16#

IVORY,TRIM0#

 1
74320 - VISOR ASSY, LH
74320-30780A0

JZS16#

IVORY,TRIM0#

 1
74320-30780B0

JZS16#

MD.CHARCOAL,TRIM1#,22,23,24,25,26

 1
74320-3A020A0

JZS16#

IVORY,TRIM0#

 1
74320-3A020B0

JZS16#

MD.CHARCOAL,TRIM1#,22,23

 1
74331 - CASE, VISOR ARM, RH
74317-50010B0

JZS16#

MD.CHARCOAL,TRIM1#,22,23

 1
74331-50030B1

JZS16#

MD.CHARCOAL,TRIM1#,22,23

 1
74331-50030B1

JZS16#

MD.CHARCOAL,TRIM1#,22,23,24,25,26

 1
74331-50030A1

JZS16#

IVORY,TRIM0#

 1
74317-50010A0

JZS16#

IVORY,TRIM0#

 1
74334 - CASE, VISOR ARM, LH
74331-50030B1

JZS16#

MD.CHARCOAL,TRIM1#,22,23

 1
74317-50010A0

JZS16#

IVORY,TRIM0#

 1
74331-50030A1

JZS16#

IVORY,TRIM0#

 1
74317-50010B0

JZS16#

MD.CHARCOAL,TRIM1#,22,23

 1
74331-50030B1

JZS16#

MD.CHARCOAL,TRIM1#,22,23,24,25,26

 1
74348B - HOLDER, VISOR, RH
74348-50020A1

JZS16#

IVORY,TRIM0#

 1
74348-50020B2

JZS16#

MD.CHARCOAL,TRIM1#,22,23

 1
74348-50020B2

JZS16#

MD.CHARCOAL,TRIM1#,22,23,24,25,26

 1
74348C - HOLDER, VISOR, LH
74348-50020B2

JZS16#

MD.CHARCOAL,TRIM1#,22,23

 1
74348-50020B2

JZS16#

MD.CHARCOAL,TRIM1#,22,23,24,25,26

 1
74348-50020A1

JZS16#

IVORY,TRIM0#

 1
74610A - GRIP SUB-ASSY, ASSIST
74610-30210A0

JZS16#

IVORY,TRIM0#

 3
74610-30210B0

JZS16#

MD.CHARCOAL,TRIM1#,22,23,24,25,26

 3
74610-30230A0

JZS16#

IVORY,TRIM0#

 4
74610-30230B0

JZS16#

MD.CHARCOAL,TRIM1#,22,23

 4
74612 - COVER, ASSIST GRIP
74612-30170B0

JZS16#

MD.CHARCOAL,TRIM1#,22,23,24,25,26

 6
74612-30170A0

JZS16#

IVORY,TRIM0#

 6
74612-30171B0

JZS16#

MD.CHARCOAL,TRIM1#,22,23

 8
74612-30171A0

JZS16#

IVORY,TRIM0#

 8
74631B - HOOK, COAT
74605-30010B0

JZS16#

MD.CHARCOAL,TRIM1#,22,23,24,25,26

 2
74605-30010A0

JZS16#

IVORY,TRIM0#

 2
74605-30010B0

JZS16#

MD.CHARCOAL,TRIM1#,22,23

 2
Common parts
90151-50025
90164-40103
93381-16028
93530-A5016
Linked diagrams
8121
