JZS147-BEPVZ (1991)

Toyota Aristo

Production Oct 1991 - Aug 1997
Engine 2JZGTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

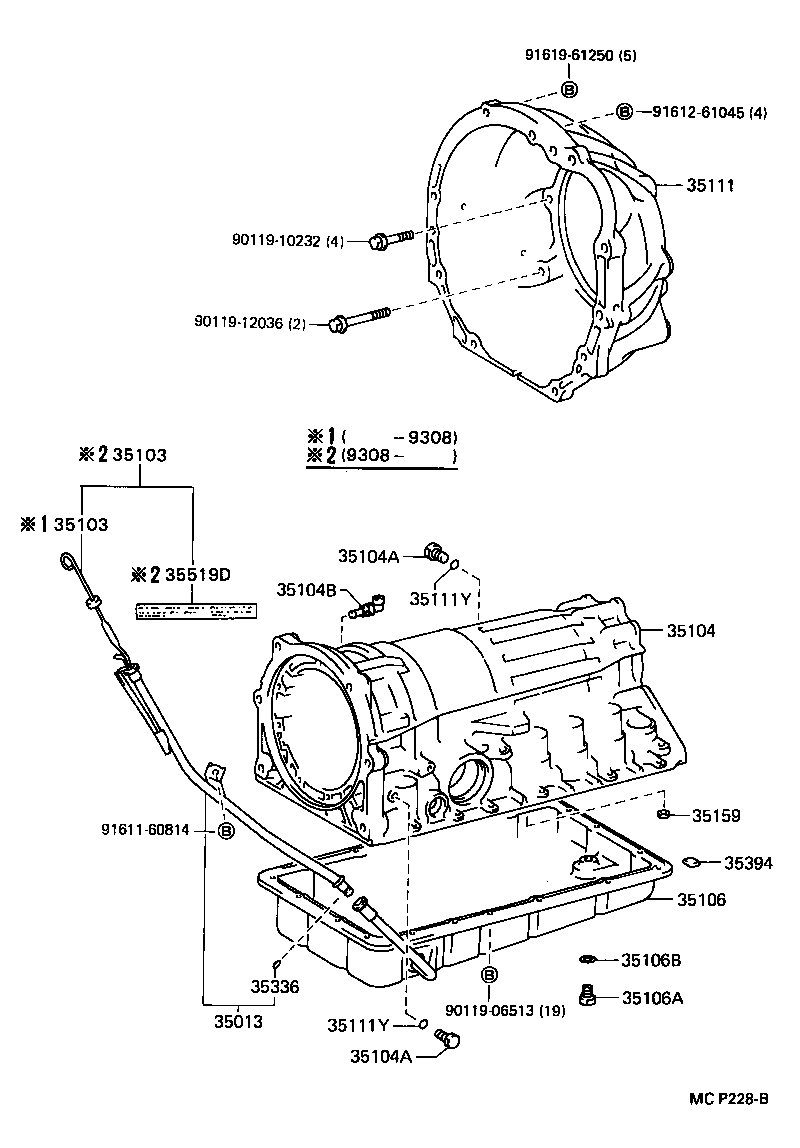

Click highlighted areas on diagram

A340E,A341H

diagram 35013 35103 35103 35104 35104A 35104A 35104B 35106 35106A 35106B 35111 35111Y 35111Y 35159 35336 35394 35519D 9011906513 9011910232 9011912036 9161160814 9161261045 9161961250
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-30290

JZS147..V

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-30290

JZS147..V

 1
35103-30291

JZS147..V

 1
35103-30292

JZS147..V

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-30290

JZS147..V

 1
35103-30291

JZS147..V

 1
35103-30292

JZS147..V

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-30170

JZS147

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

JZS147,UZS143

 2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

JZS147,UZS143

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03108

JZS147,UZS143

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30130

JZS147

 1
35106-30130

JZS147..V

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10012

JZS147

 1
90341-10012

JZS147,UZS143

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-50010

JZS147,UZS143

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-30140

JZS147..V

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

JZS147,UZS143

 2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

JZS147,UZS143

 2
35159 - GASKET, BRAKE DRUM
35159-30010

JZS147,UZS143

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

JZS147

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

JZS147

 4
35394-30011

JZS147

 3
Common parts
90119-06513
90119-10232
90119-12036
91611-60814
91612-61045
91619-61250
