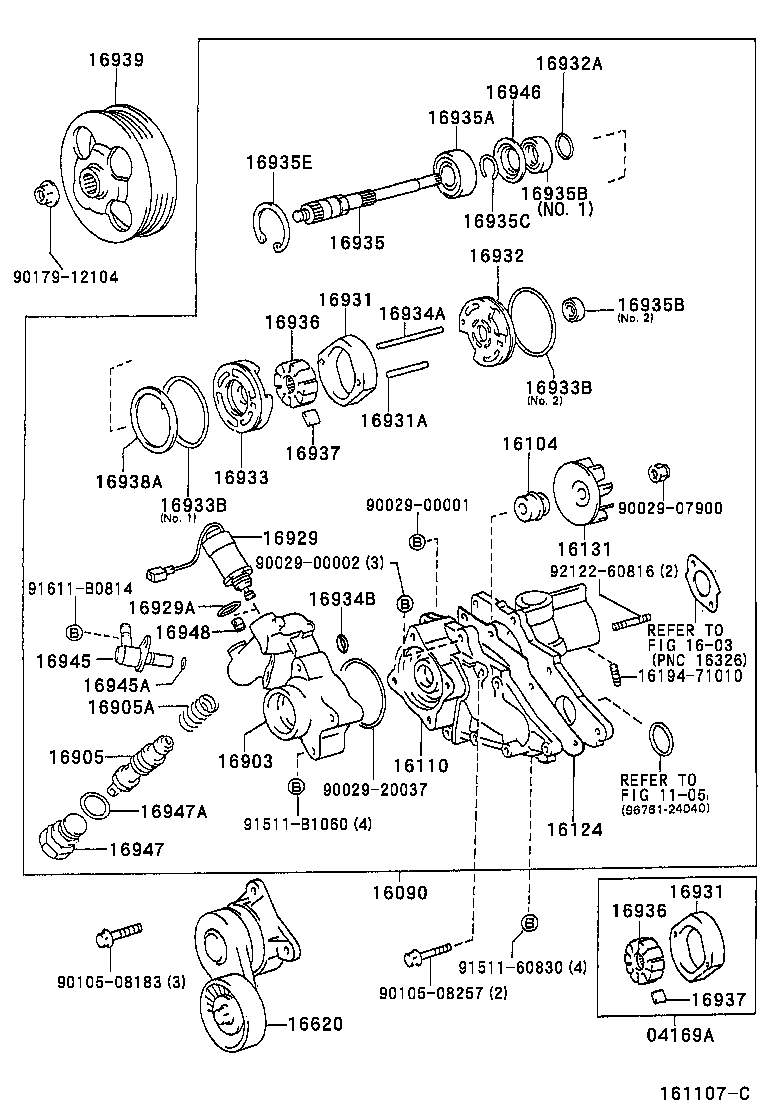

JZS147-BEPVZ (1991)
Toyota Aristo
(9110-9708)2JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04169A - ROTOR KIT, VANE PUMP | ||||
| 04169-46010 |
2JZGTE..JZS147 |
1 | ||
| 16090 - PUMP ASSY, HYDRAULIC MOTOR VANE W/O PULLEY | ||||
| 16090-49025 |
2JZGTE..JZS147 |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-54030 |
2JZGTE..JZS147 |
1 | ||
| 16104-46030 |
2JZGTE..JZS147 |
1 | ||
| 16110 - PUMP ASSY, WATER, W/O COUPLING | ||||
| 16110-46011 |
2JZGTE..JZS147 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-46011 |
2JZGTE..JZS147 |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-46011 |
2JZGTE..JZS147 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0W021 |
2JZ#..JZS147 |
1 | ||
| 16620-46031 |
2JZ#..JZS147 |
1 | ||
| 16620-0W023 |
2JZ#..JZS147 |
1 | ||
| 16620-0W020 |
2JZ#..JZS147 |
1 | ||
| 16620-46032 |
2JZ#..JZS147 |
1 | ||
| 16620-0W024 |
2JZ#..JZS147 |
1 | ||
| 16903 - HOUSING SUB-ASSY, HYDRAULIC MOTOR PUMP, FRONT | ||||
| 16903-46011 |
2JZGTE..JZS147 |
1 | ||
| 16905 - BODY SUB-ASSY, HYDRAULIC MOTOR PUMP SPOOL VALVE | ||||
| 16905-46040 |
2JZGTE..JZS147 ﾏｰｸ 8 |
1 | ||
| 16905-46030 |
2JZGTE..JZS147 ﾏｰｸ 7 |
1 | ||
| 16905-46020 |
2JZGTE..JZS147 ﾏｰｸ 6 |
1 | ||
| 16905-46010 |
2JZGTE..JZS147 ﾏｰｸ 5 |
1 | ||
| 16905-46050 |
2JZGTE..JZS147 ﾏｰｸ 9 |
1 | ||
| 16905-46060 |
2JZGTE..JZS147 ﾏｰｸ 10 |
1 | ||
| 16905A - SPRING, COMPRESSION | ||||
| 90029-60005 |
2JZGTE..JZS147 |
1 | ||
| 16929 - VALVE, HYDRAULIC MOTOR CONTROL | ||||
| 16929-46010 |
2JZGTE..JZS147 |
1 | ||
| 16929A - RING, O(FOR HYDRAULIC MOTOR CONTROL VALVE) | ||||
| 90029-20031 |
2JZGTE..JZS147 |
1 | ||
| 16931 - RING, HYDRAULIC MOTOR VANE PUMP CAM | ||||
| 16931-46030 |
2JZGTE..JZS147 ﾏｰｸ 3 |
1 | ||
| 16931-46040 |
2JZGTE..JZS147 ﾏｰｸ 4 |
1 | ||
| 16931-46020 |
2JZGTE..JZS147 ﾏｰｸ 2 |
1 | ||
| 16931-46010 |
2JZGTE..JZS147 ﾏｰｸ 1 |
1 | ||
| 16931-46050 |
2JZGTE..JZS147 ﾏｰｸ 5 |
1 | ||
| 16931 - RING, HYDRAULIC MOTOR VANE PUMP CAM | ||||
| 16931-46030 |
2JZGTE..JZS147 ﾏｰｸ 3 |
1 | ||
| 16931-46040 |
2JZGTE..JZS147 ﾏｰｸ 4 |
1 | ||
| 16931-46020 |
2JZGTE..JZS147 ﾏｰｸ 2 |
1 | ||
| 16931-46010 |
2JZGTE..JZS147 ﾏｰｸ 1 |
1 | ||
| 16931-46050 |
2JZGTE..JZS147 ﾏｰｸ 5 |
1 | ||
| 16931A - PIN, STRAIGHT | ||||
| 90029-14201 |
2JZGTE..JZS147 |
1 | ||
| 16932 - PLATE, THRUST | ||||
| 16932-46010 |
2JZGTE..JZS147 |
1 | ||
| 16932A - RING, O(FOR THRUST PLATE) | ||||
| 90029-20035 |
2JZGTE..JZS147 |
1 | ||
| 16933 - PLATE, PRESSURE | ||||
| 16933-46010 |
2JZGTE..JZS147 |
1 | ||
| 16933B - RING, O(FOR PRESSURE PLATE) | ||||
| 90029-20037 |
2JZGTE..JZS147 NO.2 |
1 | ||
| 90029-20029 |
2JZGTE..JZS147 NO.1 |
1 | ||
| 16933B - RING, O(FOR PRESSURE PLATE) | ||||
| 90029-20037 |
2JZGTE..JZS147 NO.2 |
1 | ||
| 90029-20029 |
2JZGTE..JZS147 NO.1 |
1 | ||
| 16934A - PIN, STRAIGHT | ||||
| 90029-14202 |
2JZGTE..JZS147 |
1 | ||
| 16934B - RING, O(FOR HIDRAULIC MOTOR PUMP FRONT HOUSING) | ||||
| 90029-20038 |
2JZGTE..JZS147 |
1 | ||
| 16935 - SHAFT, HYDRAULIC MOTOR VANE PUMP DRAIVE | ||||
| 16935-46010 |
2JZGTE..JZS147 |
1 | ||
| 16935A - BEARING, RADIAL BALL(FOR HYD MOTOR VANE PUMP DRIVE SHAF | ||||
| 90029-36006 |
2JZGTE..JZS147 |
1 | ||
| 16935B - SEAL, OIL(FOR HYDRAULIC MOTOR VANE PUMP DRIVE SHAFT) | ||||
| 90029-21016 |
2JZGTE..JZS147 NO.1 |
1 | ||
| 90029-21017 |
2JZGTE..JZS147 NO.2 |
1 | ||
| 16935B - SEAL, OIL(FOR HYDRAULIC MOTOR VANE PUMP DRIVE SHAFT) | ||||
| 90029-21016 |
2JZGTE..JZS147 NO.1 |
1 | ||
| 90029-21017 |
2JZGTE..JZS147 NO.2 |
1 | ||
| 16935C - RING, SHAFT SPRING(FOR HYD MOTOR VANE PUMP DRIVE SHAFT) | ||||
| 90029-52402 |
2JZGTE..JZS147 |
1 | ||
| 16935E - RING, SNAP(FOR HYDRAULIC MOTOR VANE PUMP DRIVE SHAFT) | ||||
| 96151-04000 |
2JZGTE..JZS147 |
1 | ||
| 16936 - ROTOR, HYDRAULIC MOTOR VANE PUMP | ||||
| 16936-46010 |
2JZGTE..JZS147 ﾏｰｸ 1 |
1 | ||
| 16936-46030 |
2JZGTE..JZS147 ﾏｰｸ 3 |
1 | ||
| 16936-46050 |
2JZGTE..JZS147 ﾏｰｸ 5 |
1 | ||
| 16936-46040 |
2JZGTE..JZS147 ﾏｰｸ 4 |
1 | ||
| 16936-46020 |
2JZGTE..JZS147 ﾏｰｸ 2 |
1 | ||
| 16936 - ROTOR, HYDRAULIC MOTOR VANE PUMP | ||||
| 16936-46010 |
2JZGTE..JZS147 ﾏｰｸ 1 |
1 | ||
| 16936-46030 |
2JZGTE..JZS147 ﾏｰｸ 3 |
1 | ||
| 16936-46050 |
2JZGTE..JZS147 ﾏｰｸ 5 |
1 | ||
| 16936-46040 |
2JZGTE..JZS147 ﾏｰｸ 4 |
1 | ||
| 16936-46020 |
2JZGTE..JZS147 ﾏｰｸ 2 |
1 | ||
| 16937 - VANE, HYDRAULIC MOTOR VANE PUMP | ||||
| 16937-50030 |
2JZGTE..JZS147 ﾏｰｸ 3 |
1 | ||
| 16937-50050 |
2JZGTE..JZS147 ﾏｰｸ 5 |
1 | ||
| 16937-50010 |
2JZGTE..JZS147 ﾏｰｸ 1 |
1 | ||
| 16937-50020 |
2JZGTE..JZS147 ﾏｰｸ 2 |
1 | ||
| 16937-50040 |
2JZGTE..JZS147 ﾏｰｸ 4 |
1 | ||
| 16937 - VANE, HYDRAULIC MOTOR VANE PUMP | ||||
| 16937-50030 |
2JZGTE..JZS147 ﾏｰｸ 3 |
1 | ||
| 16937-50050 |
2JZGTE..JZS147 ﾏｰｸ 5 |
1 | ||
| 16937-50010 |
2JZGTE..JZS147 ﾏｰｸ 1 |
1 | ||
| 16937-50020 |
2JZGTE..JZS147 ﾏｰｸ 2 |
1 | ||
| 16937-50040 |
2JZGTE..JZS147 ﾏｰｸ 4 |
1 | ||
| 16938A - WASHER WAVE(FOR HYDRAULIC MOTOR VANE PUMP PULLEY SEAT) | ||||
| 90029-11401 |
2JZGTE..JZS147 |
1 | ||
| 16939 - PULLEY, HYDRAULIC MOTOR VANE PUMP | ||||
| 16939-46010 |
2JZGTE..JZS147 |
1 | ||
| 16945 - UNION, HYDRAULIC MOTOR VANE PUMP SUCTION PORT | ||||
| 16945-46020 |
2JZGTE..JZS147 |
1 | ||
| 16945A - RING, O(FOR SUCTION PORT UNION) | ||||
| 90029-20023 |
2JZGTE..JZS147 |
1 | ||
| 16946 - RETAINER, OIL SEAL | ||||
| 16946-50010 |
2JZGTE..JZS147 |
1 | ||
| 16947 - PLUG, HYDRAULIC MOTOR VANE PUMP SCREW | ||||
| 16947-46010 |
2JZGTE..JZS147 |
1 | ||
| 16947A - RING, O(FOR SCREW PLUG) | ||||
| 90029-20030 |
2JZGTE..JZS147 |
1 | ||
| 16948 - FILTER, HYDRAULIC MOTOR VANE PUMP | ||||
| 16948-50010 |
2JZGTE..JZS147 |
1 | ||
| Common parts | ||||
| 16194-71010 | ||||
| 90029-00001 | ||||
| 90029-00002 | ||||
| 90029-07900 | ||||
| 90029-20037 | ||||
| 90105-08183 | ||||
| 90105-08257 | ||||
| 90179-12104 | ||||
| 91511-60830 | ||||
| 91511-B1060 | ||||
| 91611-B0814 | ||||
| 92122-60816 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1603 | ||||
