JZS147-BEPQF (1991)

Toyota Aristo

Production Oct 1991 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9708)

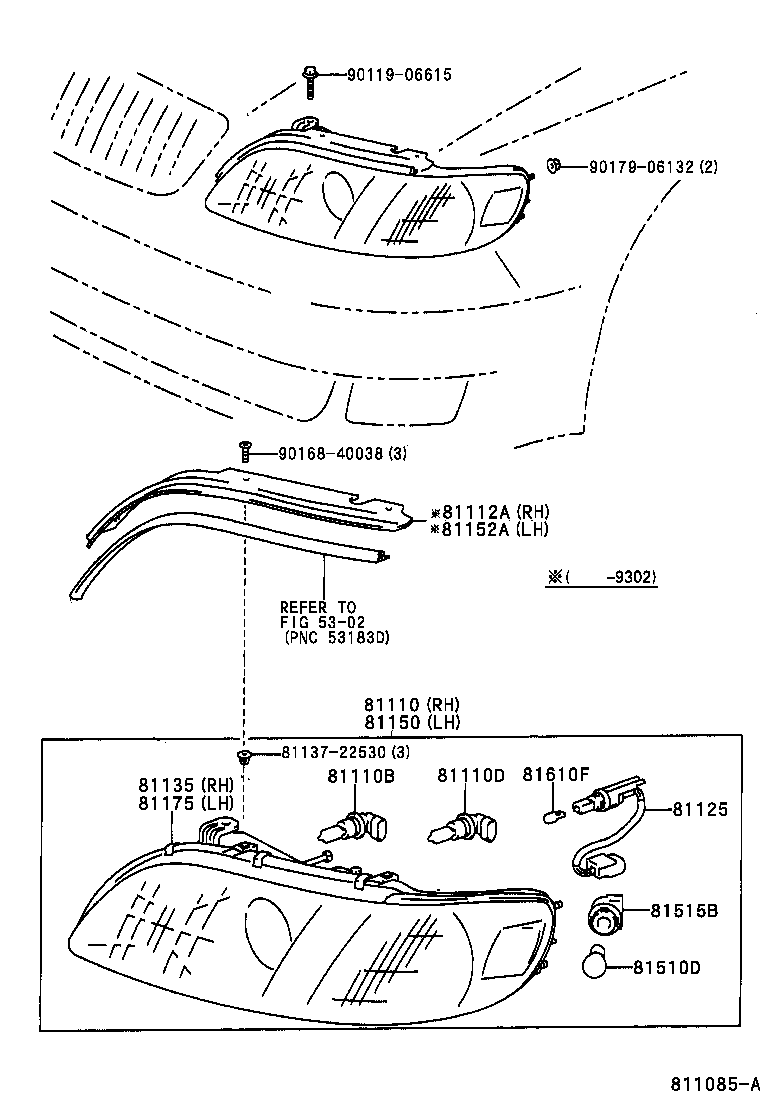

Click highlighted areas on diagram

diagram 5302 81110 81110B 81110D 81112A 81125 81135 8113722530 81150 81152A 81175 81510D 81515B 81610F 9011906615 9016840038 9017906132
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81120-30692

JZS147,UZS143

 1
81120-30694

JZS147,UZS143

 1
81120-30693

JZS147,UZS143

 1
81120-30695

JZS147,UZS143

 1
81120-30690

JZS147,UZS143

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13053

JZS147,UZS143

12V 55W,ﾊﾛｹﾞﾝ

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13054

JZS147,UZS143

12V 55W,*HAL,*WH

 2
81112A - RIM, HEADLAMP, RH
81116-30690

JZS147

 1
81116-30691

JZS147,UZS143

 1
81125 - CORD, HEADLAMP
81125-30690

JZS147,UZS143

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-30690

JZS147,UZS143

 1
81130-30695

JZS147,UZS143

 1
81130-30694

JZS147,UZS143

 1
81150 - HEADLAMP ASSY, LH
81160-30890

JZS147,UZS143

 1
81160-30895

JZS147,UZS143

 1
81160-30894

JZS147,UZS143

 1
81160-30892

JZS147,UZS143

 1
81160-30893

JZS147,UZS143

 1
81152A - RIM, HEADLAMP, LH
81156-30891

JZS147,UZS143

 1
81156-30890

JZS147

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-30895

JZS147,UZS143

 1
81170-30894

JZS147,UZS143

 1
81170-30890

JZS147,UZS143

 1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

JZS147,UZS143

12V 21W

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-99020

JZS147,UZS143

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-12023

JZS147,UZS143

12V 5W,ﾊﾛｹﾞﾝ

 2
99132-12050

JZS147,UZS143

12V 5W

 2
Common parts
81137-22530
90119-06615
90168-40038
90179-06132
Linked diagrams
5302
