JZS147-BEPQF (1991)

Toyota Aristo

Production Oct 1991 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

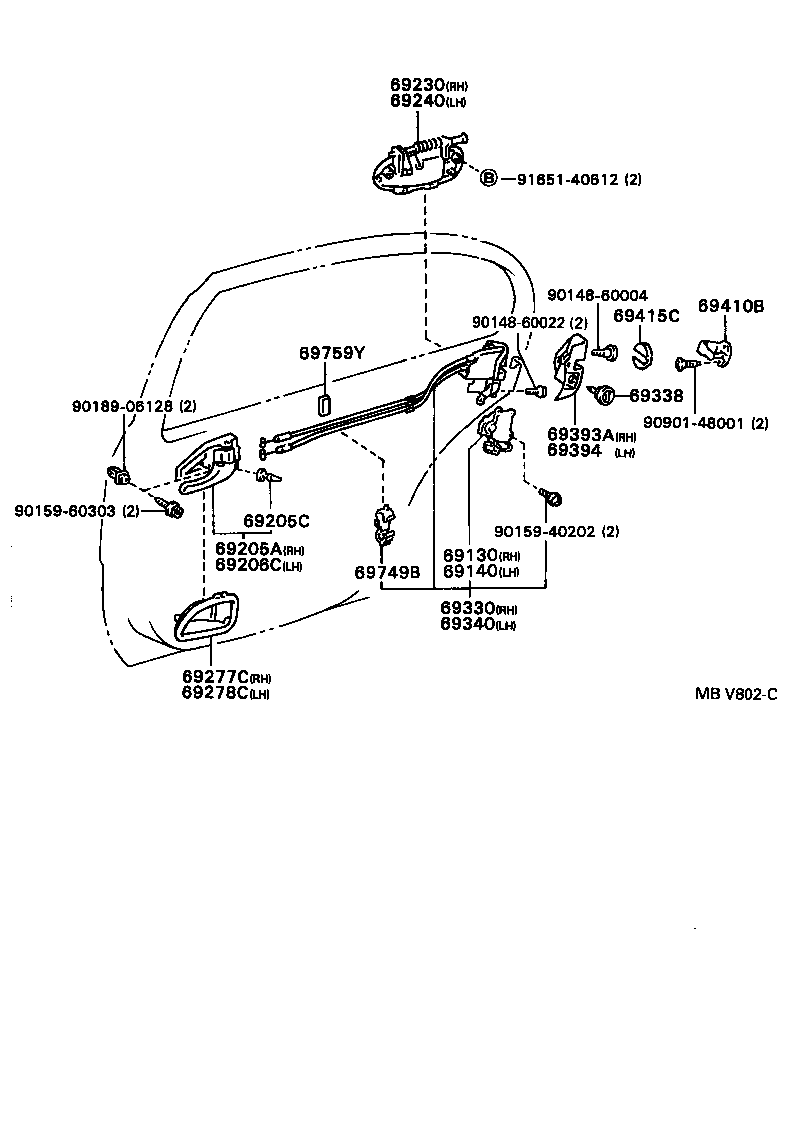

Click highlighted areas on diagram

diagram 69130 69140 69205A 69205C 69206C 69230 69240 69277C 69278C 69330 69338 69340 69393A 69394 69410B 69415C 69749B 69759Y 9014860004 9014860022 9015940202 9015960303 9018906128 9090148001 9165140612
Part # Description Qty Price
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-30080

JZS147,UZS143

 1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-30080

JZS147,UZS143

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-30070G0

JZS147,UZS143

LI.SPRUCE,TRIM6#

 1
69205-30071B0

JZS147,UZS143

MD.GRAY,TRIM1#

 1
69205-30070A0

JZS147,UZS143

IVORY,TRIM0#

 1
69205-30071G0

JZS147,UZS143

SPRUCE,TRIM6#

 1
69205-30070B0

JZS147,UZS143

GRAY,TRIM1#

 1
69205-30071A0

JZS147,UZS143

IVORY,TRIM0#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04018

JZS147,UZS143

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-30070A0

JZS147,UZS143

IVORY,TRIM0#

 1
69206-30070G0

JZS147,UZS143

LI.SPRUCE,TRIM6#

 1
69206-30070B0

JZS147,UZS143

GRAY,TRIM1#

 1
69206-30071G0

JZS147,UZS143

SPRUCE,TRIM6#

 1
69206-30071A0

JZS147,UZS143

IVORY,TRIM0#

 1
69206-30071B0

JZS147,UZS143

MD.GRAY,TRIM1#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-30120G0

JZS147,UZS143

DK GREEN M,6K2

 1
69230-30120B0

JZS147,UZS143

SUPER SILVER 3 M,176

 1
69230-30120E1

JZS147,UZS143

BEIGE ME,4K9

 1
69230-30120C0

JZS147..Q

3.0Q ﾘﾐﾃﾂﾄﾞ,BLACK,F01

 1
69230-30120C0

JZS147,UZS143

BLACK,202

 1
69230-30120B1

JZS147,UZS143

DK.BL.GRAY ME,183

 1
69230-30120A0

JZS147,UZS143

WARM GRY P MC,046

 1
69230-30120A1

JZS147

3.0V ﾘﾐﾃﾂﾄﾞ*(A),*(B) OR 3.0Q ﾘﾐﾃﾂﾄﾞ*(A),*(B),SUPER WHITE PEARL MC,K15

 1
69230-30120E0

JZS147

MEDIUM BEIGE M,4H6

 1
69230-30120J1

JZS147,UZS143

DK.BLUE MC FP,8L1

 1
69230-30120G1

JZS147,UZS143

BLUEISH GREEN MIO,6M2

 1
69230-30120J0

JZS147,UZS143

DK.BLUE MICA FP,8J5

 1
69230-30120B2

JZS147

3.0V ﾘﾐﾃﾂﾄﾞ*(A),*(B) OR 3.0Q ﾘﾐﾃﾂﾄﾞ*(A),*(B),SILVER ME,K16

 1
69230-30120D0

JZS147,UZS143

DK.MAUVE M.I.0,3K8

 1
69230-30120B2

JZS147,UZS143

SILVER ME,199

 1
69230-30120G2

JZS147,UZS143

GRAYISH GREEN M.M.,6N0

 1
69230-30120G3

JZS147,UZS143

DK. GREEN MC.P.I.O.,6N9

 1
69230-30120A1

JZS147,UZS143

SUPER WHITE PEARL MC,051

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-30120B1

JZS147,UZS143

DK.BL.GRAY ME,183

 1
69240-30120D0

JZS147,UZS143

DK.MAUVE M.I.0,3K8

 1
69240-30120B2

JZS147,UZS143

SILVER ME,199

 1
69240-30120J0

JZS147,UZS143

DK.BLUE MICA FP,8J5

 1
69240-30120G1

JZS147,UZS143

BLUEISH GREEN MMIO,6M2

 1
69240-30120E1

JZS147,UZS143

BEIGE ME,4K9

 1
69240-30120G0

JZS147,UZS143

DK GREEN M,6K2

 1
69240-30120A0

JZS147,UZS143

WARM GRY P MC,046

 1
69240-30120A1

JZS147

3.0V ﾘﾐﾃﾂﾄﾞ*(A),*(B) OR 3.0Q ﾘﾐﾃﾂﾄﾞ*(A),*(B),SUPER WHITE PEARL MC,K15

 1
69240-30120C0

JZS147,UZS143

BLACK,202

 1
69240-30120C0

JZS147..Q

3.0Q ﾘﾐﾃﾂﾄﾞ,BLACK,F01

 1
69240-30120G2

JZS147,UZS143

GRAYISH GREEN M.M.,6N0

 1
69240-30120J1

JZS147,UZS143

DK.BLUE MC FP,8L1

 1
69240-30120A1

JZS147,UZS143

SUPER WHITE PEARL MC,051

 1
69240-30120G3

JZS147,UZS143

DK. GREEN MC.P.I.O.,6N9

 1
69240-30120E0

JZS147

MEDIUM BEIGE M,4H6

 1
69240-30120B2

JZS147

3.0V ﾘﾐﾃﾂﾄﾞ*(A),*(B) OR 3.0Q ﾘﾐﾃﾂﾄﾞ*(A),*(B),SILVER ME,K16

 1
69240-30120B0

JZS147,UZS143

SUPER SILVER 3 M,176

 1
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-30120B0

JZS147,UZS143

GRAY,TRIM1#

 1
69277-30120G0

JZS147,UZS143

LI.SPRUCE,TRIM6#

 1
69277-30120A0

JZS147,UZS143

IVORY,TRIM0#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-30050G0

JZS147,UZS143

LI.SPRUCE,TRIM6#

 1
69278-30050A0

JZS147,UZS143

IVORY,TRIM0#

 1
69278-30050B0

JZS147,UZS143

GRAY,TRIM1#

 1
69330 - LOCK ASSY, REAR DOOR, RH
69050-30370

JZS147,UZS143

 1
69050-30350

JZS147,UZS143

 1
69338 - KNOB, CHILD PROTECTOR LOCK LEVER
69338-30010

JZS147,UZS143

 2
69340 - LOCK ASSY, REAR DOOR, LH
69060-30390

JZS147,UZS143

 1
69060-30370

JZS147,UZS143

 1
69393A - COVER, REAR DOOR LOCK, OUTER RH
69393-30030

JZS147,UZS143

 1
69394 - COVER, REAR DOOR LOCK, OUTER LH
69394-30030

JZS147,UZS143

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-30040

JZS147,UZS143

 2
69410-30030

JZS147,UZS143

 2
69415C - COVER, DOOR LOCK STRIKER, REAR
69415-30010

JZS147,UZS143

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-30050

JZS147,UZS143

 1
69749-30050

JZS147,UZS143

 4
69759Y - SILENCER, REAR DOOR LOCK LINK
69759-30090

JZS147,UZS143

 2
Common parts
90148-60004
90148-60022
90159-40202
90159-60303
90189-06128
90901-48001
91651-40612
