NHP10H-AHXXB (2017)

Toyota Aqua

Production Jul 2017 - Sep 9999
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

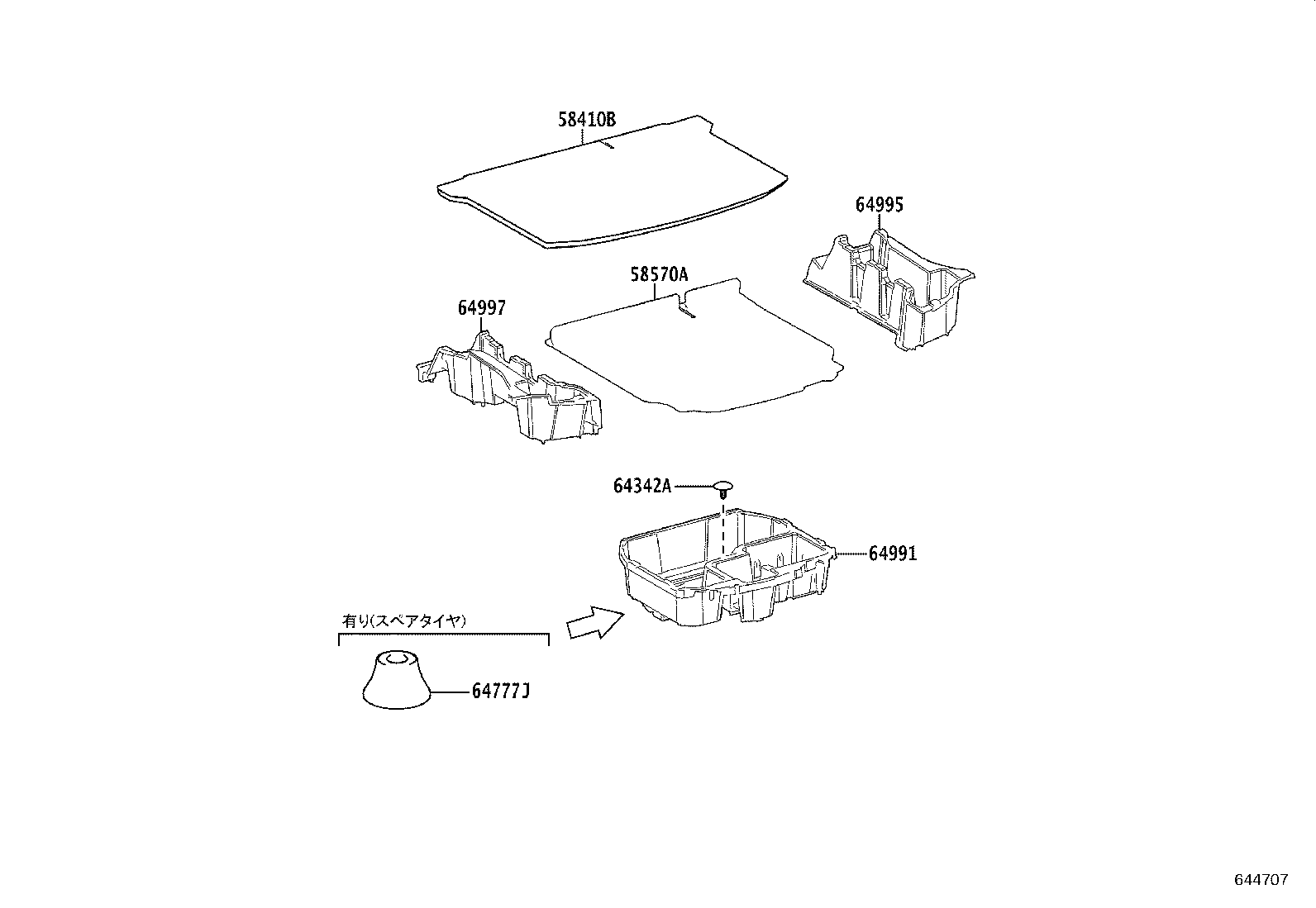

ILLUST NO. 3 OF 3(1907- )

Click highlighted areas on diagram

S"BUSINESS PACKAGE"*(I)

diagram 58410B 58570A 64342A 64777J 64991 64995 64997
Part # Description Qty Price
58410B - BOARD ASSY, DECK
58410-52130B1

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP)&ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,DARK GRAY/BLACK,TRIM43

 1
58410-52130B1

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP)&ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,DARK GRAY/BLACK,TRIM43

 1
58410-52130B1

NHP10..COVER

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP),DARK GRAY,TRIM0#,2#,4#

 1
58410-52180B0

NHP10..S

S“Business Package”*(I),DARK GRAY,TRIM2#,3#,8#

 1
58410-52180B0

NHP10..COVER,G

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM0#,2#,4#

 1
58410-52180B0

NHP10..S

S“Business Package”*(I)&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16),DARK GRAY,TRIM2#,3#,8#

 1
58410-52130B1

NHP10..COVER

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP),DARK GRAY,TRIM0#,2#,4#

 1
58410-52180B0

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM2#,3#,4#,8#

 1
58410-52180B0

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM2#,3#,4#,8#

 1
58410-52180B0

NHP10..COVER,G

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM0#,2#,4#

 1
58570A - MAT ASSY, REAR FLOOR
58570-52381B1

NHP10..S

ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,DARK GRAY,TRIM43

 1
58570-52500B0

NHP10..S

S“Business Package”*(I)&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16),DARK GRAY,TRIM2#,3#,8#

 1
58570-52500B0

NHP10..COVER,G

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM0#,2#,4#

 1
58570-52500B0

NHP10..S

S“Business Package”*(I),DARK GRAY,TRIM2#,3#,8#

 1
58570-52381B1

NHP10..COVER

DARK GRAY,TRIM0#,2#,4#

 1
58570-52500B0

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM2#,3#,4#,8#

 1
58570-52500B0

NHP10..COVER,G

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM0#,2#,4#

 1
58570-52500B0

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM2#,3#,4#,8#

 1
64777J - CUSHION, SPARE WHEEL
64777-52020

NHP10..S

S“Business Package”*(I)&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)

 1
64991 - BOX, DECK FLOOR, FRONT
64991-52050

NHP10..COVER,G,S

 1
64991-52050

NHP10..G,S

ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ｳｪﾙｷｬﾌﾞ用)

 1
64995 - BOX, DECK FLOOR, RH
64995-52100C0

NHP10..COVER

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP),BLACK,TRIM0#,2#,4#

 1
64995-52140C0

NHP10..S

S“Business Package”*(I),BLACK,TRIM2#

 1
64995-52100C0

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP)&ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,BLACK,TRIM43

 1
64995-52100C0

NHP10..COVER

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP),BLACK,TRIM0#,2#,4#

 1
64995-52140C0

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM2#,3#,4#,8#

 1
64995-52140C0

NHP10..COVER,G

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM0#,2#,4#

 1
64995-52140C0

NHP10..COVER,G

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM0#,2#,4#

 1
64995-52100C0

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP)&ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,BLACK,TRIM43

 1
64995-52140C0

NHP10..S

S“Business Package”*(I)&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16),BLACK,TRIM2#

 1
64995-52140C0

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM2#,3#,4#,8#

 1
64997 - BOX, DECK FLOOR, LH
64997-52070C0

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP)&ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,BLACK,TRIM43

 1
64997-52070C0

NHP10..COVER

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP),BLACK,TRIM0#,2#,4#

 1
64997-52070C0

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP)&ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,BLACK,TRIM43

 1
64997-52070C0

NHP10..COVER

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP),BLACK,TRIM0#,2#,4#

 1
64997-52170C0

NHP10..S

S“Business Package”*(I),BLACK,TRIM2#

 1
64997-52170C0

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM2#,3#,4#,8#

 1
64997-52170C0

NHP10..S

S“Business Package”*(I)&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16),BLACK,TRIM2#

 1
64997-52170C0

NHP10..COVER,G

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM0#,2#,4#

 1
64997-52170C0

NHP10..COVER,G

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM0#,2#,4#

 1
64997-52170C0

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM2#,3#,4#,8#

 1

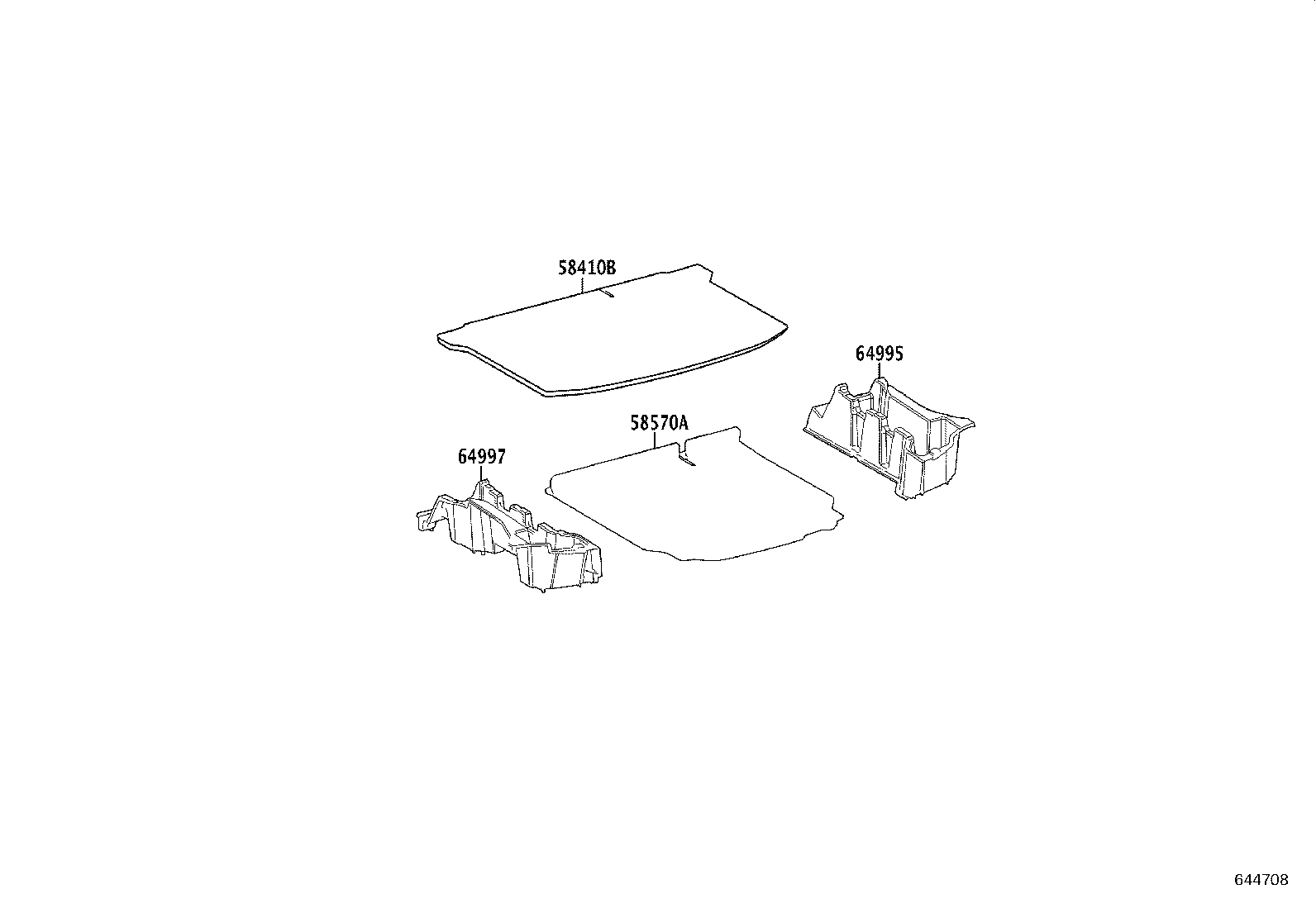

ILLUST NO. 3 OF 3(1907- )

Click highlighted areas on diagram

ﾃﾞｯｷﾎﾞｰﾄﾞ(DOP,ｱﾘ(ﾘﾔﾌﾛｱﾏｯﾄ)

diagram 58410B 58570A 64995 64997
Part # Description Qty Price
58410B - BOARD ASSY, DECK
58410-52130B1

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP)&ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,DARK GRAY/BLACK,TRIM43

 1
58410-52130B1

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP)&ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,DARK GRAY/BLACK,TRIM43

 1
58410-52130B1

NHP10..COVER

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP),DARK GRAY,TRIM0#,2#,4#

 1
58410-52180B0

NHP10..S

S“Business Package”*(I),DARK GRAY,TRIM2#,3#,8#

 1
58410-52180B0

NHP10..COVER,G

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM0#,2#,4#

 1
58410-52180B0

NHP10..S

S“Business Package”*(I)&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16),DARK GRAY,TRIM2#,3#,8#

 1
58410-52130B1

NHP10..COVER

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP),DARK GRAY,TRIM0#,2#,4#

 1
58410-52180B0

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM2#,3#,4#,8#

 1
58410-52180B0

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM2#,3#,4#,8#

 1
58410-52180B0

NHP10..COVER,G

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM0#,2#,4#

 1
58570A - MAT ASSY, REAR FLOOR
58570-52381B1

NHP10..S

ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,DARK GRAY,TRIM43

 1
58570-52500B0

NHP10..S

S“Business Package”*(I)&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16),DARK GRAY,TRIM2#,3#,8#

 1
58570-52500B0

NHP10..COVER,G

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM0#,2#,4#

 1
58570-52500B0

NHP10..S

S“Business Package”*(I),DARK GRAY,TRIM2#,3#,8#

 1
58570-52381B1

NHP10..COVER

DARK GRAY,TRIM0#,2#,4#

 1
58570-52500B0

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM2#,3#,4#,8#

 1
58570-52500B0

NHP10..COVER,G

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM0#,2#,4#

 1
58570-52500B0

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),DARK GRAY,TRIM2#,3#,4#,8#

 1
64995 - BOX, DECK FLOOR, RH
64995-52100C0

NHP10..COVER

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP),BLACK,TRIM0#,2#,4#

 1
64995-52140C0

NHP10..S

S“Business Package”*(I),BLACK,TRIM2#

 1
64995-52100C0

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP)&ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,BLACK,TRIM43

 1
64995-52100C0

NHP10..COVER

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP),BLACK,TRIM0#,2#,4#

 1
64995-52140C0

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM2#,3#,4#,8#

 1
64995-52140C0

NHP10..COVER,G

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM0#,2#,4#

 1
64995-52140C0

NHP10..COVER,G

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM0#,2#,4#

 1
64995-52100C0

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP)&ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,BLACK,TRIM43

 1
64995-52140C0

NHP10..S

S“Business Package”*(I)&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16),BLACK,TRIM2#

 1
64995-52140C0

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM2#,3#,4#,8#

 1
64997 - BOX, DECK FLOOR, LH
64997-52070C0

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP)&ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,BLACK,TRIM43

 1
64997-52070C0

NHP10..COVER

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP),BLACK,TRIM0#,2#,4#

 1
64997-52070C0

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP)&ﾓﾃﾞﾘｽﾀｺﾝﾌﾟﾘｰﾄ車架装用ﾍﾞｰｽ車,BLACK,TRIM43

 1
64997-52070C0

NHP10..COVER

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(DOP),BLACK,TRIM0#,2#,4#

 1
64997-52170C0

NHP10..S

S“Business Package”*(I),BLACK,TRIM2#

 1
64997-52170C0

NHP10..S

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM2#,3#,4#,8#

 1
64997-52170C0

NHP10..S

S“Business Package”*(I)&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16),BLACK,TRIM2#

 1
64997-52170C0

NHP10..COVER,G

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D16)&ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM0#,2#,4#

 1
64997-52170C0

NHP10..COVER,G

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM0#,2#,4#

 1
64997-52170C0

NHP10..S

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ﾌﾙﾌﾗｯﾄﾀｲﾌﾟ(DOP)),BLACK,TRIM2#,3#,4#,8#

 1
