NHP10-AHXNB (2011)
Toyota Aqua
Production
Dec 2011
-
Dec 2014
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

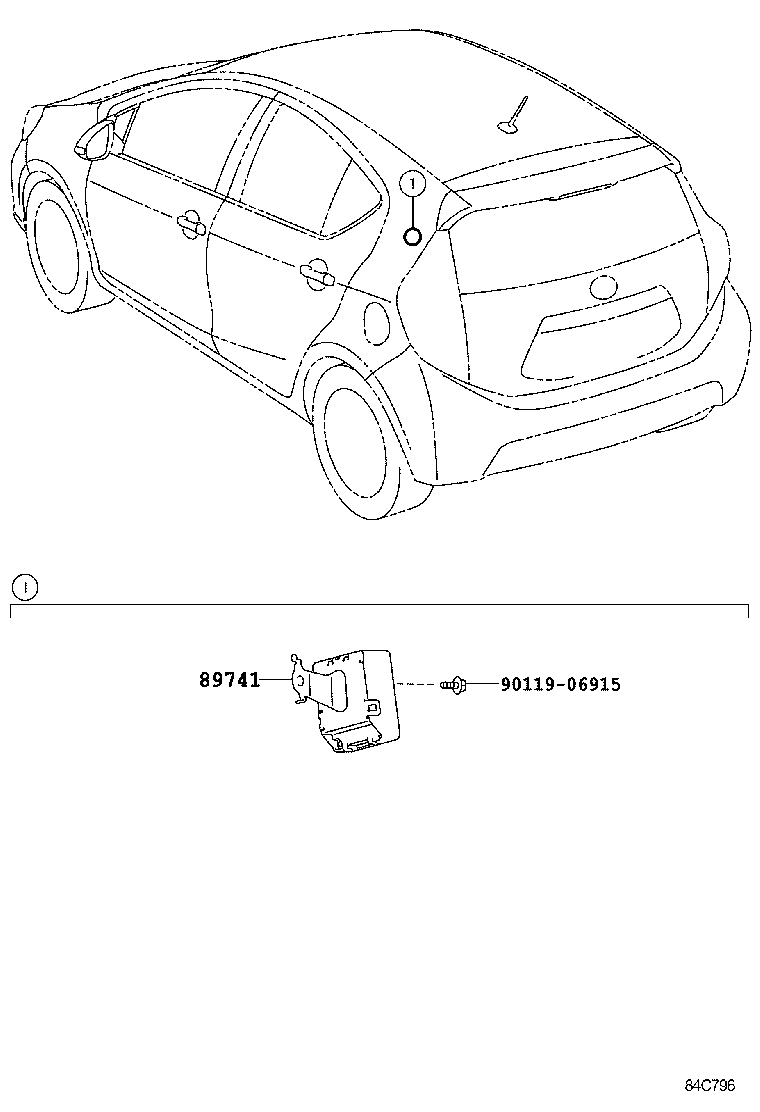

(1112- )
Click highlighted areas on diagram
ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-52220 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89741-52570 |
NHP10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

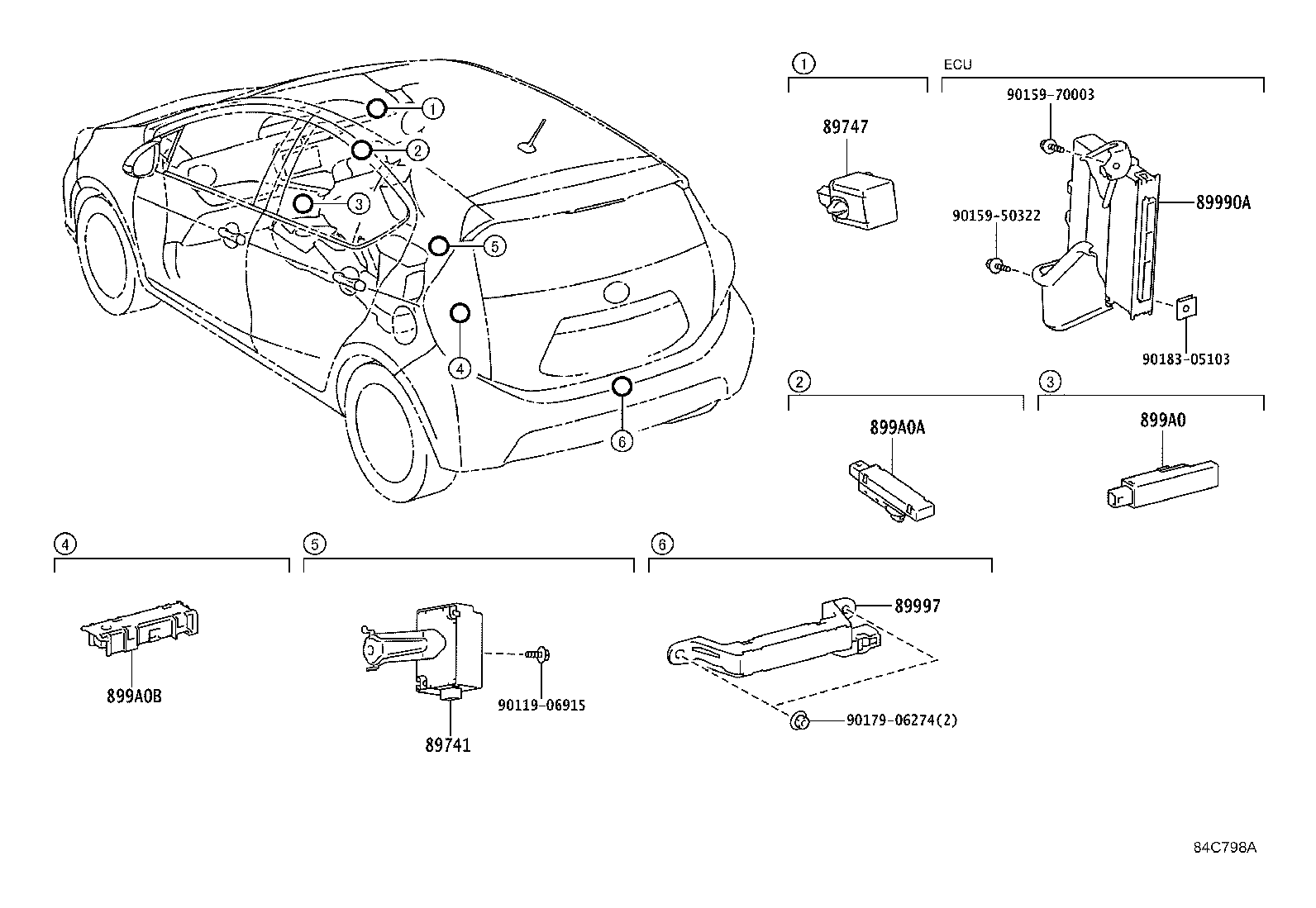

(1112- )
Click highlighted areas on diagram
ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-52220 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89741-52570 |
NHP10 |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-30040 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-52311 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89990-52312 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-30070 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-52120 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-47010 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 899A0-52070 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-50322 | ||||
| 90159-70003 | ||||
| 90179-06274 | ||||
| 90183-05103 | ||||
