NHP10-AHXNB (2011)

Toyota Aqua

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

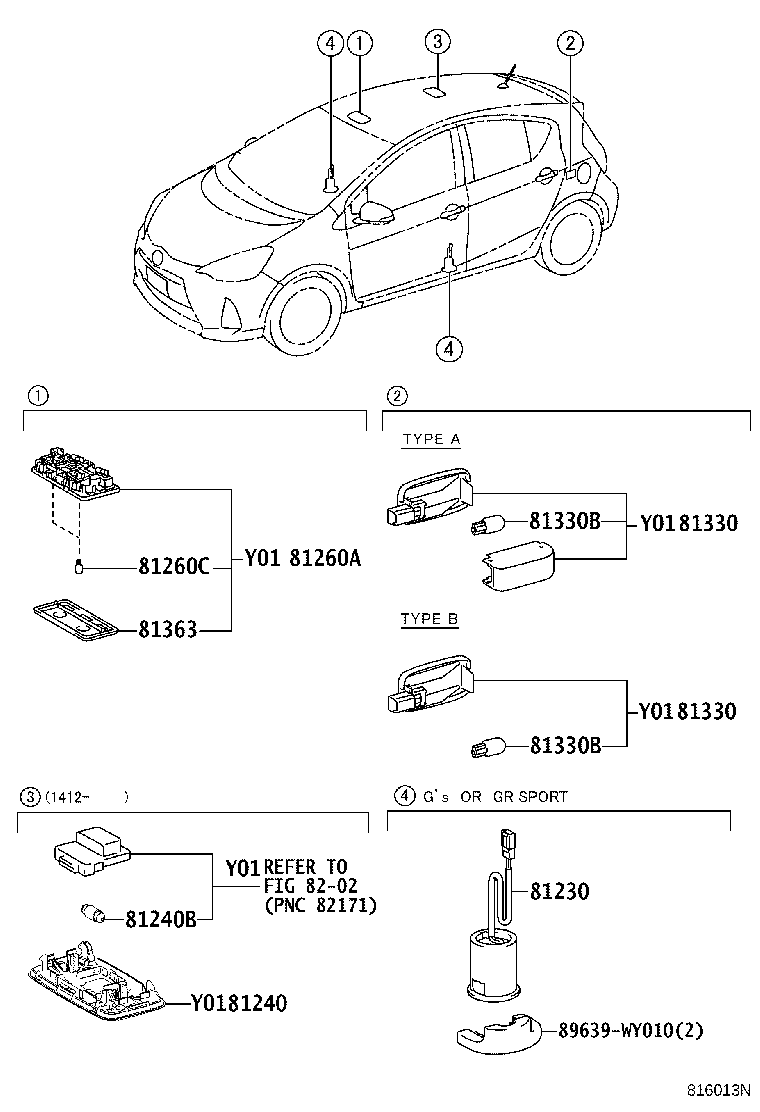

Click highlighted areas on diagram

diagram 81230 81240 81240B 81260A 81260C 81330 81330 81330B 81330B 81363 8202 89639WY010
Part # Description Qty Price
81260A - LAMP ASSY, MAP
81260-52120B0

NHP10

LT.GRAY,TRIM2#

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

NHP10

12V 5W

 2
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-33030

NHP10..G,S

TYPE A:ｲﾗｽﾄ参照

 1
81330-30100

NHP10..G,S

TYPE B:ｲﾗｽﾄ参照

 1
81250-30210

NHP10..G,S

TYPE A:ｲﾗｽﾄ参照

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-33030

NHP10..G,S

TYPE A:ｲﾗｽﾄ参照

 1
81330-30100

NHP10..G,S

TYPE B:ｲﾗｽﾄ参照

 1
81250-30210

NHP10..G,S

TYPE A:ｲﾗｽﾄ参照

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

NHP10..G,S

12V 5W

 1
90981-12010

NHP10..G,S

12V 5W

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

NHP10..G,S

12V 5W

 1
90981-12010

NHP10..G,S

12V 5W

 1
81363 - LENS, ROOM LAMP, OUTER
81363-52010

NHP10

 1
Common parts
89639-WY010
Linked diagrams
8202
