NHP10-AHXNB (2011)
Toyota Aqua
(1112-1412)

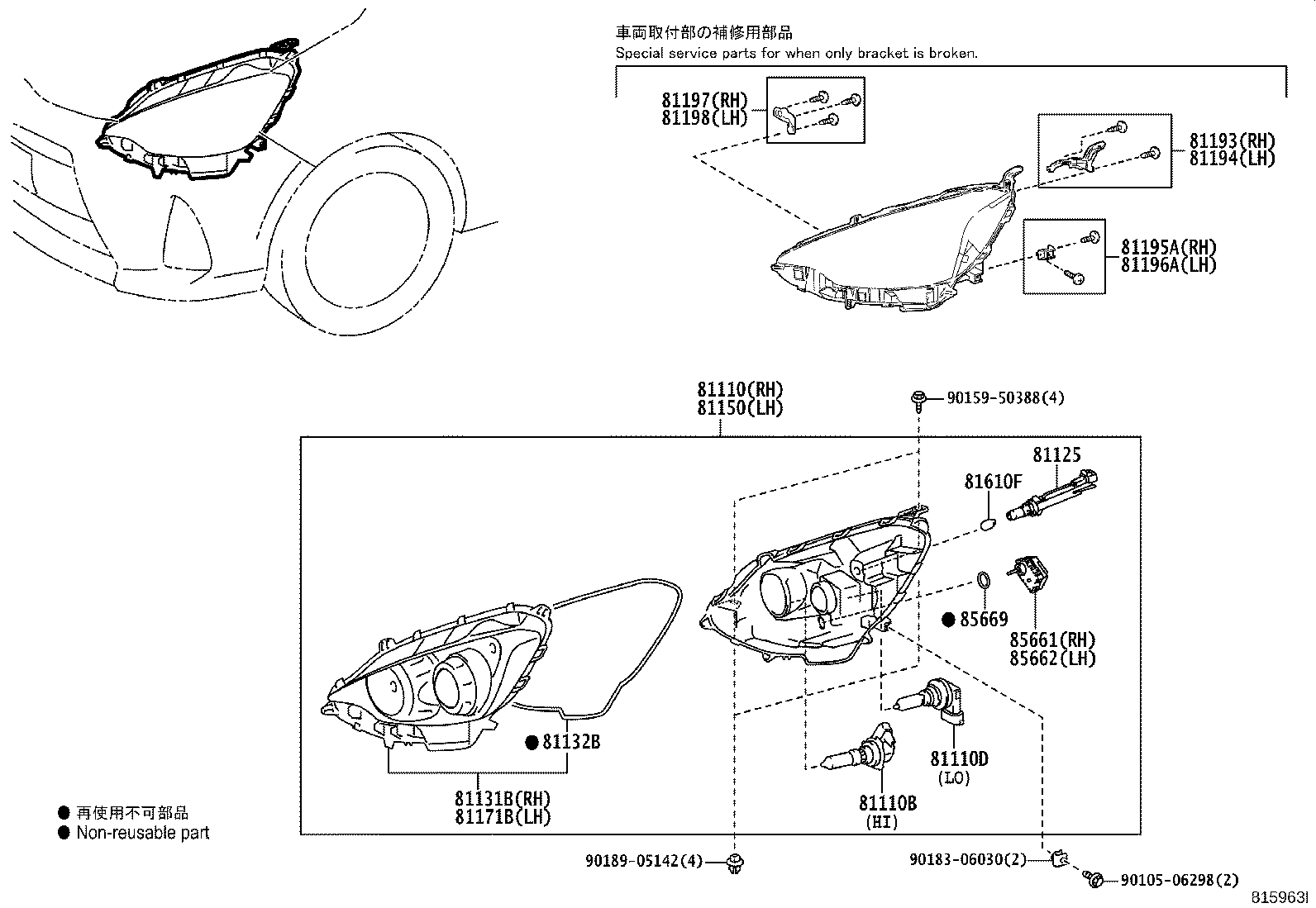

ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-52E60 |
NHP10 |
1 | ||
| 81110-52F80 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(ｴｸｽﾃﾝｼｮﾝ ｽﾓｰｸ) |
1 | ||
| 81110-52F81 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(ｴｸｽﾃﾝｼｮﾝ ｽﾓｰｸ) |
1 | ||
| 81110-52E61 |
NHP10 |
1 | ||
| 81110-52E90 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
NHP10 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 00000-00000 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED,該当品番なし |
1 | ||
| 90981-13075 |
NHP10 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-52E60 |
NHP10 |
2 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-52F80 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(ｴｸｽﾃﾝｼｮﾝ ｽﾓｰｸ) |
1 | ||
| 81131-52E60 |
NHP10 |
1 | ||
| 81131-52E90 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-50590 |
NHP10 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-52E90 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81150-52E61 |
NHP10 |
1 | ||
| 81150-52F81 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(ｴｸｽﾃﾝｼｮﾝ ｽﾓｰｸ) |
1 | ||
| 81150-52E60 |
NHP10 |
1 | ||
| 81150-52F80 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(ｴｸｽﾃﾝｼｮﾝ ｽﾓｰｸ) |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-52F80 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(ｴｸｽﾃﾝｼｮﾝ ｽﾓｰｸ) |
1 | ||
| 81171-52E90 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81171-52E60 |
NHP10 |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52150 |
NHP10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52150 |
NHP10 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52130 |
NHP10 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-52130 |
NHP10 |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-52040 |
NHP10 |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-52040 |
NHP10 |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
NHP10 12V 5W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
NHP10 |
1 | ||
| 85661-12020 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
NHP10 |
1 | ||
| 85661-12020 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
NHP10 |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50388 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||

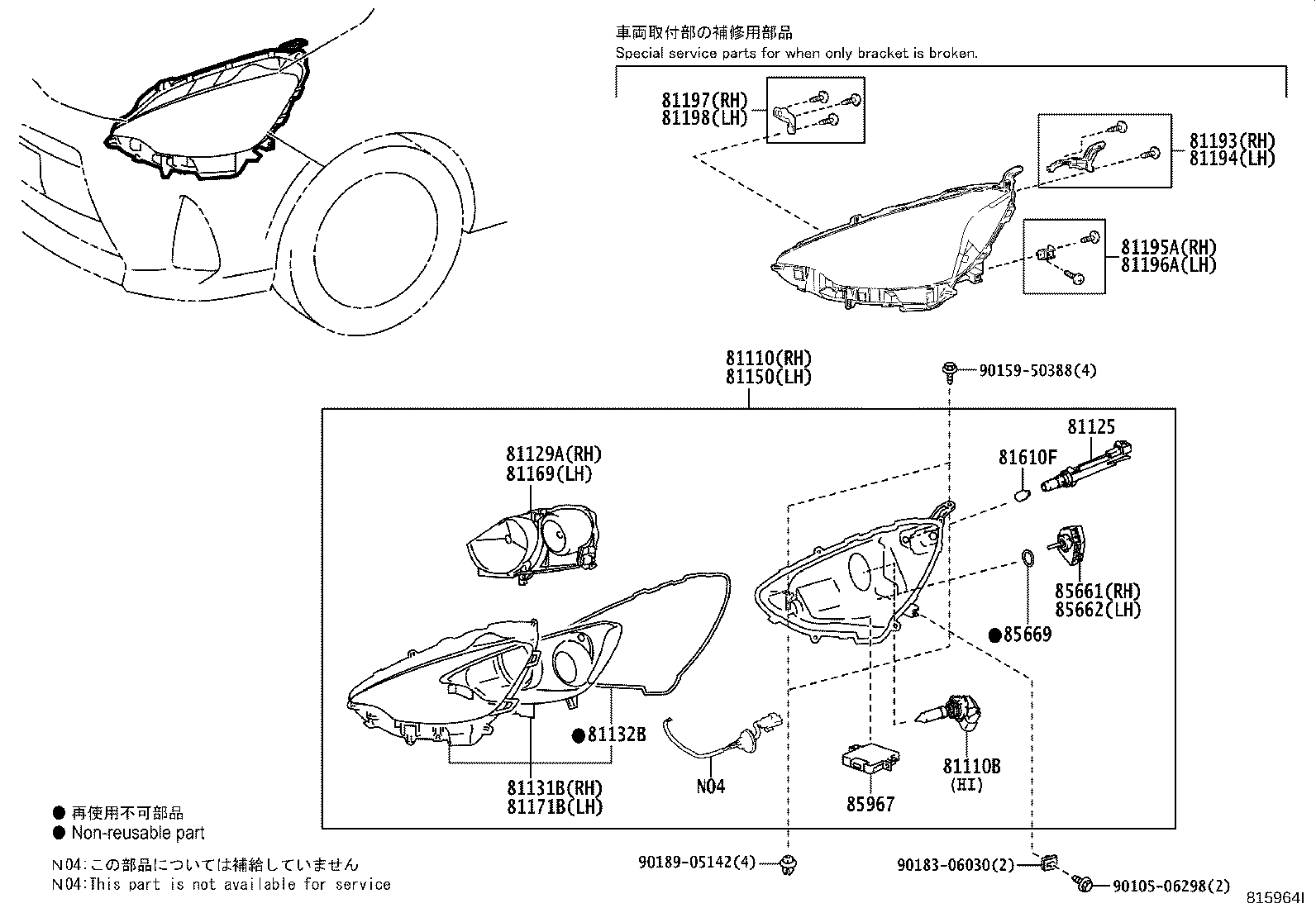

(1112-1412)G,S
LEDﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-52E60 |
NHP10 |
1 | ||
| 81110-52F80 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(ｴｸｽﾃﾝｼｮﾝ ｽﾓｰｸ) |
1 | ||
| 81110-52F81 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(ｴｸｽﾃﾝｼｮﾝ ｽﾓｰｸ) |
1 | ||
| 81110-52E61 |
NHP10 |
1 | ||
| 81110-52E90 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
NHP10 12V65W(SAE),60W(ECE) |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-52E60 |
NHP10 |
2 | ||
| 81129A - REFLECTOR, HEADLAMP, RH | ||||
| 81129-52E90 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-52F80 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(ｴｸｽﾃﾝｼｮﾝ ｽﾓｰｸ) |
1 | ||
| 81131-52E60 |
NHP10 |
1 | ||
| 81131-52E90 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-50590 |
NHP10 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-52E90 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81150-52E61 |
NHP10 |
1 | ||
| 81150-52F81 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(ｴｸｽﾃﾝｼｮﾝ ｽﾓｰｸ) |
1 | ||
| 81150-52E60 |
NHP10 |
1 | ||
| 81150-52F80 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(ｴｸｽﾃﾝｼｮﾝ ｽﾓｰｸ) |
1 | ||
| 81169 - REFLECTOR, HEADLAMP, LH | ||||
| 81169-52E90 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-52F80 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(ｴｸｽﾃﾝｼｮﾝ ｽﾓｰｸ) |
1 | ||
| 81171-52E90 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81171-52E60 |
NHP10 |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52150 |
NHP10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52150 |
NHP10 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52130 |
NHP10 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-52130 |
NHP10 |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-52040 |
NHP10 |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-52040 |
NHP10 |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
NHP10 12V 5W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
NHP10 |
1 | ||
| 85661-12020 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
NHP10 |
1 | ||
| 85661-12020 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
NHP10 |
2 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-30070 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50388 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
