NHP10-AHXNB (2011)
Toyota Aqua

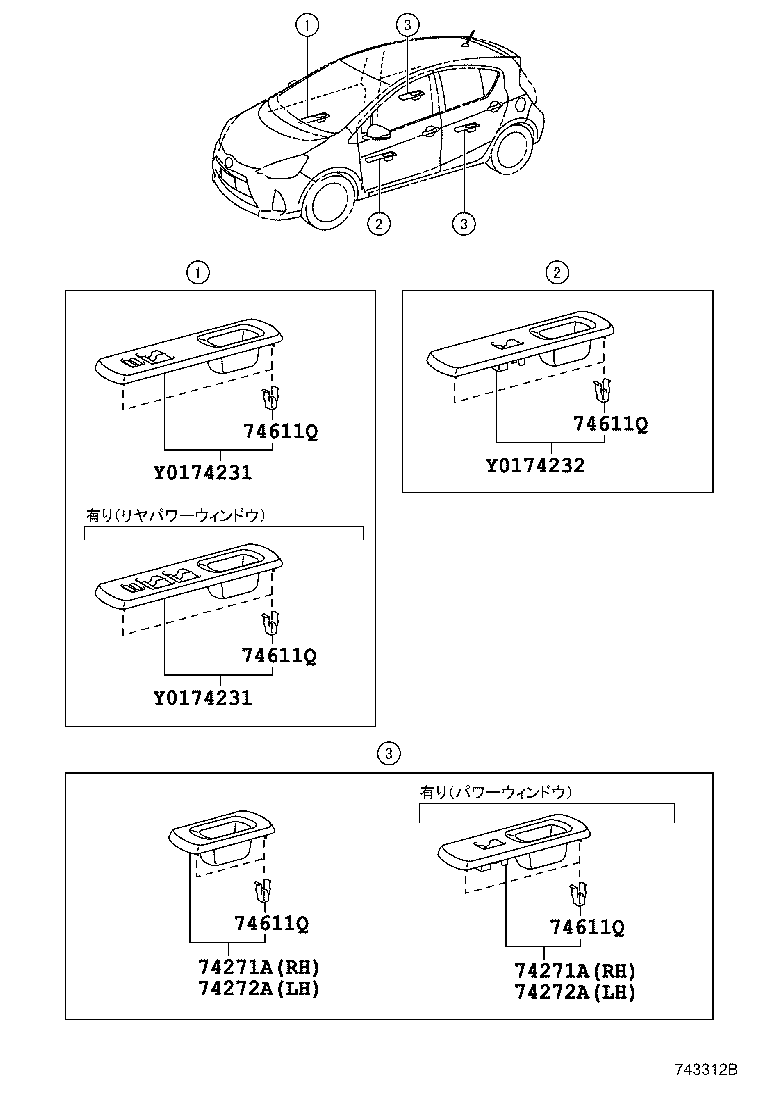

ILLUST NO. 1 OF 2(1112- )
ｱｰﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52750C3 |
NHP10..S BLACK/YELLOW GREEN,TRIM24 |
1 | ||
| 74231-52750C5 |
NHP10..S BLACK/H/V BLUE,TRIM22 |
1 | ||
| 74231-52750C4 |
NHP10..S BLCAK/LT.BLUE,TRIM28 |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52750C3 |
NHP10..S BLACK/YELLOW GREEN,TRIM24 |
1 | ||
| 74231-52750C5 |
NHP10..S BLACK/H/V BLUE,TRIM22 |
1 | ||
| 74231-52750C4 |
NHP10..S BLCAK/LT.BLUE,TRIM28 |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-52670C5 |
NHP10..S BLACK/LT.BLUE,TRIM28 |
1 | ||
| 74232-52670C4 |
NHP10..S BLACK/YELLOW GREEN,TRIM24 |
1 | ||
| 74232-52670C6 |
NHP10..S BLACK/H/V BLUE,TRIM22 |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-52310C0 |
NHP10..G,S BLACK,TRIM2# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-52310C0 |
NHP10..G,S BLACK,TRIM2# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-52300C0 |
NHP10..G,S BLACK,TRIM2# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-52300C0 |
NHP10..G,S BLACK,TRIM2# |
1 | ||
| 74611Q - CLIP | ||||
| 90467-10203 |
NHP10 |
8 | ||
| 90467-08227 |
NHP10 |
8 | ||
| 90467-12080 |
NHP10 |
8 | ||
| 74611Q - CLIP | ||||
| 90467-10203 |
NHP10 |
8 | ||
| 90467-08227 |
NHP10 |
8 | ||
| 90467-12080 |
NHP10 |
8 | ||
| 74611Q - CLIP | ||||
| 90467-10203 |
NHP10 |
8 | ||
| 90467-08227 |
NHP10 |
8 | ||
| 90467-12080 |
NHP10 |
8 | ||
| 74611Q - CLIP | ||||
| 90467-10203 |
NHP10 |
8 | ||
| 90467-08227 |
NHP10 |
8 | ||
| 90467-12080 |
NHP10 |
8 | ||
| 74611Q - CLIP | ||||
| 90467-10203 |
NHP10 |
8 | ||
| 90467-08227 |
NHP10 |
8 | ||
| 90467-12080 |
NHP10 |
8 | ||

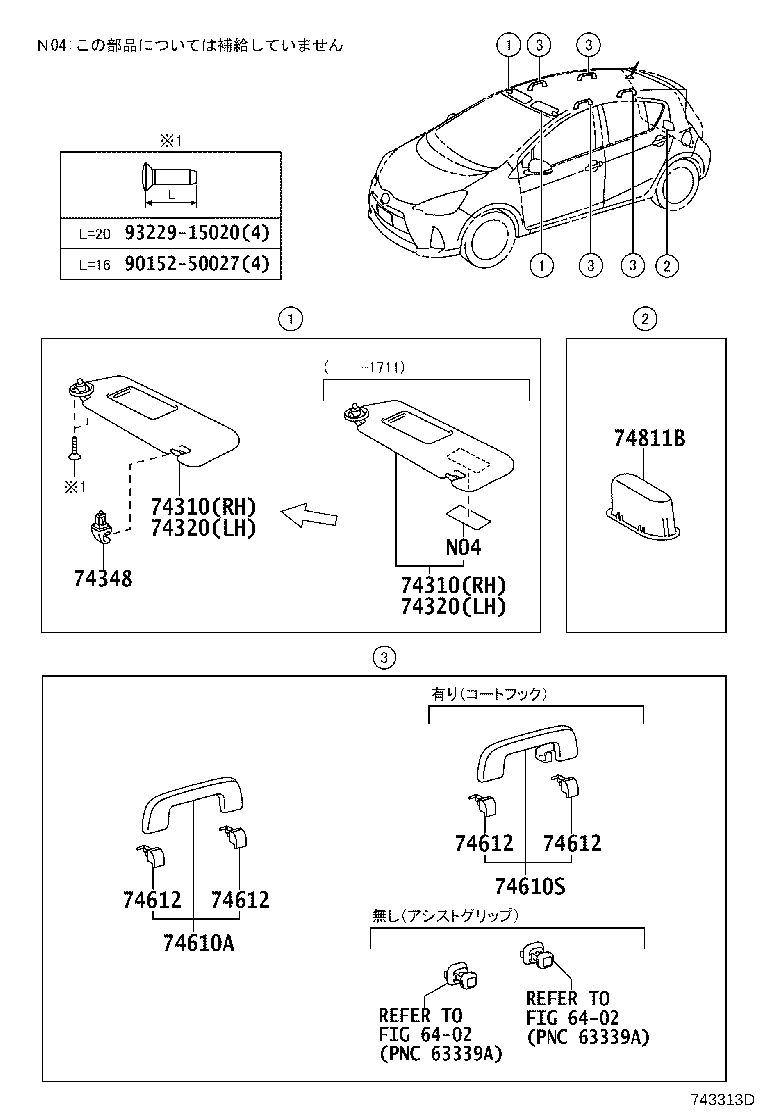

ILLUST NO. 2 OF 2(1112- )
ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-52B10B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-52B10B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-52B20B0 |
NHP10..G,S LT.GRAY,TRIM2# |
1 | ||
| 74320-52B10B0 |
NHP10..G,S LT.GRAY,TRIM2# |
1 | ||
| 74320-52B10B0 |
NHP10..G,S LT.GRAY,TRIM2# |
1 | ||
| 74320-52B10B0 |
NHP10..G,S 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り,LT.GRAY,TRIM2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-52B20B0 |
NHP10..G,S LT.GRAY,TRIM2# |
1 | ||
| 74320-52B10B0 |
NHP10..G,S LT.GRAY,TRIM2# |
1 | ||
| 74320-52B10B0 |
NHP10..G,S LT.GRAY,TRIM2# |
1 | ||
| 74320-52B10B0 |
NHP10..G,S 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り,LT.GRAY,TRIM2# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
NHP10 LT.GRAY,TRIM2# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52020B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2# |
2 | ||
| 74610-52020B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟU),LT.GRAY,TRIM2# |
2 | ||
| 74610-52020B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟT),LT.GRAY,TRIM2# |
2 | ||
| 74610-52020B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟU)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2# |
2 | ||
| 74610-52020B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟV)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2# |
2 | ||
| 74610-52020B1 |
NHP10..G,S LT.GRAY,TRIM2# |
3 | ||
| 74610-52020B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟW)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2# |
2 | ||
| 74610-52020B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟW),LT.GRAY,TRIM2# |
2 | ||
| 74610-52020B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟV),LT.GRAY,TRIM2# |
2 | ||
| 74610S - GRIP ASSY, ASSIST | ||||
| 74610-52030B1 |
NHP10..G,S LT.GRAY,TRIM2# |
1 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟV)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟU),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟT),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟV),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟW),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟU)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟW)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S LT.GRAY,TRIM2# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟV)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟU),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟT),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟV),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟW),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟU)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟW)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S LT.GRAY,TRIM2# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟV)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟU),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟT),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟV),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟW),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟU)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟW)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S LT.GRAY,TRIM2# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟV)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟU),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟT),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟV),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟW),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟU)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟW)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2# |
6 | ||
| 74612-52030B1 |
NHP10..G,S LT.GRAY,TRIM2# |
8 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 74811-13010C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90152-50027 | ||||
| 93229-15020 | ||||
| Linked diagrams | ||||
| 6402 | ||||
