NHP10-AHXNB (2011)

Toyota Aqua

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

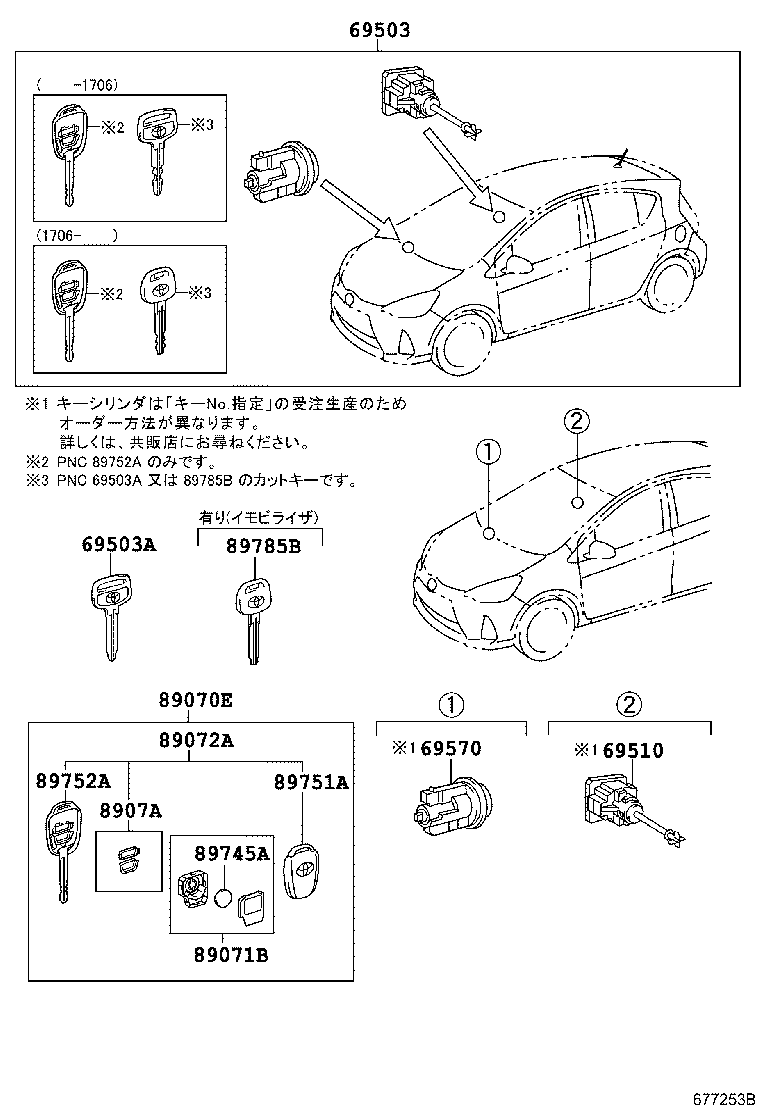

Click highlighted areas on diagram

ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 69503 69503A 69510 69570 89070E 89071B 89072A 8907A 89745A 89751A 89752A 89785B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-52M50

NHP10

 1
69005-52M60

NHP10..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
69503A - KEY, BLANK
00000-00000

NHP10..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),該当品番なし

 1
90999-00186

NHP10

ﾏｽﾀｰｷｰ

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
00000-00000

NHP10..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),該当品番なし

 1
69510-52310

NHP10

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
00000-00000

NHP10..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),該当品番なし

 1
69570-52080

NHP10

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-52C50

NHP10

 1
89070-52C50

NHP10..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
00000-00000

NHP10..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-52240

NHP10

 1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-52540

NHP10

 1
8907A - SWITCH SET, TRANSMITTER
8907A-52010

NHP10

 1
89745A - BATTERY, TRANSMITTER
89745-71010

NHP10

CR2016

 1
89751A - COVER, TRANSMITTER HOUSING
89751-52130

NHP10

 1
89752A - CASE, TRANSMITTER HOUSING
89752-52070

NHP10

 1

(1112- )

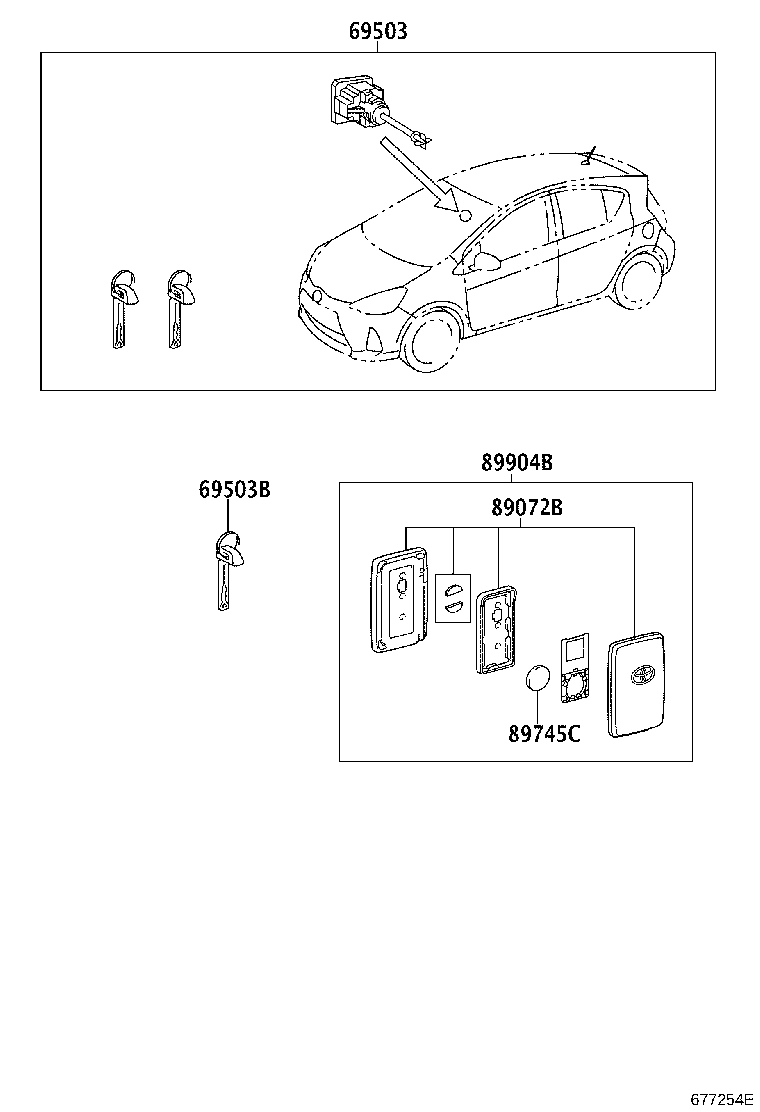

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 69503 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-52M50

NHP10

 1
69005-52M60

NHP10..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
69503B - KEY, CUT
69515-52110

NHP10..G,S

ﾏｽﾀｰｷｰ,W(*68),ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-47150

NHP10..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 2
89745C - BATTERY, TRANSMITTER
89745-52020

NHP10..G,S

CR1632,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-47170

NHP10..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 2
