NHP10-AHXNB (2011)

Toyota Aqua

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

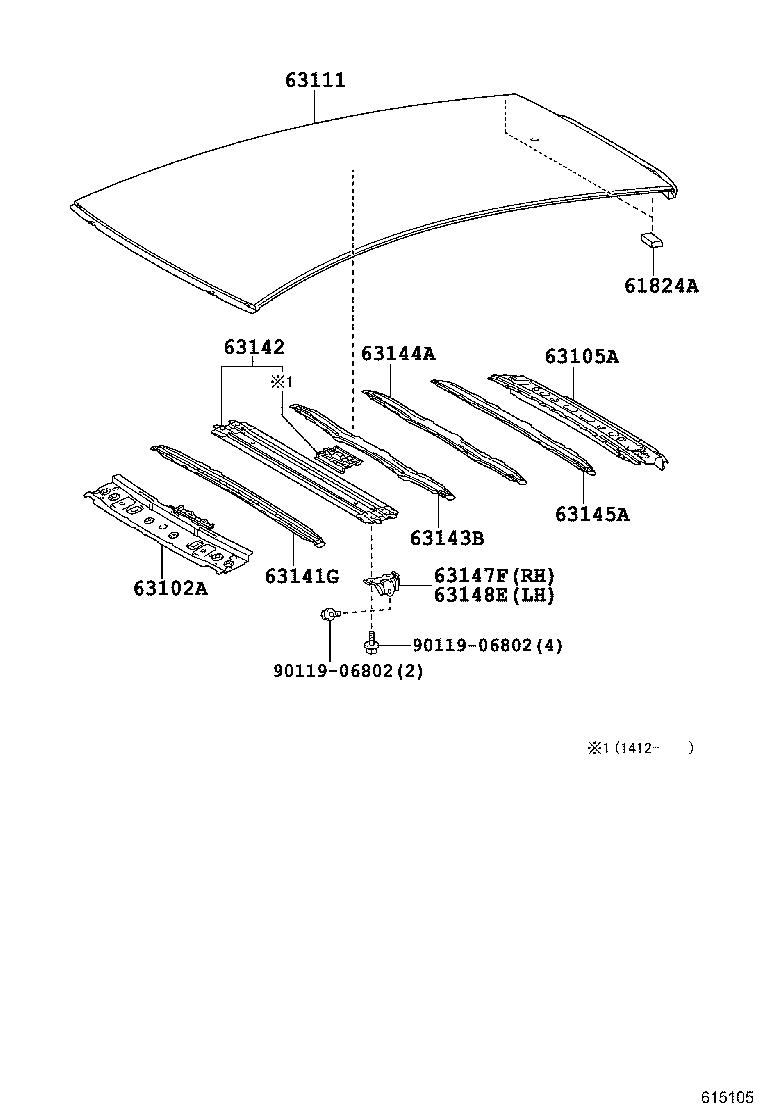

Click highlighted areas on diagram

ﾙｰﾌﾊﾟﾈﾙ

diagram 61824A 63102A 63105A 63111 63141G 63142 63143B 63144A 63145A 63147F 63148E 9011906802 9011906802
Part # Description Qty Price
61824A - PLATE, NOISE CONTROL, NO.1
62151-20160

NHP10

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-52190

NHP10

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-52170

NHP10

 1
63111 - PANEL, ROOF
63111-52390

NHP10

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63143-52180

NHP10

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63103-52110

NHP10

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63144-52140

NHP10

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63145-52060

NHP10

 1
63145A - REINFORCEMENT, ROOF PANEL, NO.5
63146-52050

NHP10

 1
63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH
63147-52100

NHP10

 1
63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH
63147-52100

NHP10

 1
Common parts
90119-06802
