NHP10-AHXNB (2017)
Toyota Aqua
Production
Jun 2017
-
Sep 9999
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1112-1907)

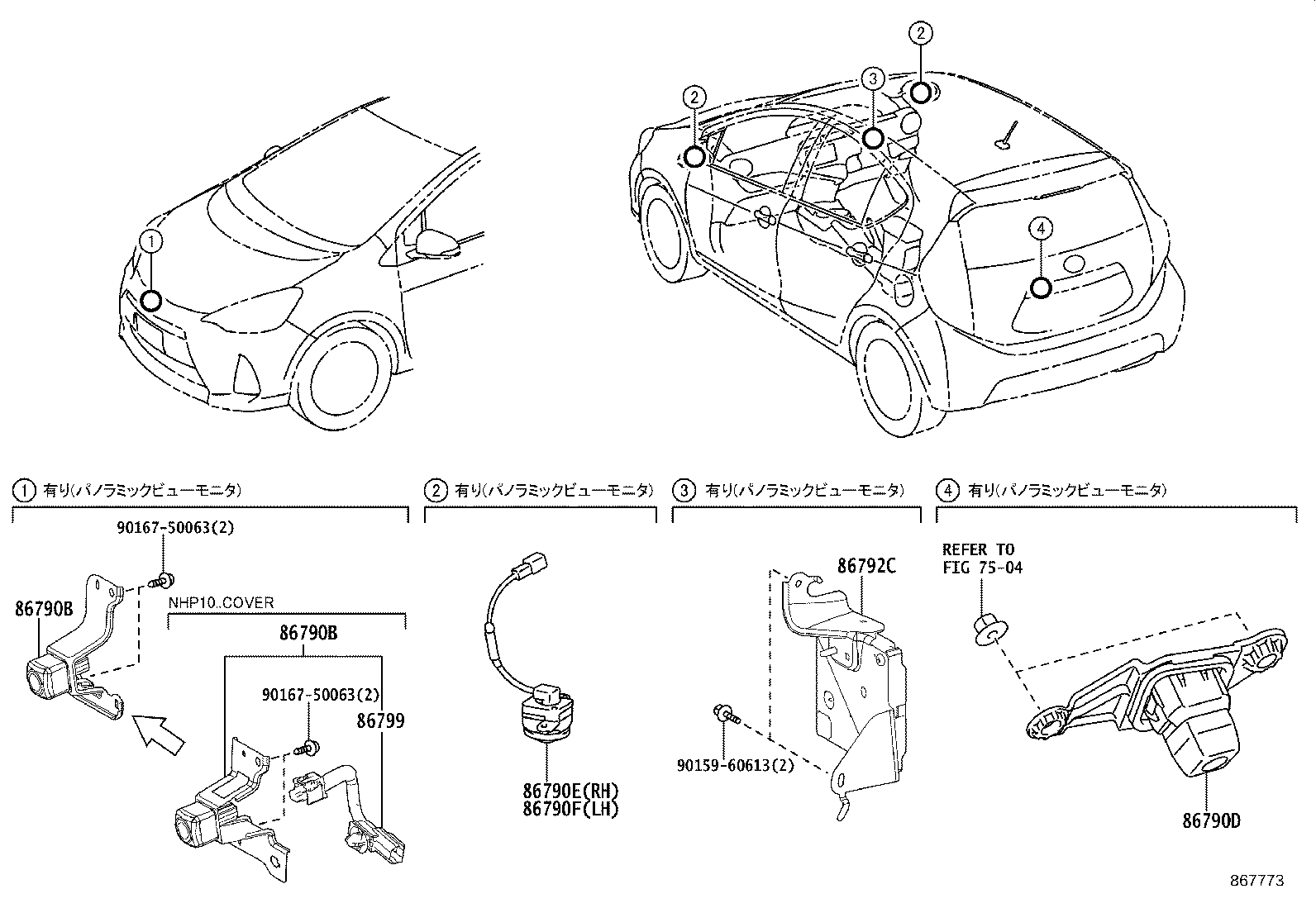

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 86790-52210 |
NHP10 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 86790-52210 |
NHP10 ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 86790-52210 |
NHP10..COVER,G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ) |
1 | ||
| Linked diagrams | ||||
| 7504 | ||||
(1907- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86790B - CAMERA ASSY, TELEVISION, FR | ||||
| 86790-52310 |
NHP10..G,L,S ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 86790B - CAMERA ASSY, TELEVISION, FR | ||||
| 86790-52310 |
NHP10..G,L,S ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 86790-52210 |
NHP10 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 86790-52210 |
NHP10 ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 86790-52210 |
NHP10..COVER,G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ) |
1 | ||
| 86790E - CAMERA ASSY, TELEVISION, SIDE RH | ||||
| 86790-52270 |
NHP10 ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 86790F - CAMERA ASSY, TELEVISION, SIDE LH | ||||
| 86790-52260 |
NHP10 ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 86792C - COMPUTER, PARKING ASSIST | ||||
| 86792-52140 |
NHP10..G,L,S ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 86792-52141 |
NHP10..G,L,S ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| Common parts | ||||
| 90159-60613 | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 7504 | ||||
