NHP10-AHXNB (2014)

Toyota Aqua

Production Dec 2014 - Jun 2017
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

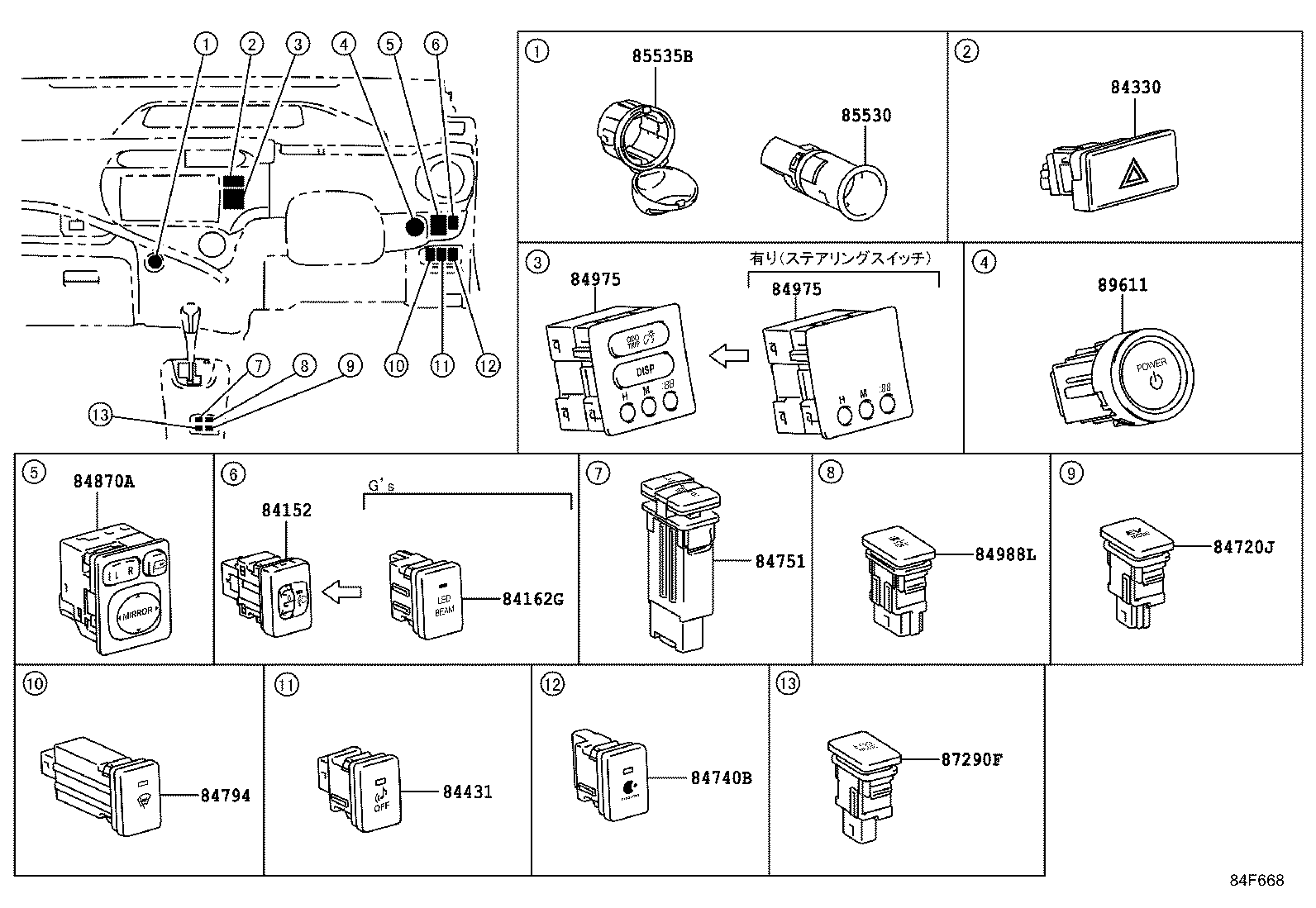

ILLUST NO. 5 OF 8(1412-1511)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

diagram 84152 84162G 84330 84431 84720J 84740B 84751 84794 84870A 84975 84975 84988L 85530 85535B 87290F 89611
Part # Description Qty Price
84152 - SWITCH, HEADLAMP LEVELING
84152-52101

NHP10

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-52091

NHP10

 1
84332-52090

NHP10

 1
84431 - SWITCH, VEHICLE APPROACHING SPEAKER
84431-76011

NHP10

 1
84431-76010

NHP10

 1
84720J - SWITCH ASSY, PATTERN SELECT
84720-33081

NHP10

 1
84740B - SWITCH ASSY, AIR PURIFIER
84741-52011

NHP10..G,S,XRBN

除菌ｲｵﾝ & ﾏｲﾅｽｲｵﾝ発生装置−有り

 1
84741-52010

NHP10..G,S,XRBN

除菌ｲｵﾝ & ﾏｲﾅｽｲｵﾝ発生装置−有り

 1
84751 - SWITCH, SEAT HEATER
84751-52030

NHP10..G,S,XRBN

ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席)

 1
84751-52031

NHP10..G,S,XRBN

ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席)

 1
84794 - SWITCH, FR WIPER DEICER
84794-52011

NHP10

寒冷地仕様

 1
84794-52010

NHP10

寒冷地仕様

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-52111

NHP10

 1
84975 - SWITCH, TRIP
84975-52310

NHP10..G,S,XRBN

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ)

 1
84975-52320

NHP10..G,S,XRBN

 1
84975 - SWITCH, TRIP
84975-52310

NHP10..G,S,XRBN

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ)

 1
84975-52320

NHP10..G,S,XRBN

 1
84988L - SWITCH, VSC OFF
84988-48071

NHP10

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-52010

NHP10

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-52052

NHP10

 1
87290F - SWITCH ASSY, ECO
87290-33061

NHP10

 1
89611 - SWITCH, PUSH START
89611-33022

NHP10..G,S,XRBN

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89611-33021

NHP10..G,S,XRBN

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89611-33023

NHP10..G,S,XRBN

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1

ILLUST NO. 5 OF 8(1511- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

diagram 84152 84153 84162G 84330 84330 84740B 84751 84794 84870A 84970 84970E 84970F 84975 84975 84988L 85530 85535B 89611
Part # Description Qty Price
84152 - SWITCH, HEADLAMP LEVELING
84152-52101

NHP10

 1
84153 - SWITCH, AUTO HIGH BEAM
84153-52010

NHP10..L,S

Toyota Safety Sense−有り

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-52091

NHP10

 1
84332-52090

NHP10

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-52091

NHP10

 1
84332-52090

NHP10

 1
84740B - SWITCH ASSY, AIR PURIFIER
84741-52011

NHP10..G,S,XRBN

除菌ｲｵﾝ & ﾏｲﾅｽｲｵﾝ発生装置−有り

 1
84741-52010

NHP10..G,S,XRBN

除菌ｲｵﾝ & ﾏｲﾅｽｲｵﾝ発生装置−有り

 1
84751 - SWITCH, SEAT HEATER
84751-52030

NHP10..G,S,XRBN

ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席)

 1
84751-52031

NHP10..G,S,XRBN

ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席)

 1
84794 - SWITCH, FR WIPER DEICER
84794-52011

NHP10

寒冷地仕様

 1
84794-52010

NHP10

寒冷地仕様

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-52111

NHP10

 1
84970 - SWITCH ASSY, COMBINATION
84970-52060

NHP10..L,S

Toyota Safety Sense−有り

 1
84970E - SWITCH ASSY, COMBINATION NO.2
84970-52070

NHP10

 1
84970F - SWITCH ASSY, COMBINATION, NO.3
84970-52080

NHP10

 1
84975 - SWITCH, TRIP
84975-52310

NHP10..G,S,XRBN

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ)

 1
84975-52320

NHP10..G,S,XRBN

 1
84975 - SWITCH, TRIP
84975-52310

NHP10..G,S,XRBN

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ)

 1
84975-52320

NHP10..G,S,XRBN

 1
84988L - SWITCH, VSC OFF
84988-48071

NHP10

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-52010

NHP10

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-52052

NHP10

 1
89611 - SWITCH, PUSH START
89611-33022

NHP10..G,S,XRBN

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89611-33021

NHP10..G,S,XRBN

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89611-33023

NHP10..G,S,XRBN

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1

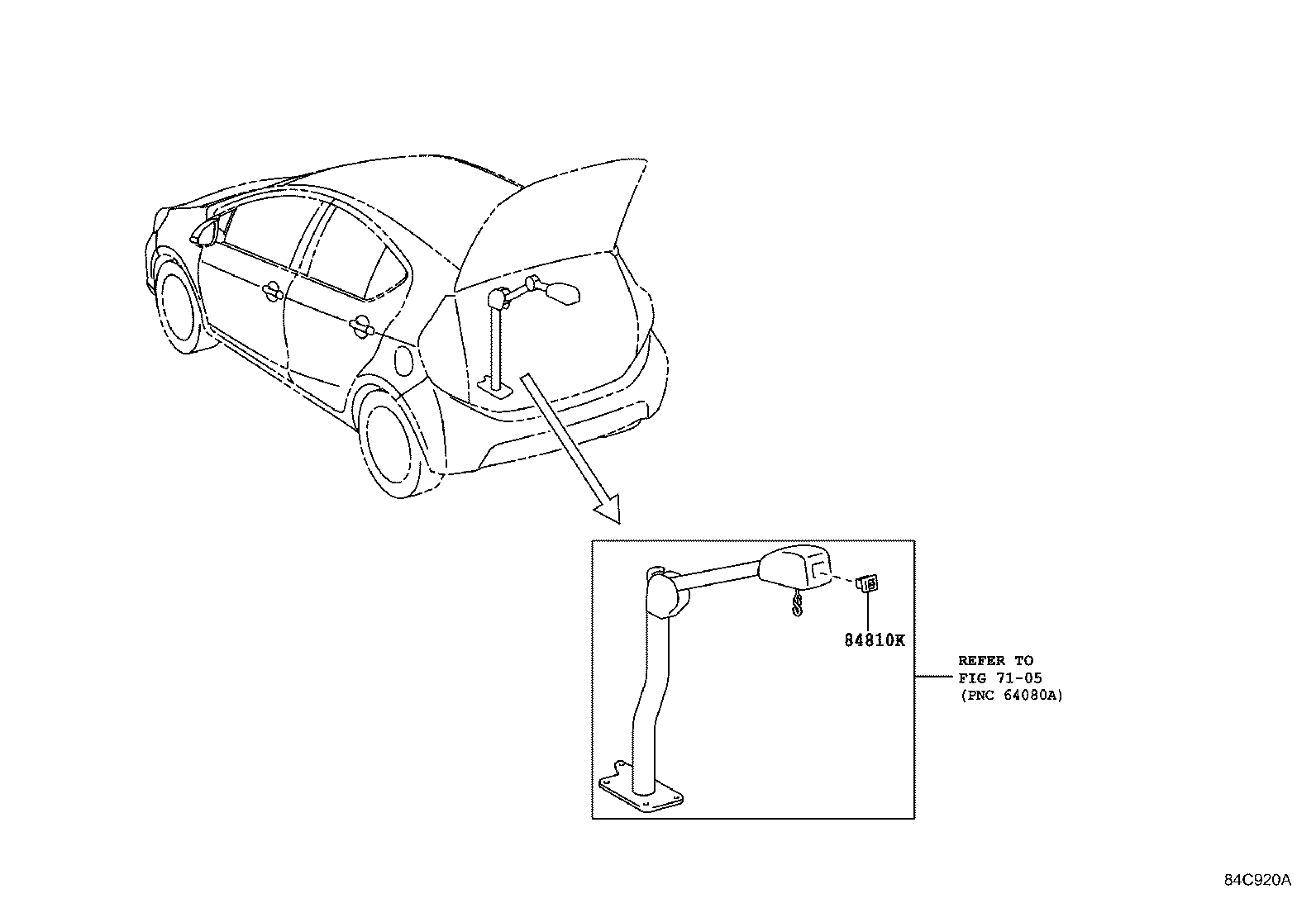

ILLUST NO. 8 OF 8(1412- )G,S

Click highlighted areas on diagram

ｸﾙﾏｲｽﾖｳ ｼｭｳﾉｳｿｳﾁ

diagram 7105 84810K
Part # Description Qty Price
84810K - SWITCH, CHAIR LIFT ARM
84810-3206022

NHP10..G,S

ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ),BLACK

 1
Linked diagrams
7105
