NHP10-AHXEB (2011)
Toyota Aqua
Production
Dec 2011
-
Dec 2014
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )

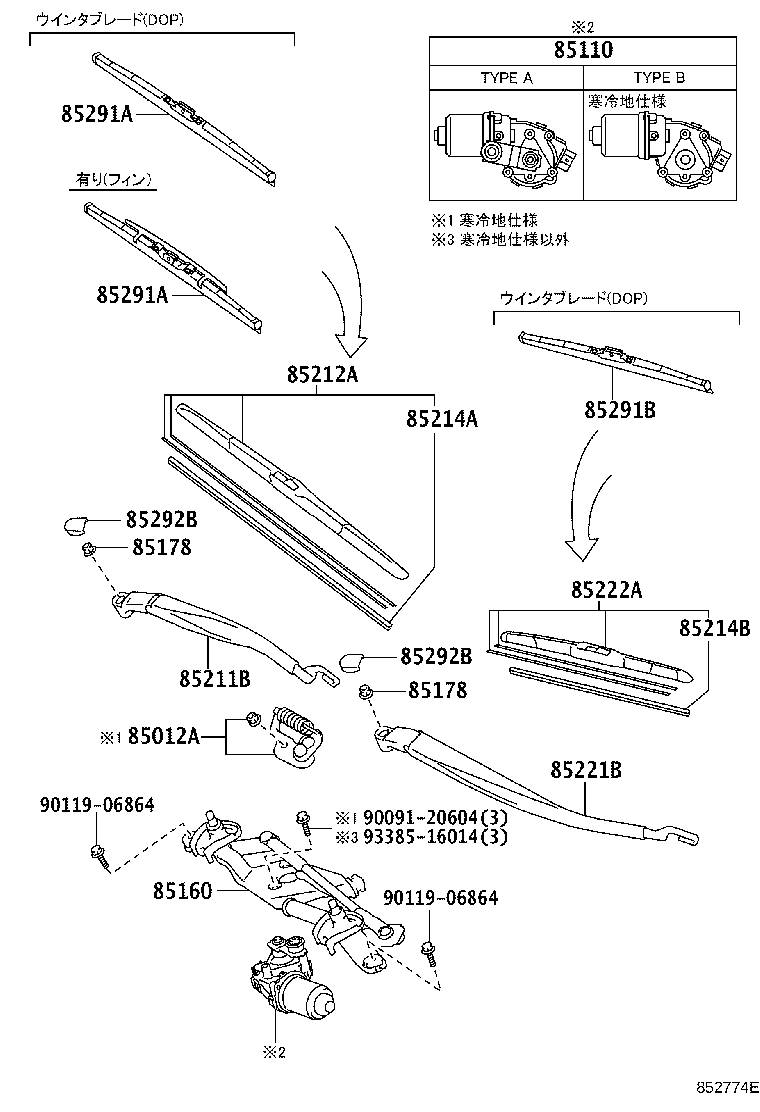

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85012A - CRANK SUB-ASSY, FRONT WIPER | ||||
| 85012-58030 |
NHP10 寒冷地仕様 |
1 | ||
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-52660 |
NHP10 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 85110-52670 |
NHP10 寒冷地仕様,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-52640 |
NHP10 寒冷地仕様 |
1 | ||
| 85150-52600 |
NHP10 |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-10006 |
NHP10 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-10006 |
NHP10 |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-52410 |
NHP10 |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-52210 |
NHP10 |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-52110 |
NHP10 |
1 | ||
| 85214-68020 |
NHP10 |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-68030 |
NHP10 |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-52400 |
NHP10 |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-52220 |
NHP10 |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-47050 |
NHP10 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291-47040 |
NHP10 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-47050 |
NHP10 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291-47040 |
NHP10 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291B - BLADE, FRONT WIPER, WINTER, LH | ||||
| 85291-28120 |
NHP10 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
NHP10 |
2 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
NHP10 |
2 | ||
| Common parts | ||||
| 90091-20604 | ||||
| 90119-06864 | ||||
| 93385-16014 | ||||
